Discontinued

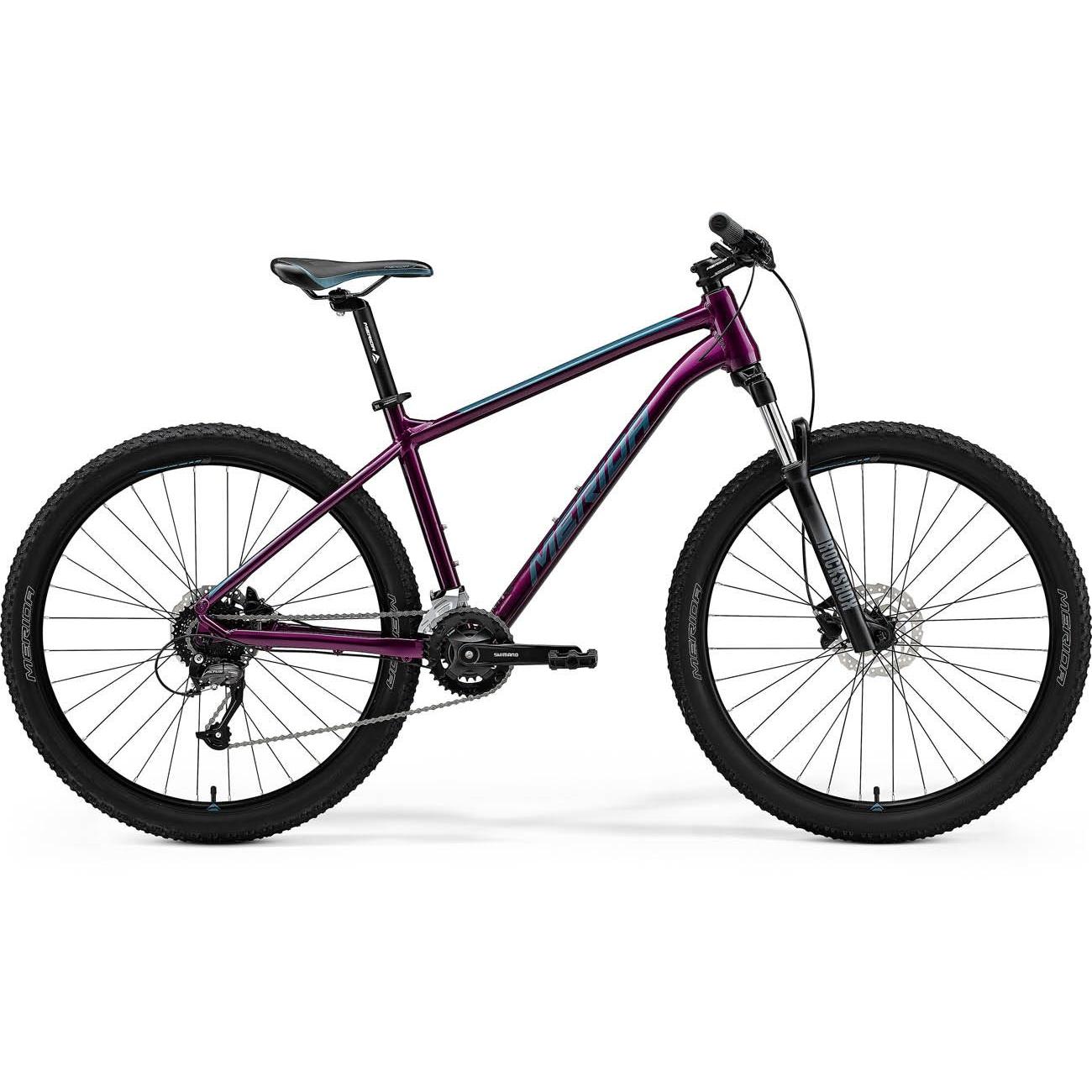

Merida Big Seven 60 Mountain Bike Purple Teal/Blue

Merida Big Seven 60 Mountain Bike Purple Teal/Blue

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Fork

100mm Front Travel

27.5" (650b) Wheel Size

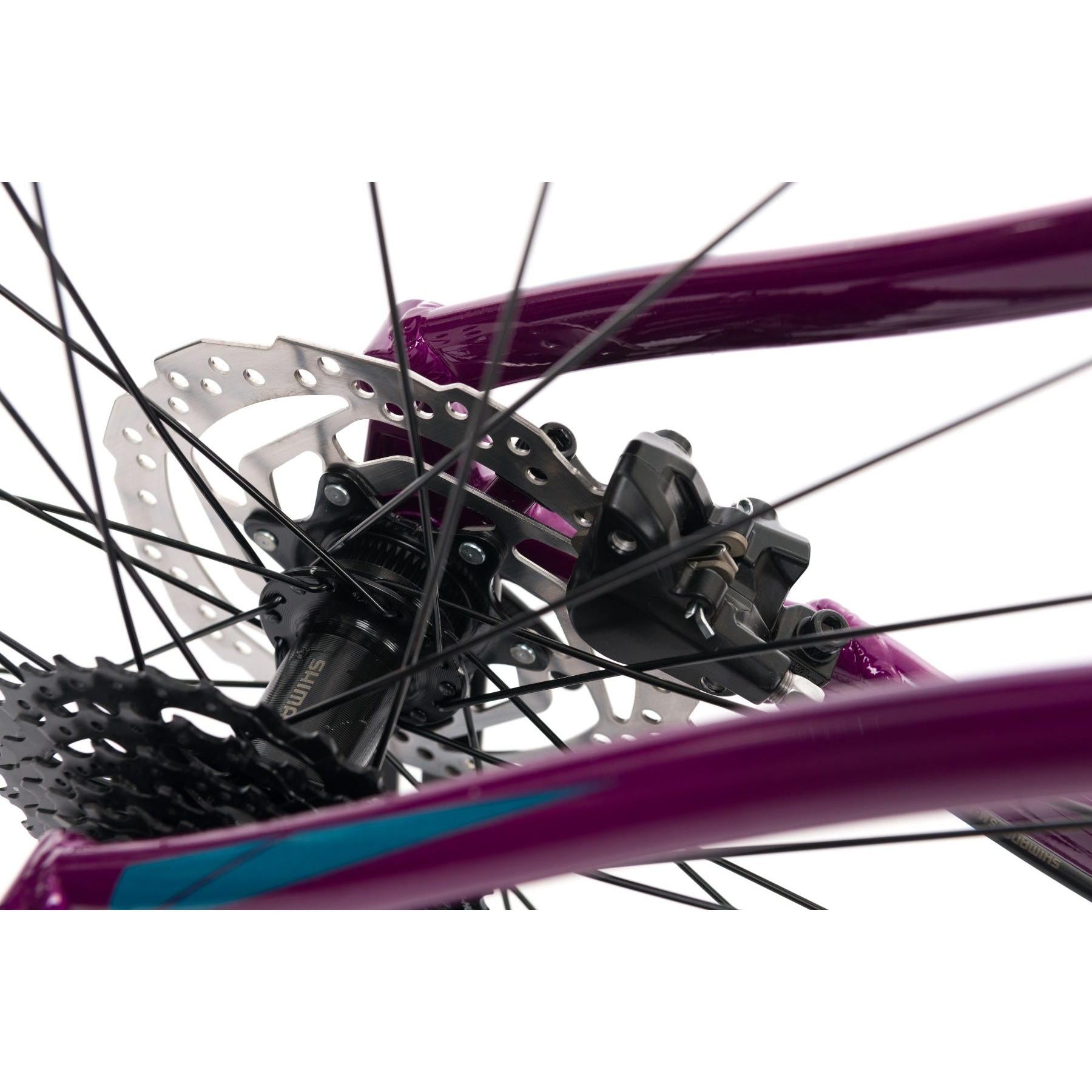

Hydraulic Disc Brake

Shimano Mixed Groupset

2 x 9 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

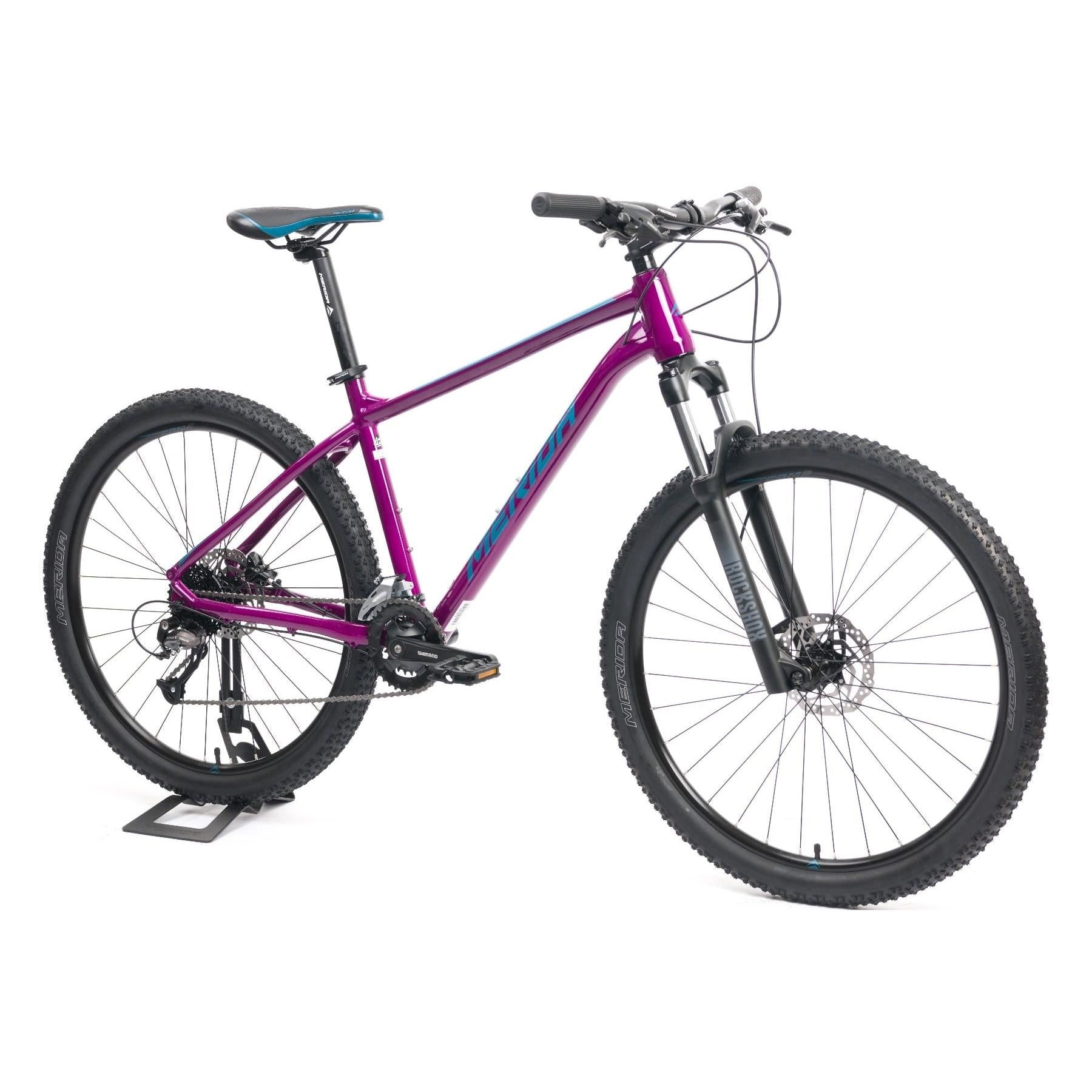

The Merida Big Seven 60 Hardtail Mountain Bike features a lightweight Big Seven Alloy frame with internally routed cables for reduced maintenance and a clean look. It is equipped with a 2x9 speed Shimano Drivetrain, providing smooth efficiency and reliable gear changes for challenging climbs. The RockShox Judy TK Fork offers 100mm travel with lockout, striking a balance between handling rough terrain and maintaining agility for an adventurous ride.

Key Features

Rock Shox Judy TK Fork with Lockout 100mm Travel
Alloy frame

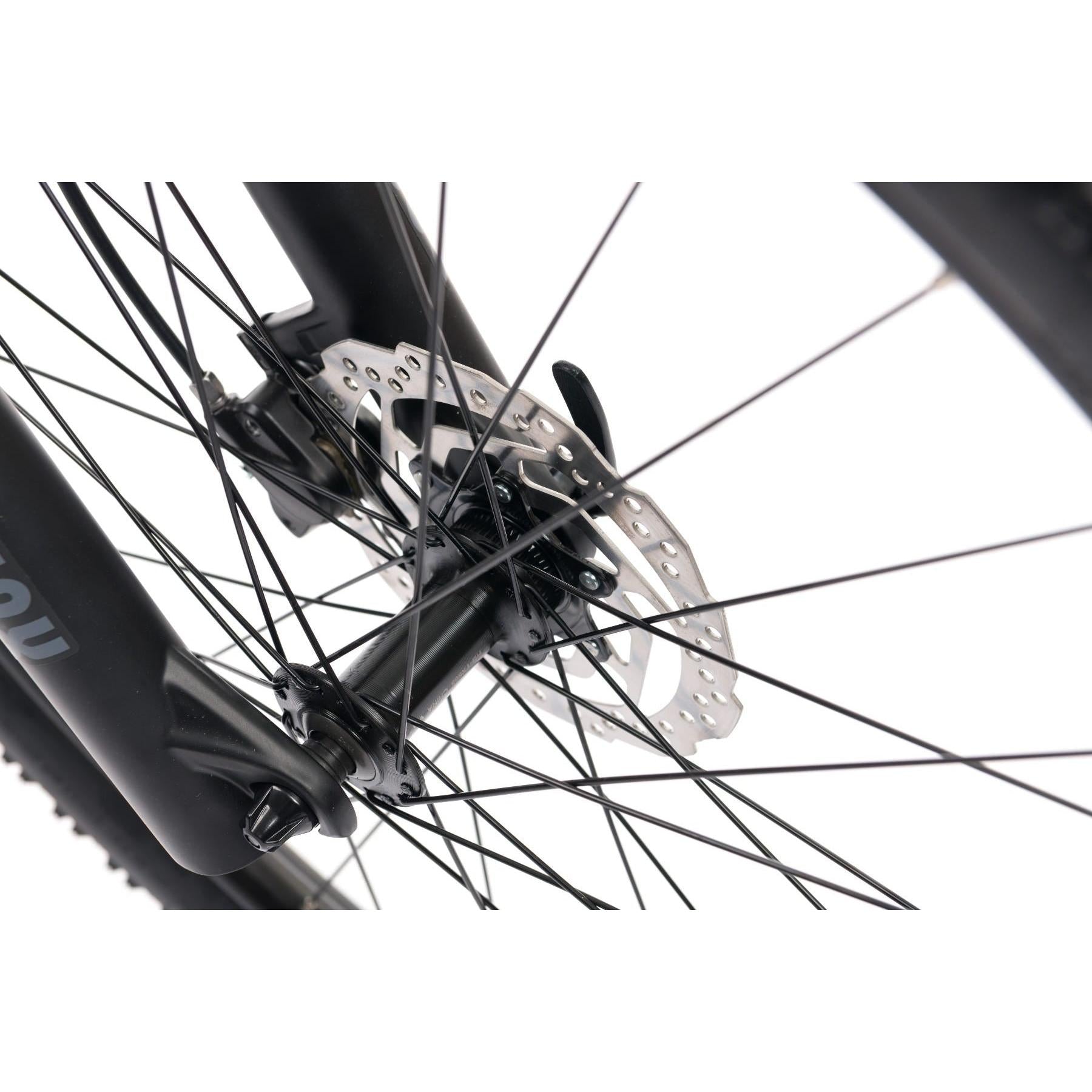

Shimano Hydraulic Disc Brakes

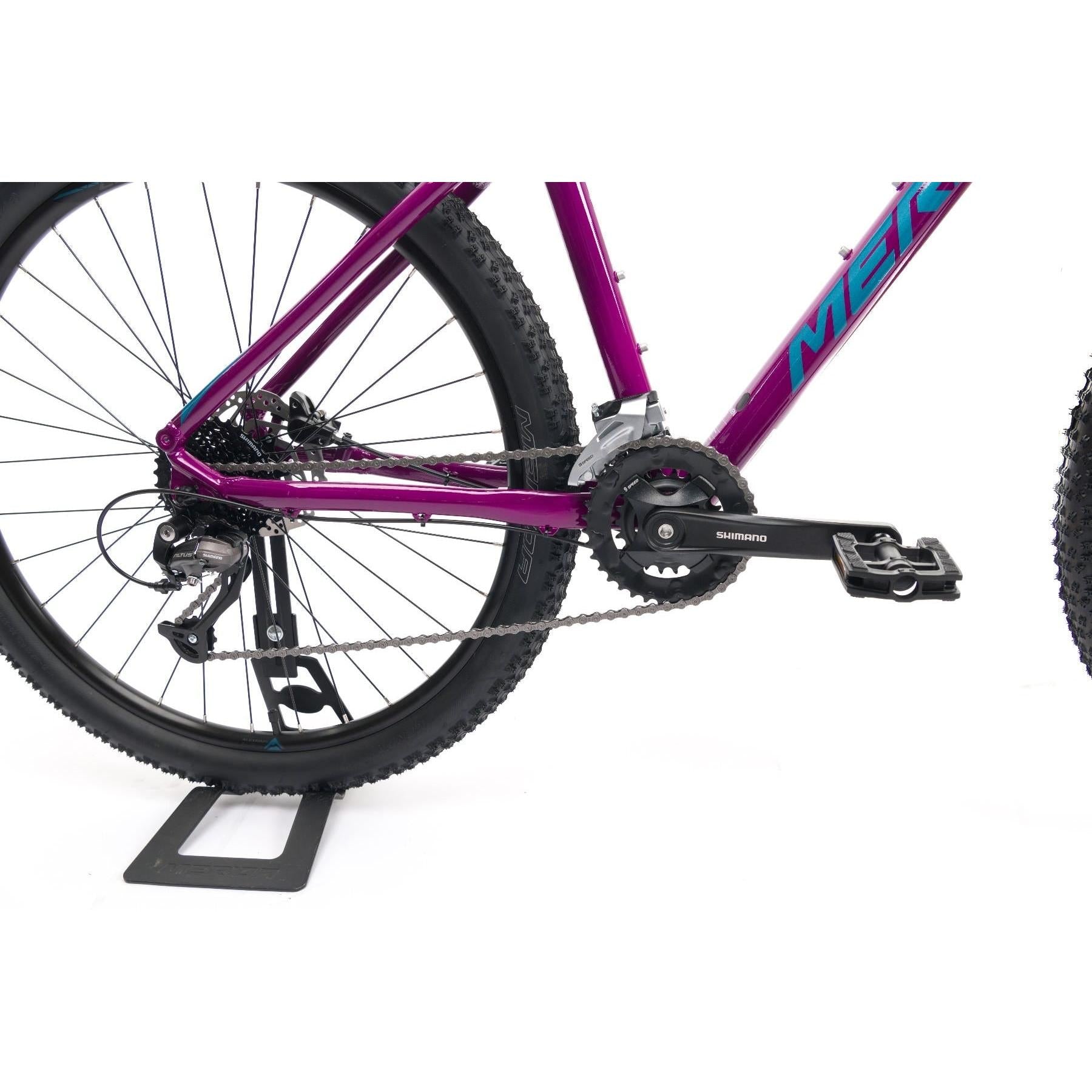

2x9 speed Shimano Drivetrain

Specifications

Product Overview

Product

Merida Big Seven 60 Mountain Bike Purple Teal/Blue

Brand

Merida

Parent SKU

21MeridaBigSeven60PurpleTealBlue

Size SKUs

XS: MEHA2196635
SM: MEHA2196646
MD: MEHA2196657
LG: MEHA2196668

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Purple

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

2 x 9

Front Travel

100mm

Weight Limit

135kg (includes bike)

Build

Frame

Alloy

Fork

Rock Shox Judy TK; Coil; 100 STR Lockout; 42mm fork offset

Handlebars

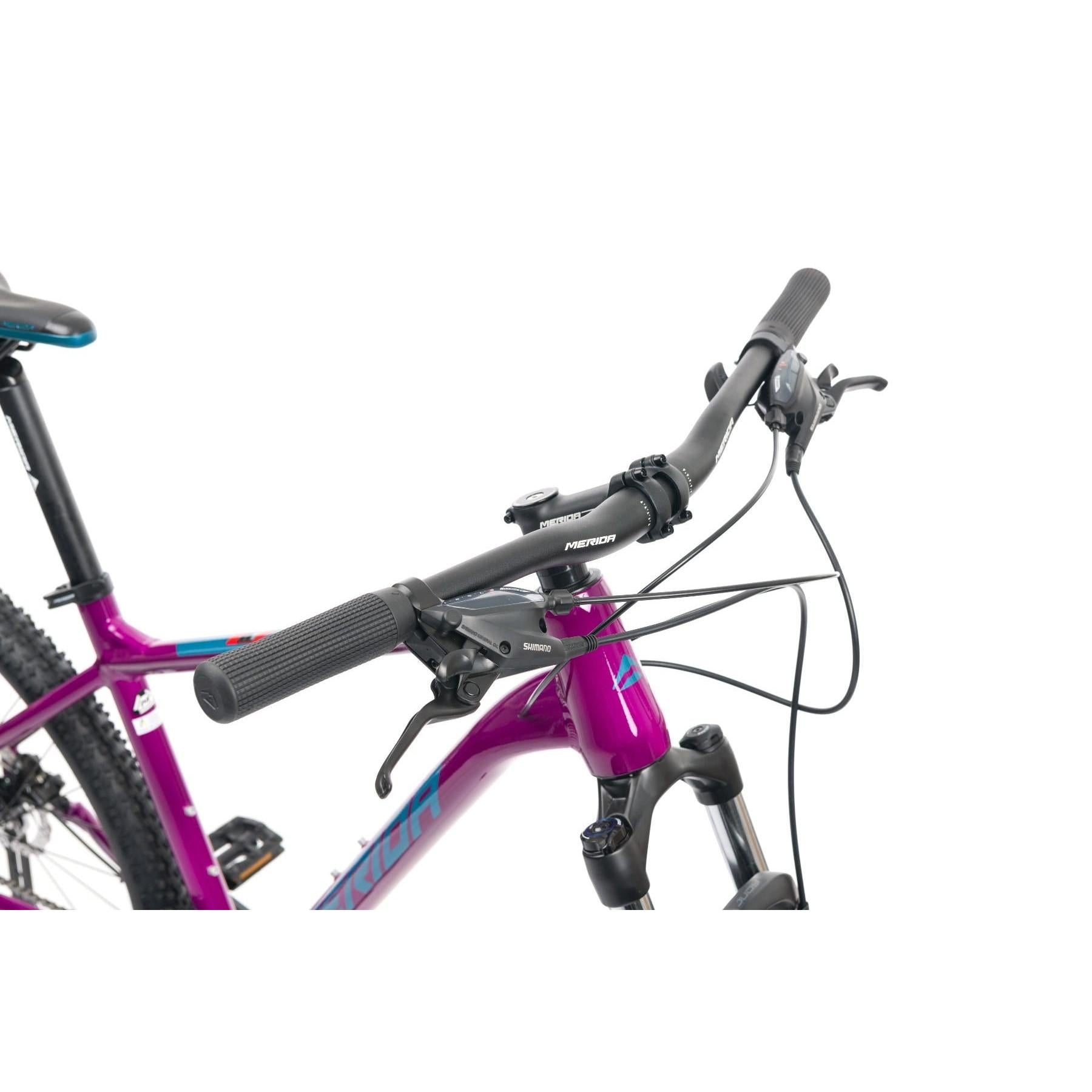

MERIDA CC; MAT aluminium; 690 Wide; 15 Rise

Headset

MERIDA M2345

Grips

MERIDA EC

Stem

MERIDA CC; MAT aluminium; 31.8 Diameter; 6 Angle

Bottom Bracket

Shimano BB-UN100

Pedals

Plastic VPE-891

Saddle

MERIDA Sport comfort

Seat Post

MERIDA CC; MAT aluminium; 30.9 Diameter; 15 Setback

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock

Tyres

MERIDA K1080; 27.5x2.2"; wire

Spokes

Black steel

Groupset

Crankset

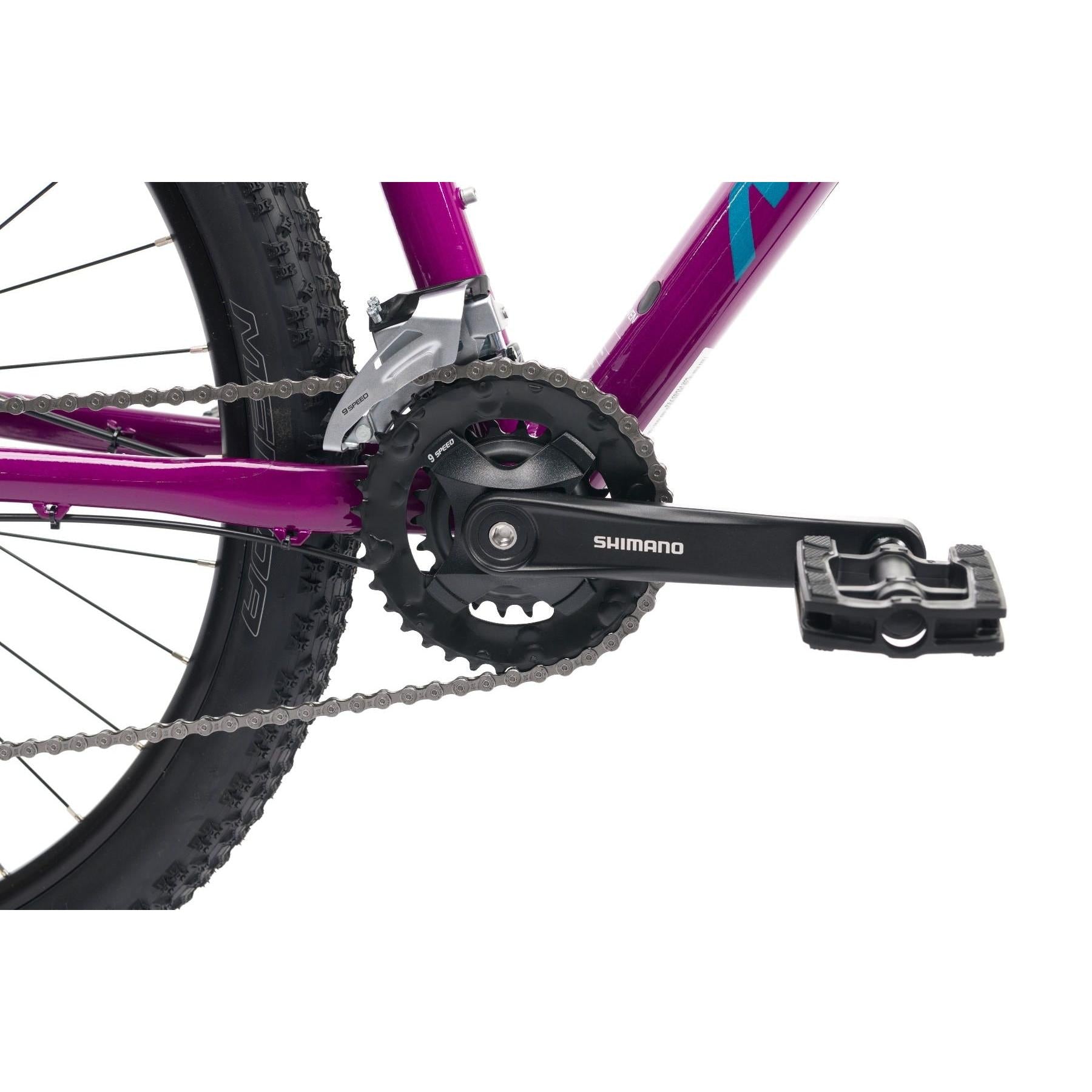

Shimano MT101-2; 36-22 teeth

Chain

KMC M99

Brakes

POWER DS 100, 2 piston, hydraulic disc

Front Rotor

Shimano RT10; 160mm

Rear Rotor

Shimano RT10; 160mm

Shifters

microSHIFT Xpress

Front Derailleur

Shimano M2020-TS

Rear Derailleur

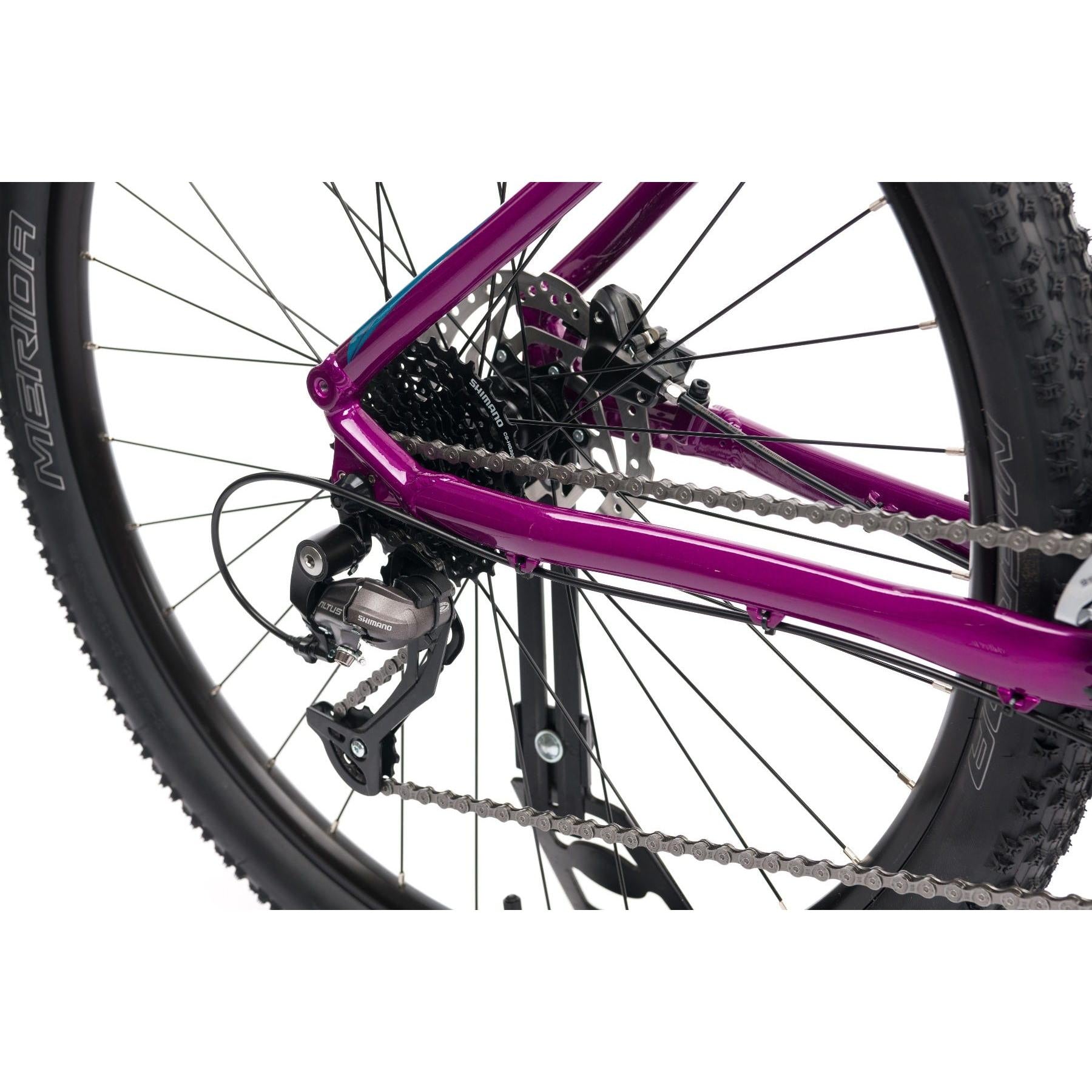

Shimano RD-M370

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Seven 60 Mountain Bike Purple Teal/Blue we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

XXL

Merida Big Seven 60 Mountain Bike Purple Teal/Blue geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

563

577

591

605

Reach

378

394

409

425

Top Tube Length

550

570

590

610

Seat Tube Length

340

380

440

480

Seat Tube Angle

73.0

Fork Length

Head Tube Length

100

115

130

145

Head Tube Angle

69.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

649

689

740

778

Minimum Seat Height

Maximum Seat Height
