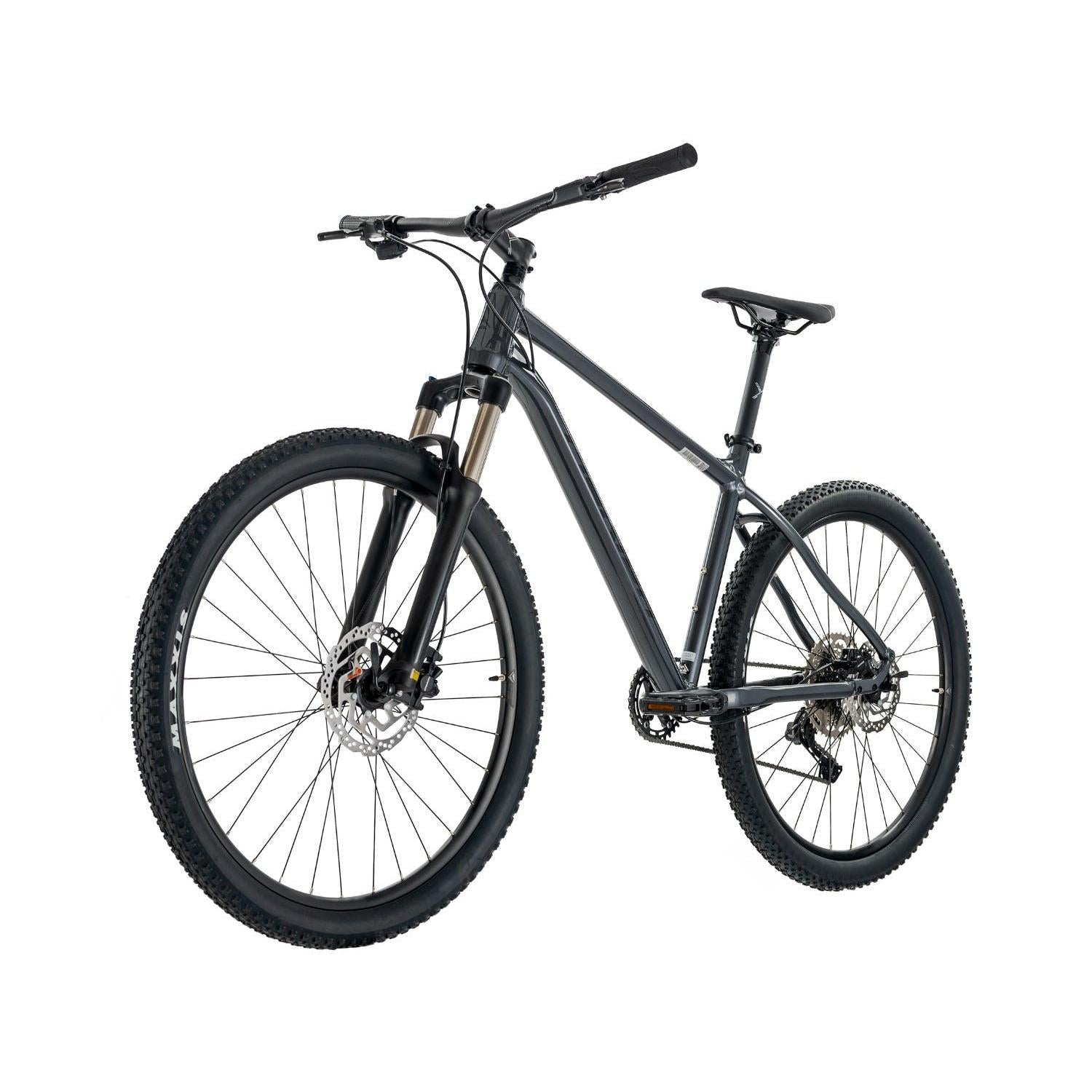

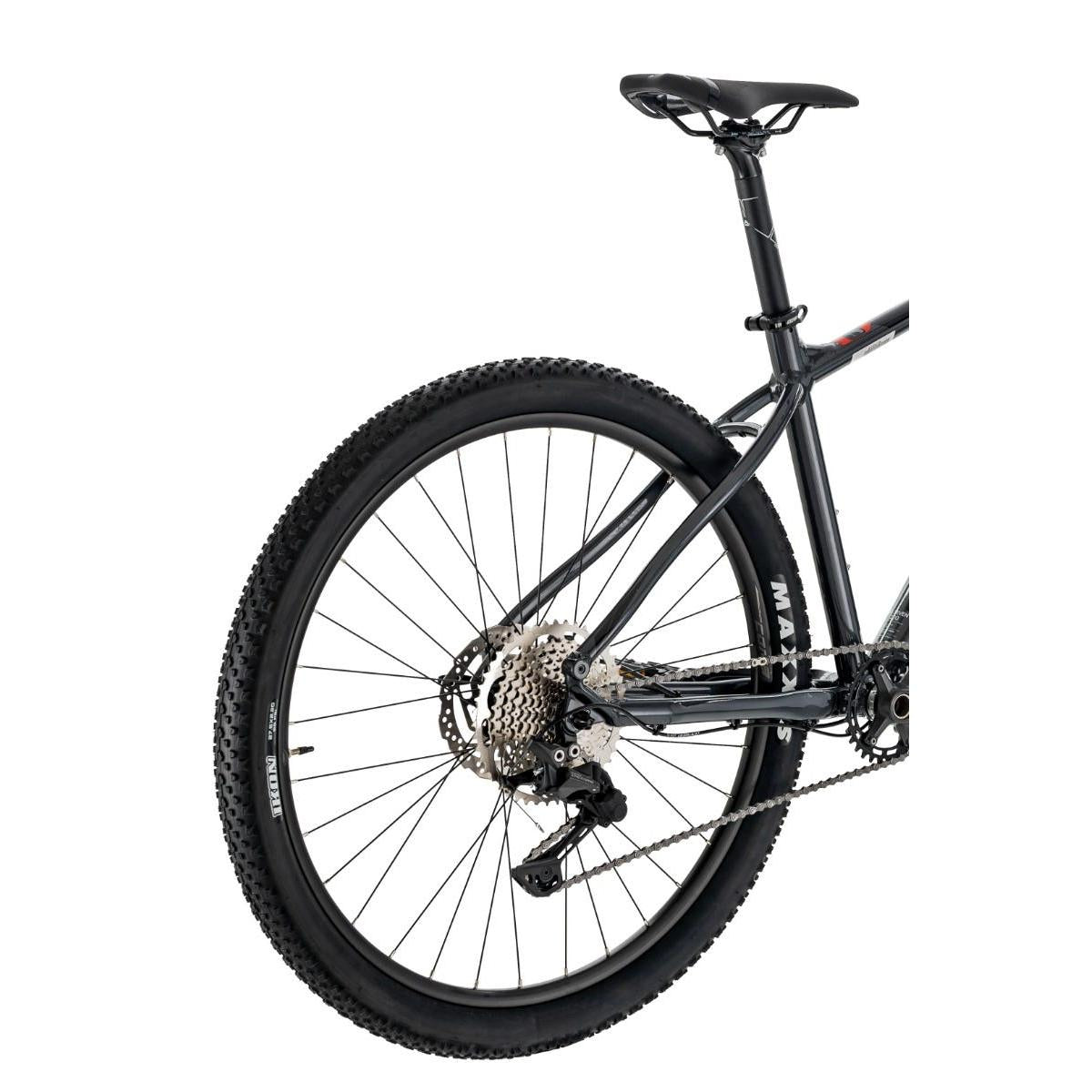

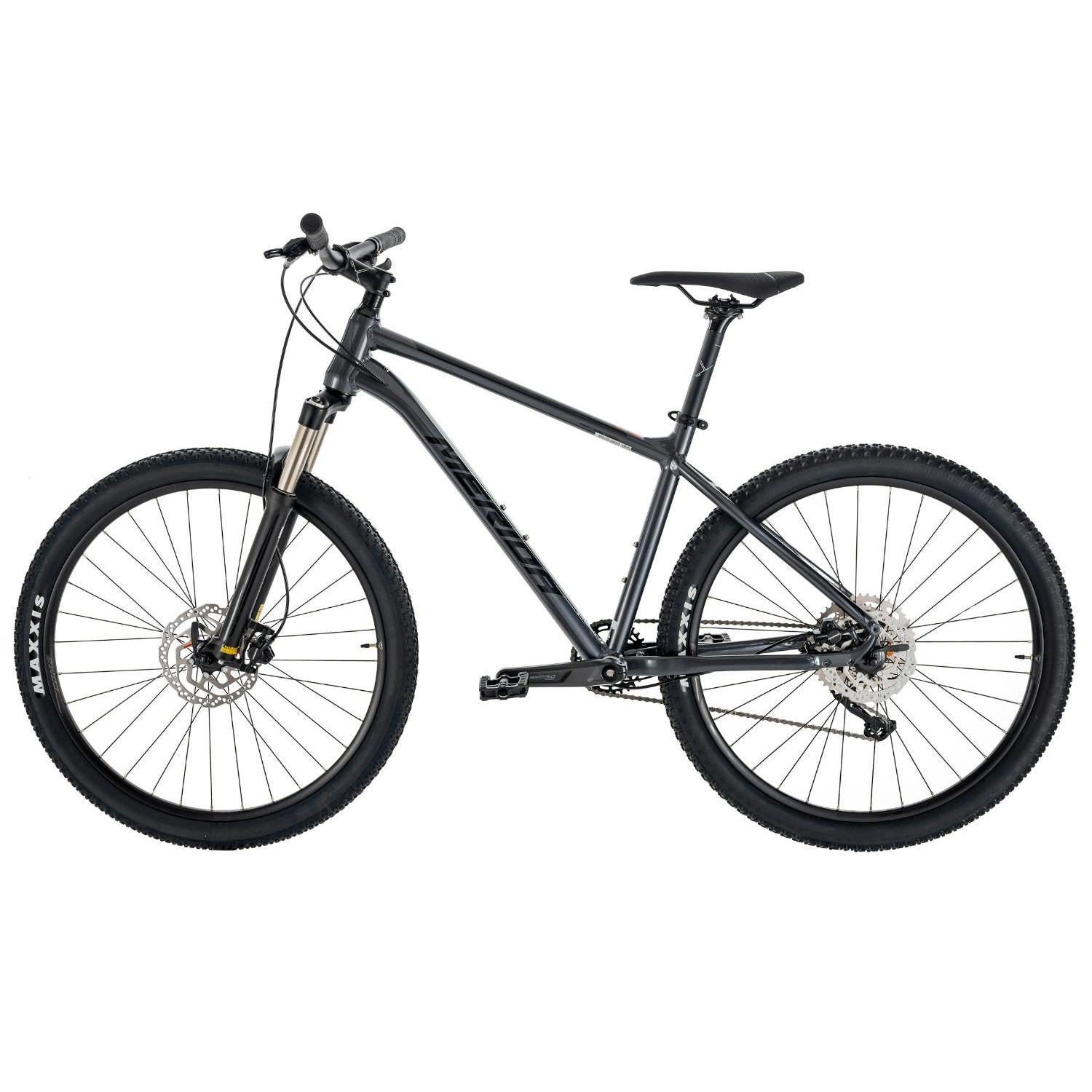

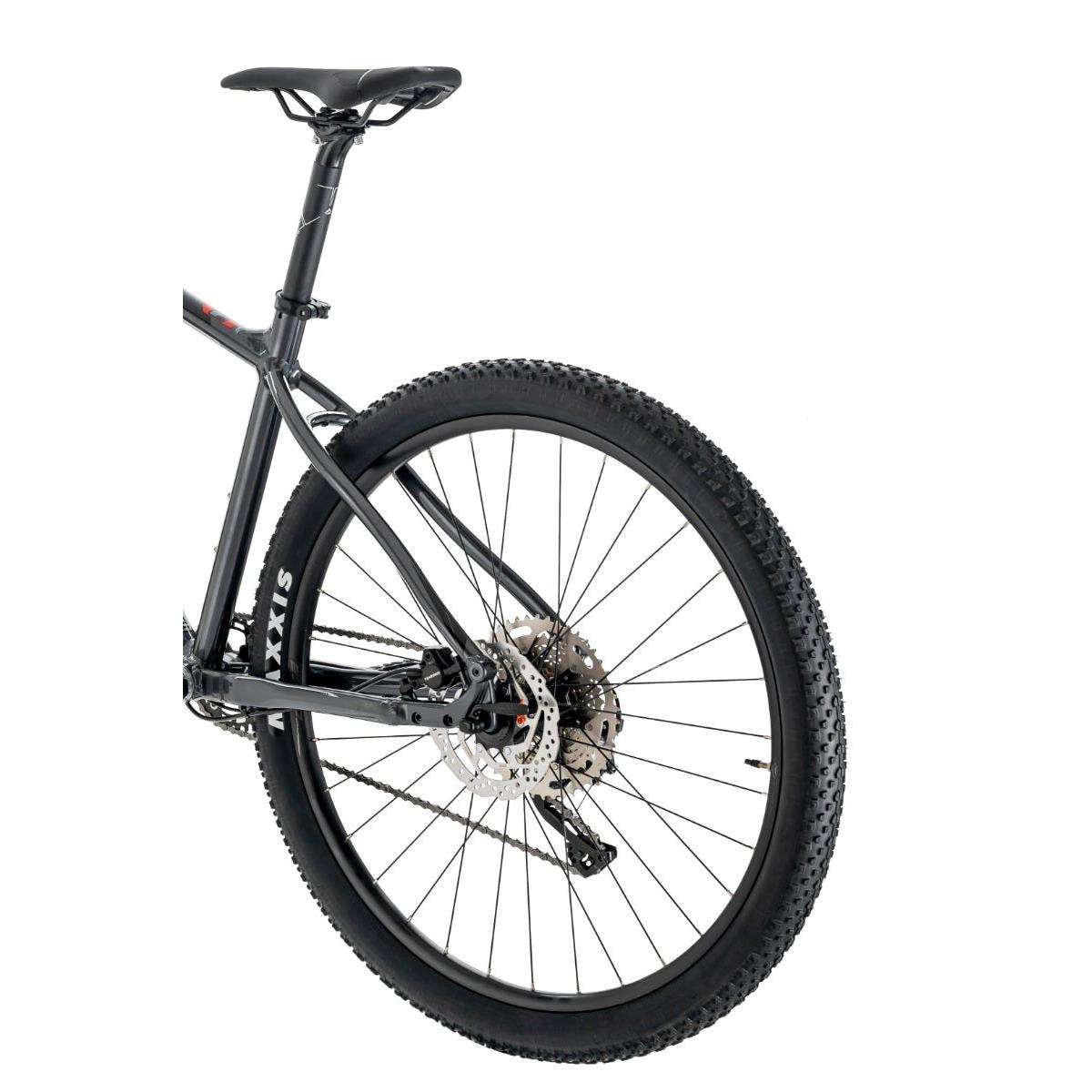

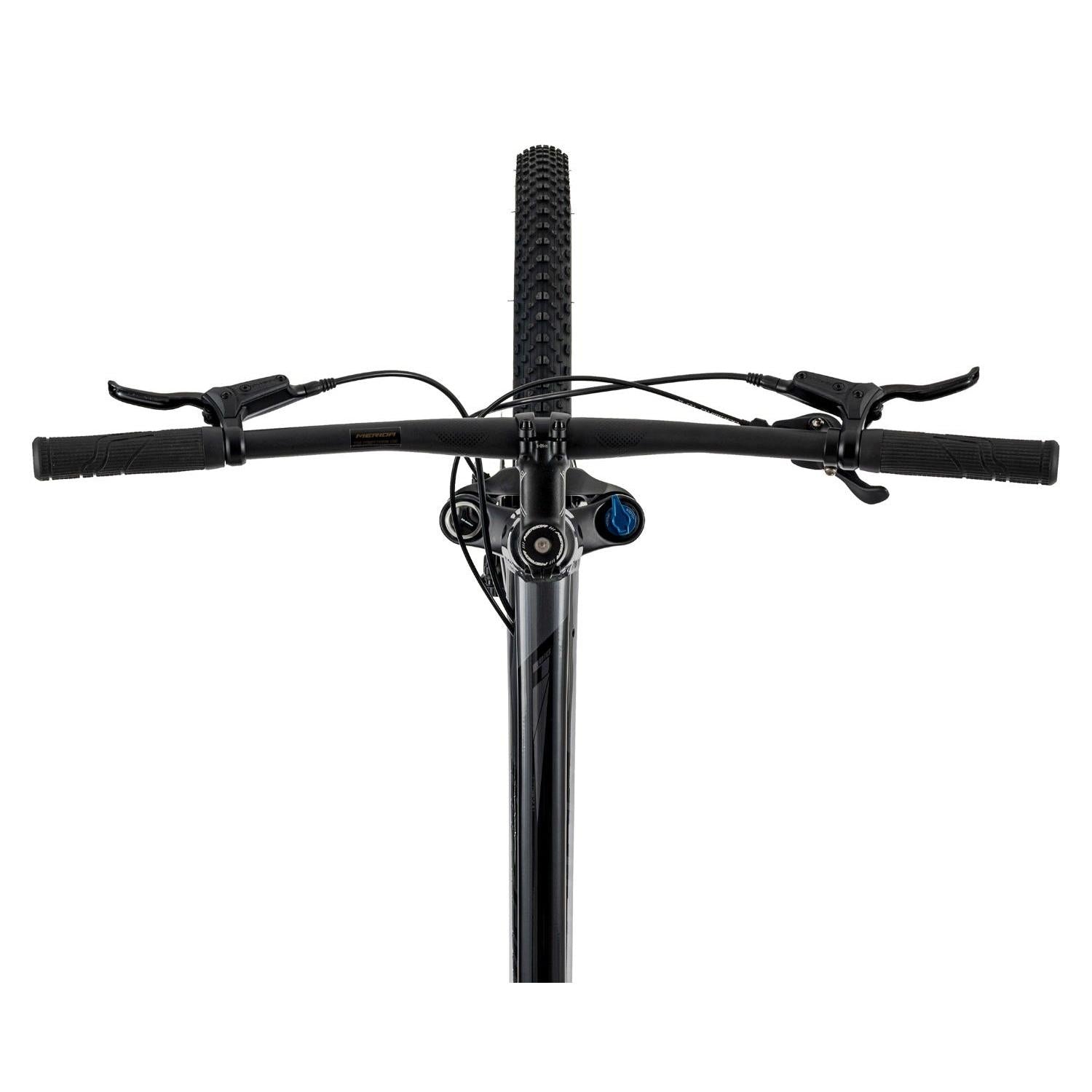

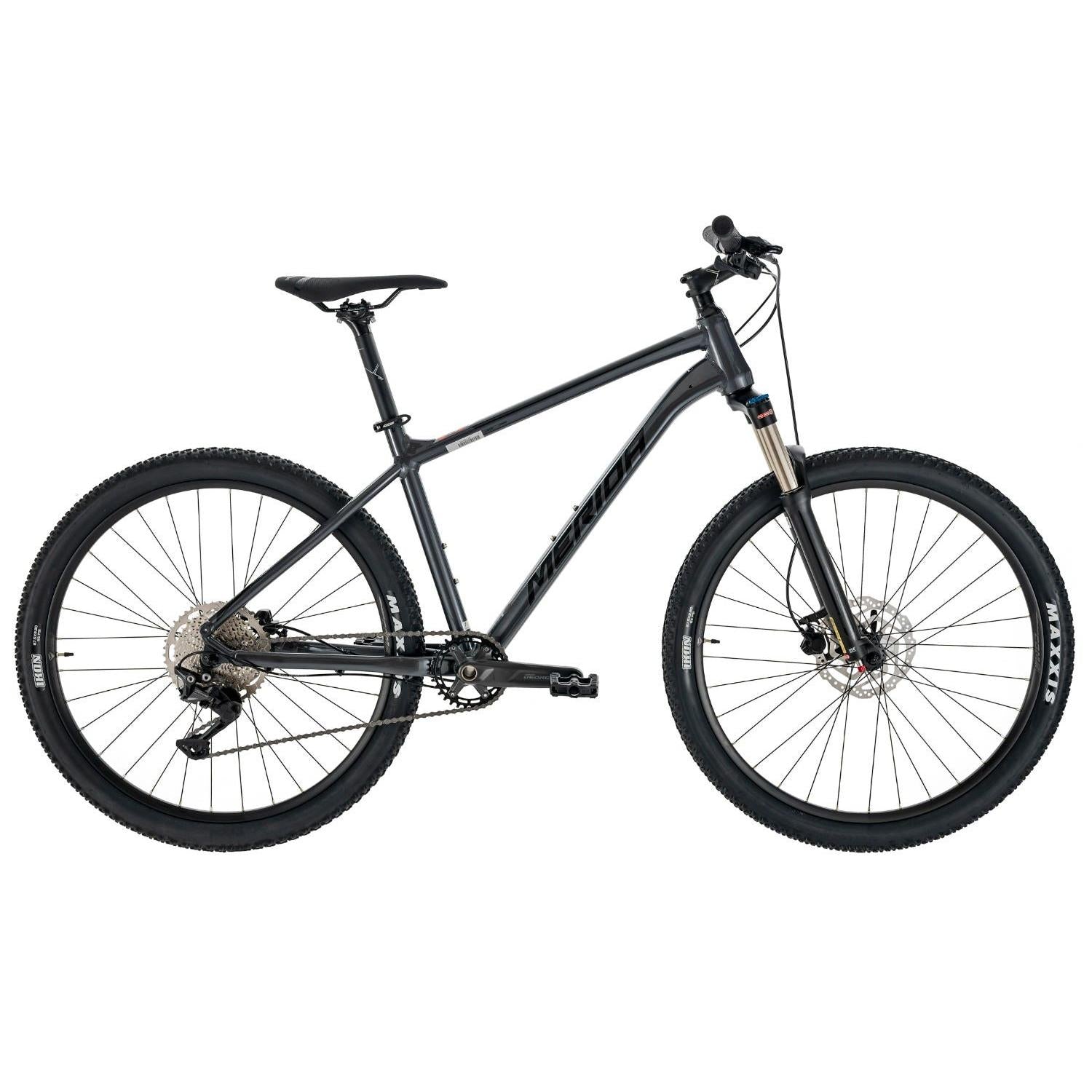

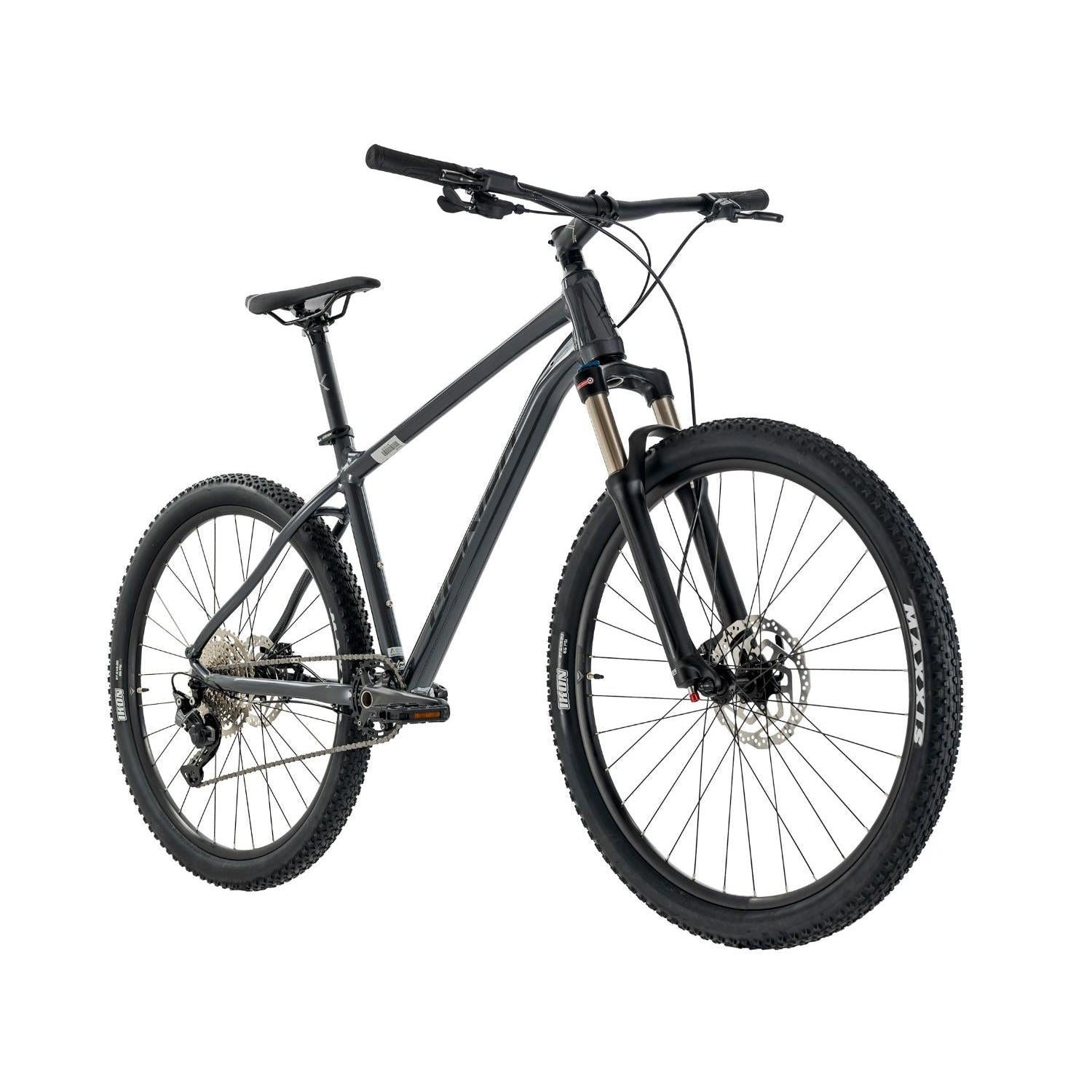

Merida Big Seven 200 Hardtail MTB Silver/Black

Merida Big Seven 200 Hardtail MTB Silver/Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 10 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Seven 200 Mountain Bike is a lightweight entry-level hardtail with reliable components. It features a Shimano Deore 1x10 drivetrain, offering a wide range for climbs and descents, and a tidy cockpit with a single gear shifter. Equipped with Tektro Hydraulic disc brakes and a 180mm front rotor, it ensures confident braking in all conditions. The bike's lightweight aluminum frame accommodates 27.5 x 2.25" tires and a 135 x 9mm axle. The Suntour XCR32 LOR fork, with 100mm of adjustable air suspension, enhances comfort on natural trails and includes a lockout feature for efficient climbing. Our staff can assist with setting up the fork to match your body weight.

Key Features

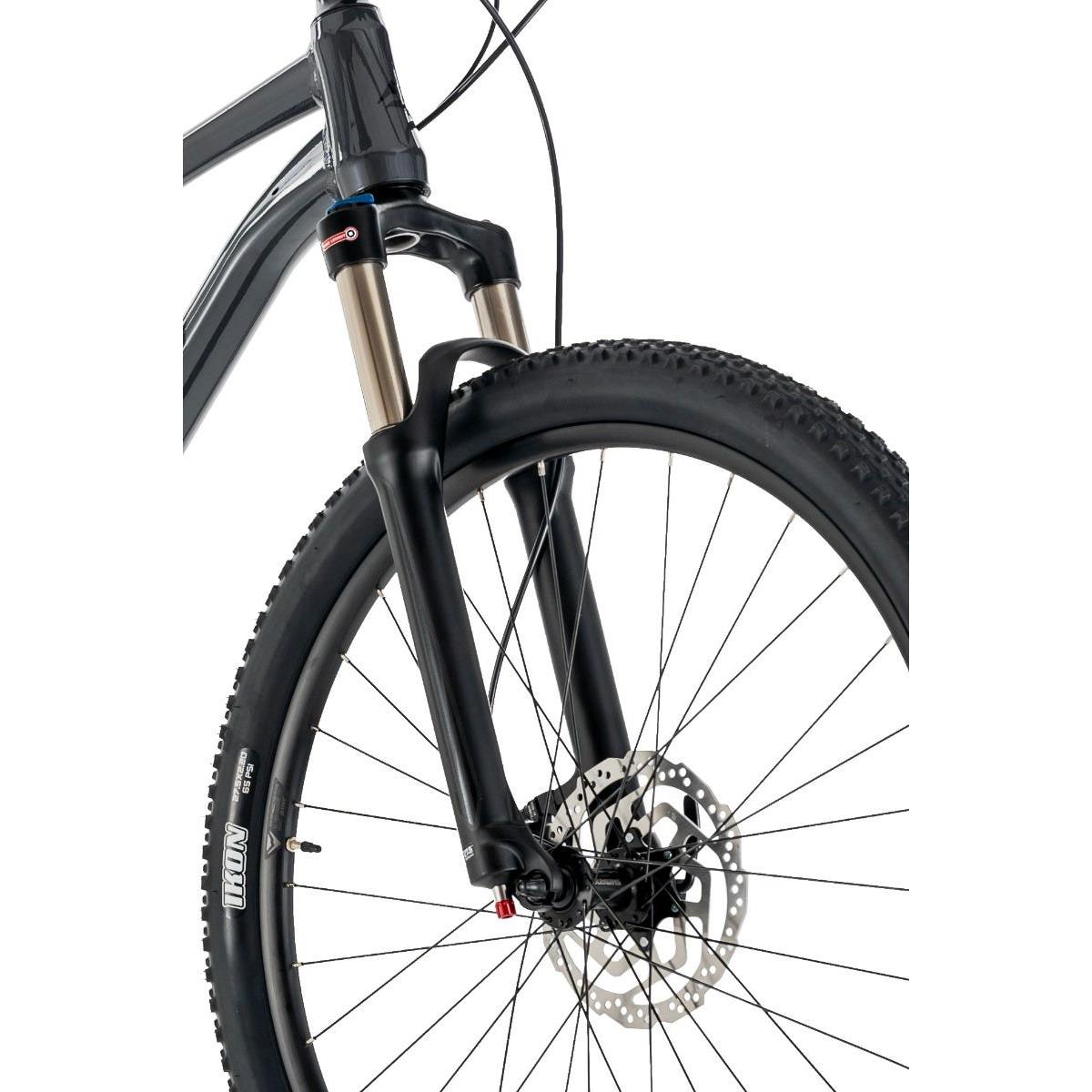

Suntour XCR32 LOR Fork 100mm Air Travel with Lockout
Agile 27.5-inch wheels
Double Butted Alloy frame with internal cable routing
Tektro Hydraulic Disc Brakes
1x10 speed Shimano Deore Drivetrain
Shimano Deore Shadow+ Derailleur With Clutch

Specifications

Product Overview

Product

Merida Big Seven 200 Hardtail MTB Silver/Black

Brand

Merida

Parent SKU

22MeridaBig.Seven200DarkSilver/Black

Size SKUs

XS: MEHA2233070
SM: MEHA2233081
MD: MEHA2233092
LG: MEHA2233100

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Silver

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

100mm

Weight Limit

135kg (includes bike)

Build

Frame

BIG.SEVEN TFS III; MAT aluminium; 27.5 WHS; 135x9 AST; BSA BBR

Fork

Suntour XCR LOR; Air; 100 STR; Lockout; 42mm fork offset

Handlebars

MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB

Headset

MERIDA M2346 Neck

Stem

MERIDA COMP CC; MAT aluminium; 31.8 DSH; 6 ASD

Pedals

VP VPE-891

Saddle

MERIDA COMP SL; V-mount

Seat Post

MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA COMP CC; 20 IWR; MAT aluminium

Hubs

F: Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock / R: Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock

Tyres

Maxxis Ikon; 27.5x2.2"; wire

Spokes

Black stainless

Groupset

Crankset

Shimano Deore M5100; 32 ATC

Chain

KMC X10

Brakes

Tektro M275; 2 piston

Front Rotor

180mm

Rear Rotor

160mm

Shifters

Shimano Deore M4100

Rear Derailleur

Shimano Deore M5120 Shadow+

Cassette

10 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Seven 200 Hardtail MTB Silver/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

XXL

Merida Big Seven 200 Hardtail MTB Silver/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
