Discontinued

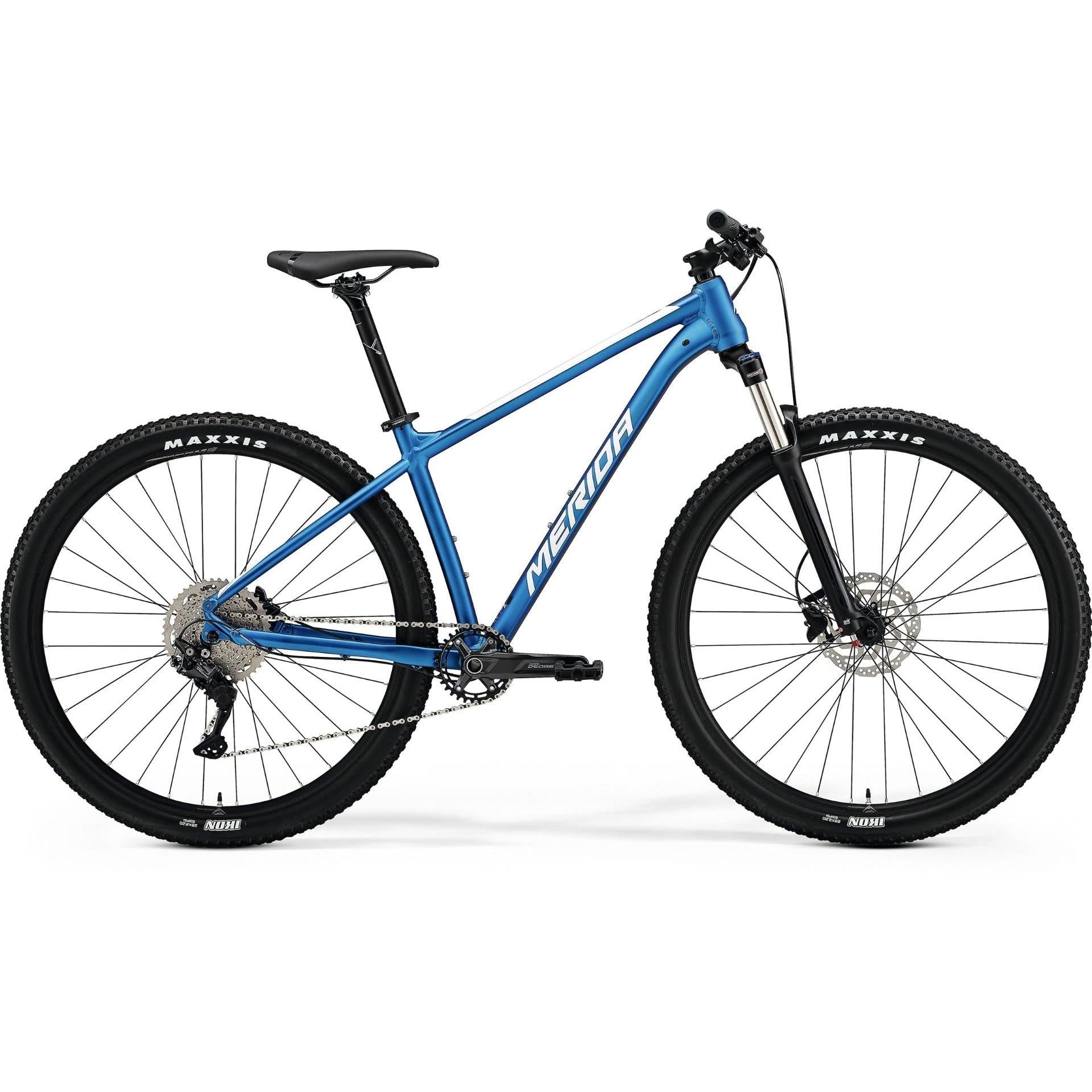

Merida Big Seven 200 Hardtail MTB Blue/White

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Shimano Deore Groupset

1 x 10 Speed

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 10 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Seven 200 Mountain Bike is designed for entry-level riders seeking a lightweight and reliable hardtail. It features a user-friendly 1x drivetrain with a clutch and an air suspension fork with lockout. The Shimano Deore drivetrain includes a single front chainring and 10 rear gears, offering a wide range for various terrains. The bike's cockpit is streamlined with a single gear shifter on the right. Equipped with Tektro Hydraulic disc brakes and a 180mm front rotor, it ensures reliable stopping power. The lightweight aluminum frame accommodates 27.5 x 2.25” tires and a 135 x 9mm axle. The Suntour XCR32 LOR fork, with adjustable air suspension and 100mm travel, enhances grip and climbing efficiency. The lockout feature optimizes performance on different terrains, and in-store staff can assist with suspension setup.

Key Features

Suntour XCR32 LOR Fork with 100mm air travel and lockout
Agile 27.5" wheels
Double butted alloy frame with internal cable routing
Tektro hydraulic disc brakes with 180mm front
1x10 speed Shimano Deore drivetrain
Clutch in Shimano Deore Shadow+ derailleur

Specifications

Product Overview

Product

Merida Big Seven 200 Hardtail MTB Blue/White

Brand

Merida

Size SKUs

XS: MEHA2237632
SM: MEHA2237643

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Blue

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

100mm

Weight Limit

135kg (includes bike)

Build

Frame

BIG.SEVEN TFS III; MAT aluminium; 27.5 WHS; 135x9 AST; BSA BBR

Fork

Suntour XCR LOR; Air; 100 STR; Lockout; 42mm fork offset

Handlebars

MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB

Headset

MERIDA M2346 Neck

Stem

MERIDA COMP CC; MAT aluminium; 31.8 DSH; 6 ASD

Pedals

VP VPE-891

Saddle

MERIDA COMP SL; V-mount

Seat Post

MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA COMP CC; 20 IWR; MAT aluminium

Tyres

Maxxis Ikon; 27.5x2.2"; wire

Spokes

Black stainless

Groupset

Crankset

Shimano Deore M5100; 32 ATC

Chain

KMC X10

Brakes

Tektro M275; 2 piston

Front Rotor

180mm

Rear Rotor

160mm

Shifters

Shimano Deore M4100

Rear Derailleur

Shimano Deore M5120 Shadow+

Cassette

10 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Seven 200 Hardtail MTB Blue/White we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

XXL

Merida Big Seven 200 Hardtail MTB Blue/White geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
