15% Off Full Price

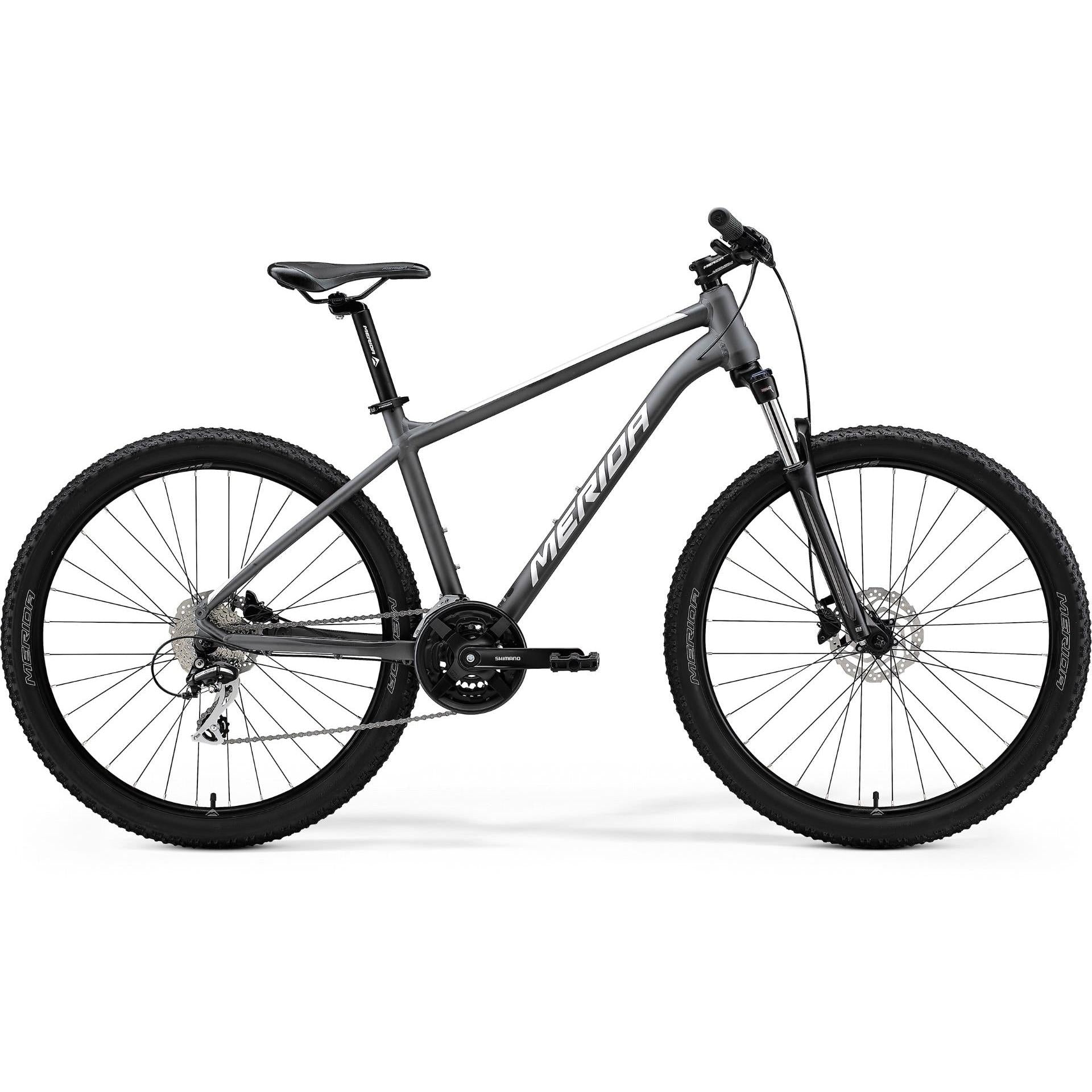

Merida Big Seven 20 Mountain Bike Matt Dark Silver/Silver

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express delivery — fastest option $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Altus Groupset

2 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Seven 20 Mountain Bike is equipped with a Shimano Altus drivetrain featuring 2 front chainrings and 8 rear gears, offering a versatile range for both climbs and descents. It includes Shimano Hydraulic disc brakes for reliable stopping power in all conditions. The bike's lightweight aluminum frame accommodates 27.5 x 2.25" tires and a 135 x 9mm axle. The Suntour XCT30 HLO fork provides 100mm of travel, enhancing grip and power on trails with tree roots and loose rocks. The fork's lockout feature ensures efficient climbing while maintaining suspension for rough descents and flat terrains.

Key Features

Suntour XCT30 HLO Fork with 100mm travel and lockout
Agile 27.5-inch wheels
Alloy frame featuring internal cable routing
Shimano MT-200 hydraulic disc brakes
2x8 speed Shimano drivetrain

Specifications

Product Overview

Product

Merida Big Seven 20 Mountain Bike Matt Dark Silver/Silver

Brand

Merida

Parent SKU

22MeridaBig.Seven20MattDarkSilver/Silver

Size SKUs

XS: MEHA2247928
SM: MEHA2247939

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

2 x 8

Front Travel

100mm

Weight

14.5kg

Weight Limit

135kg (includes bike)

Build

Frame

Alloy

Fork

Suntour XCT30 HLO; Coil; 100mm suspension travel LOCKOUT

Handlebars

Merida CC aluminium; 690mm width 15mm rise

Headset

Merida M2345

Grips

Merida EC

Stem

Merida CC aluminium; 31.8 diameter 6° angle

Bottom Bracket

FSA TH-7420ST-W, Cartridge Bearing

Pedals

VP VPE-891

Saddle

Merida Sport Comfort

Seat Post

Merida CC aluminium; 30.9mm diameter; 15mm setback

Seat Clamp

Merida Comp QR

Wheels

Wheel Size

27.5" (650b)

Rims

Merida CC; 17mm inner width, aluminium

Hubs

F: Shimano Tourney TX HB-TX505 100x9mm, 32h, centrelock | R: Shimano Tourney TX HB-TX505 135x9mm, 32h, centrelock

Tyres

MERIDA K1080; 27.5 x 2.2"; wire bead

Spokes

Black steel

Groupset

Crankset

Shimano Altus FC-M315-2 Length 170mm

Chain

Sunrace M84

Brakes

Power DS100 (2 piston, hydraulic disc brake)

Front Rotor

Shimano RT10; 160mm

Rear Rotor

Shimano RT10; 160mm

Shifters

microSHIFT MEZZO TS39-2L Thumb Tap Shifter | microSHIFT MEZZO TS39-8R Thumb Tap Shifter

Front Derailleur

Shimano Altus FD-M315-TS 2x

Rear Derailleur

Shimano Acera RD-M360

Cassette

8 Speed
