15% Off Full Price

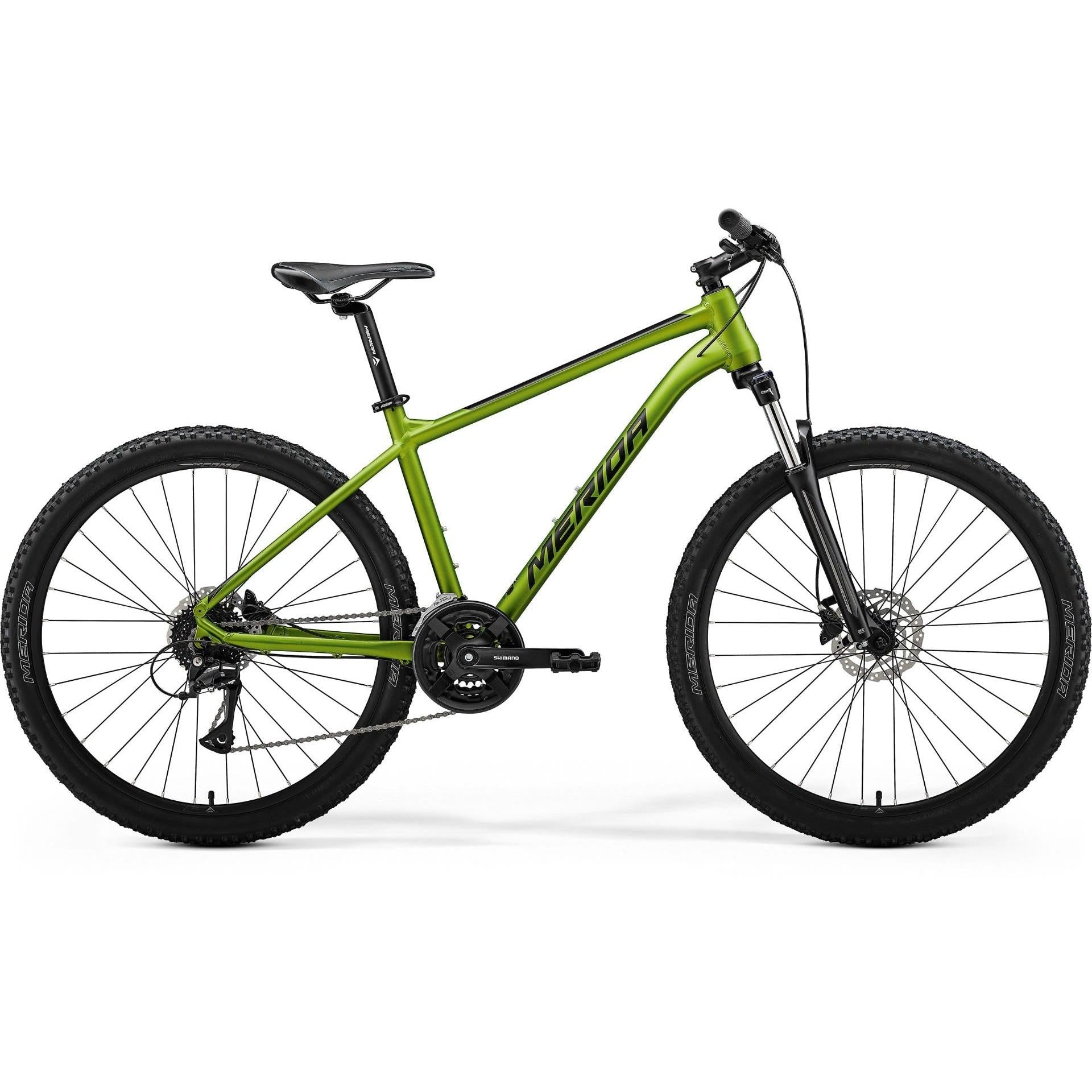

Merida Big.Seven 20 Hardtail Mountain Bike Matt Fall Green/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

2 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Seven 20 is an entry-level hardtail perfect for cross-country trails. It features a 2x8 drivetrain offering a wide range for climbs and descents, paired with quality hydraulic disc brakes for reliable stopping power in any condition. The lightweight aluminum frame accommodates 27.5 x 2.25" tires and a 135 x 9mm axle, making it trail-ready. The Suntour XCT30 HLO fork provides 100mm of travel, enhancing grip and control on rough terrain. Its lockout feature boosts climbing efficiency while maintaining suspension for descents. Ideal for fire roads and easier trails, the Merida Big Seven 20 ensures a great riding experience.

Specifications

Product Overview

Product

Merida Big.Seven 20 Hardtail Mountain Bike Matt Fall Green/Black

Brand

Merida

Parent SKU

Merida24Big.Seven20MattFallGreenBlack

Size SKUs

XS: MEHA242400998
SM: MEHA242400999

Matrix Barcodes

XS: MEHA242400998
SM: MEHA242400999

Year Model

2024

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

2 x 8

Front Travel

100mm

Build

Frame

BIG.SEVEN TFS IV; MAT aluminium; 27.5x2.25" max. WHS; 135x9 AST; BSA BBR

Fork

Suntour XCT30 HLO; Coil; 100 STR; Lockout; 27.5x2.25" max. WHS

Handlebars

MERIDA CC; MAT aluminium; 690 WHB; 15 RHB

Headset

MERIDA M2345

Grips

MERIDA EC

Stem

MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD, 70 mm-XS/S, 80 mm-M, 90 mm-L

Bottom Bracket

Shimano BB-UN101 73-123

Pedals

VP VPE-891

Saddle

MERIDA Sport comfort

Seat Post

MERIDA CC; MAT aluminium; 30.9 DSP; 15 SSB

Seat Clamp

MERIDA COMP QR

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

Shimano TX505; 100x9 WHF; 32 SPH; Centerlock:Shimano TX505; 135x9 WHR; 32 SPH; Centerlock

Tyres

MERIDA K1080; 27.5x2.2"; wire:MERIDA K1080; 27.5x2.2"; wire

Spokes

Black steel

Groupset

Crankset

Shimano TY301; 42-34-24 ATC

Chain

KMC Z8.1

Brakes

Tektro M275 [or Shimano BR-MT200]

Front Rotor

Shimano RT10; 160 mm

Rear Rotor

Shimano RT10; 160 mm

Shifters

Microshift TS39 [or Shimano ST-EF505]

Front Derailleur

Shimano FD-TY600

Rear Derailleur

Shimano RD-M3020-8; SGS

Cassette

8 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big.Seven 20 Hardtail Mountain Bike Matt Fall Green/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Internal Cable Routing

With internal cable routing you have the benefit of a modern clean look and the added benefit of preventing rust and fraying of your shift and brake cable, being internal also means your cables are protected while in storage or being transported on the car!

HYDRAULIC DISC BRAKES

Hydraulic disc brakes offer better braking performance in all conditions, including wet weather and off-road. The hydraulic system offers greater control and better feedback through your levers for increased braking confidence!

100mm Lockout Front Suspension

With front suspension forks to help soak up the bumps on your ride, this bike will have you riding in comfort. Don't worry about the little bumps on the road and focus on what's important. The fun of riding!

Riders Height (cm)

XXS

XXL

Merida Big.Seven 20 Hardtail Mountain Bike Matt Fall Green/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

563

577

Reach

378

394

Top Tube Length

550

570

Seat Tube Length

340

380

Seat Tube Angle

73.0

Fork Length

487

Head Tube Length

100

115

Head Tube Angle

69.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

649

689

Minimum Seat Height

Maximum Seat Height
