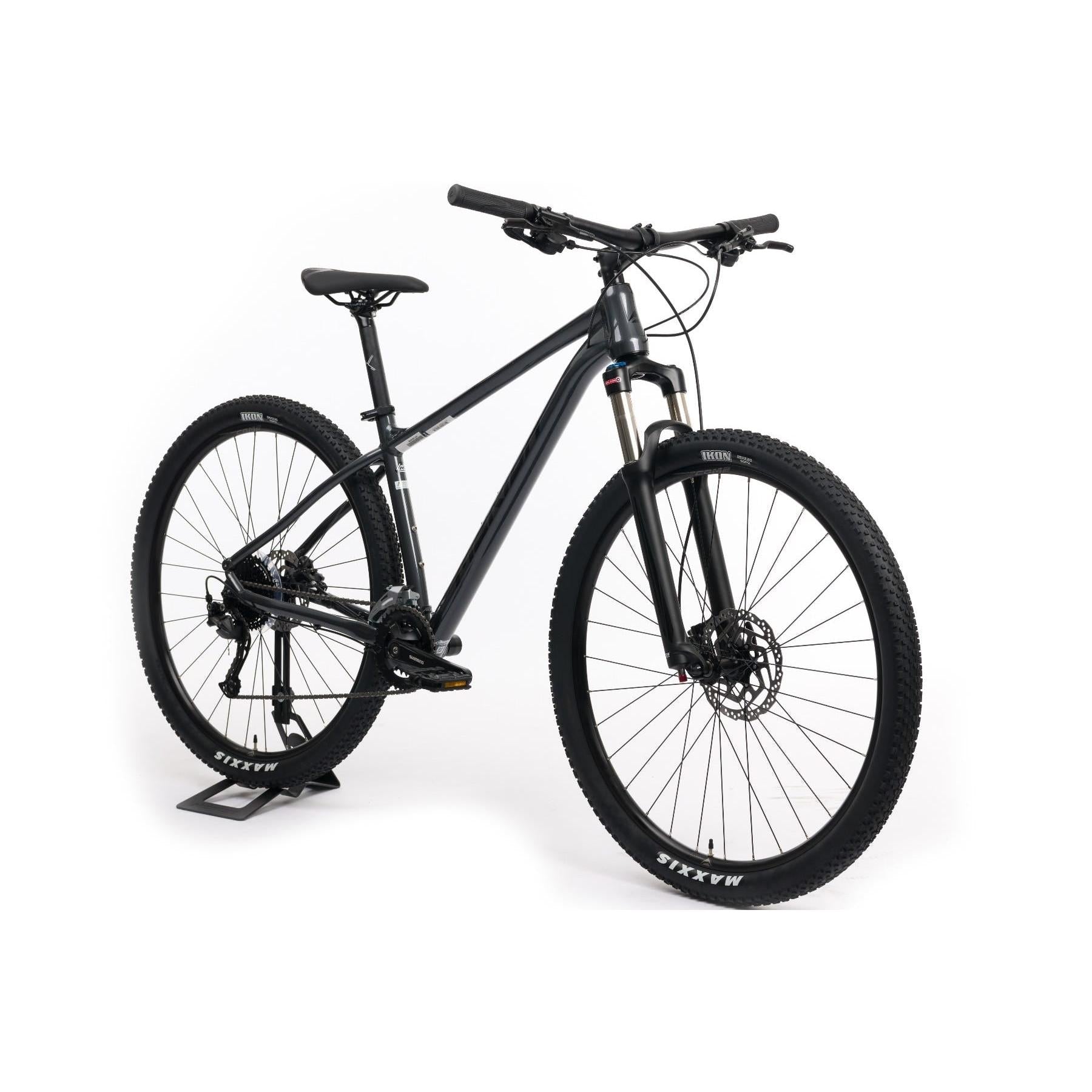

Merida Big Seven 100 Mountain Bike Anthracite/Black

Merida Big Seven 100 Mountain Bike Anthracite/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Altus Groupset

2 x 9 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Seven 100 features a new TFS Alloy frame with internal cable routing for a sleek look and reduced maintenance. It includes a Suntour XCR Fork with 100mm travel and lockout for high-speed performance on various terrains. Equipped with a Shimano 2x9 speed Alivio groupset, it ensures swift shifting and smooth riding. The Tektro M272 2 Piston Hydraulic Disc Brakes provide reliable control in all conditions, enhancing your confidence and enjoyment on every ride.

Specifications

Product Overview

Product

Merida Big Seven 100 Mountain Bike Anthracite/Black

Brand

Merida

Parent SKU

21MeridaBigSeven100AnthraciteBlack

Size SKUs

XS: MEHA2194967
SM: MEHA2194978
MD: MEHA2194989
LG: MEHA2194990

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

2 x 9

Front Travel

100mm

Weight Limit

135kg (includes bike)

Build

Frame

Alloy

Fork

Suntour XCR LOR; Air; 100 STR; Lockout; 42mm fork offset

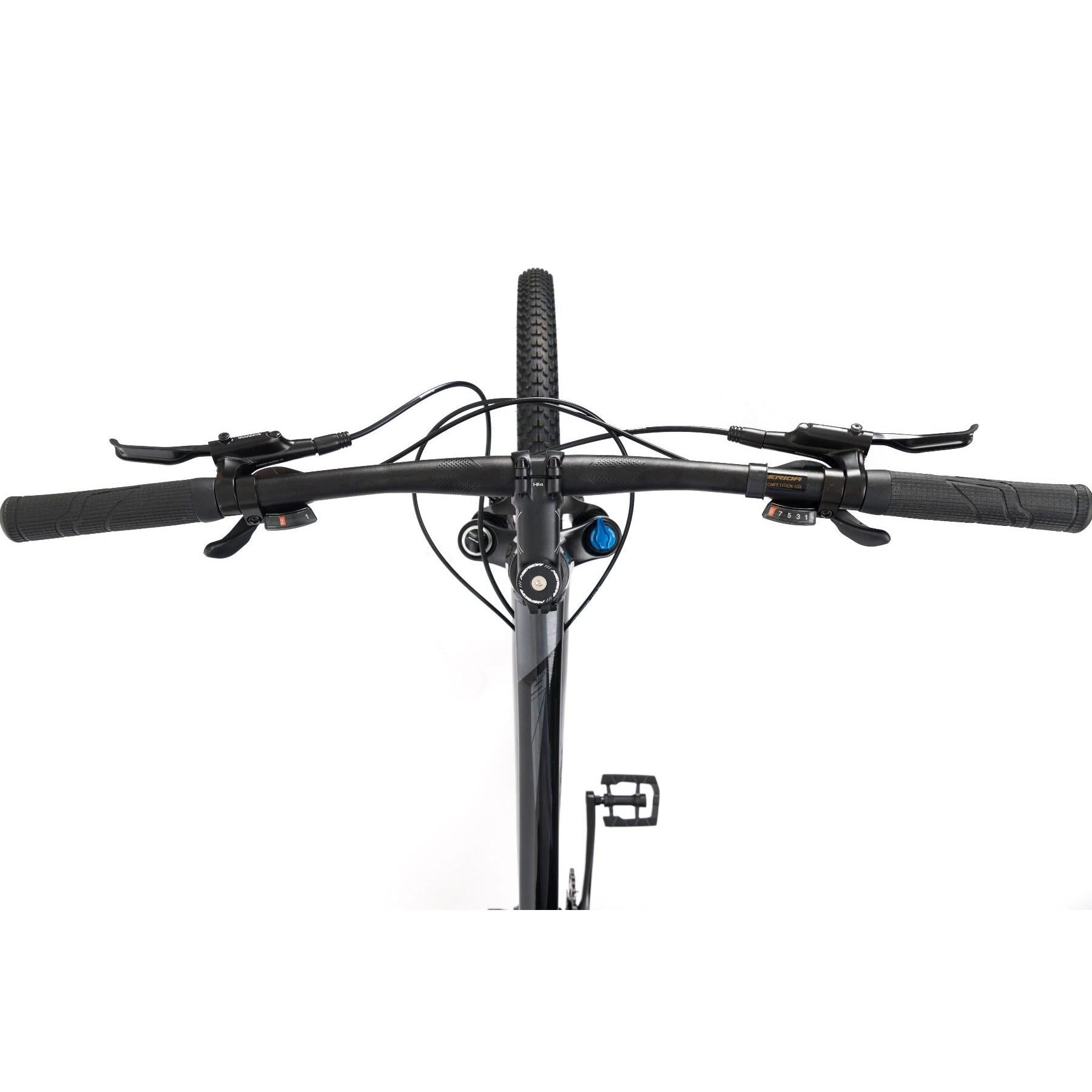

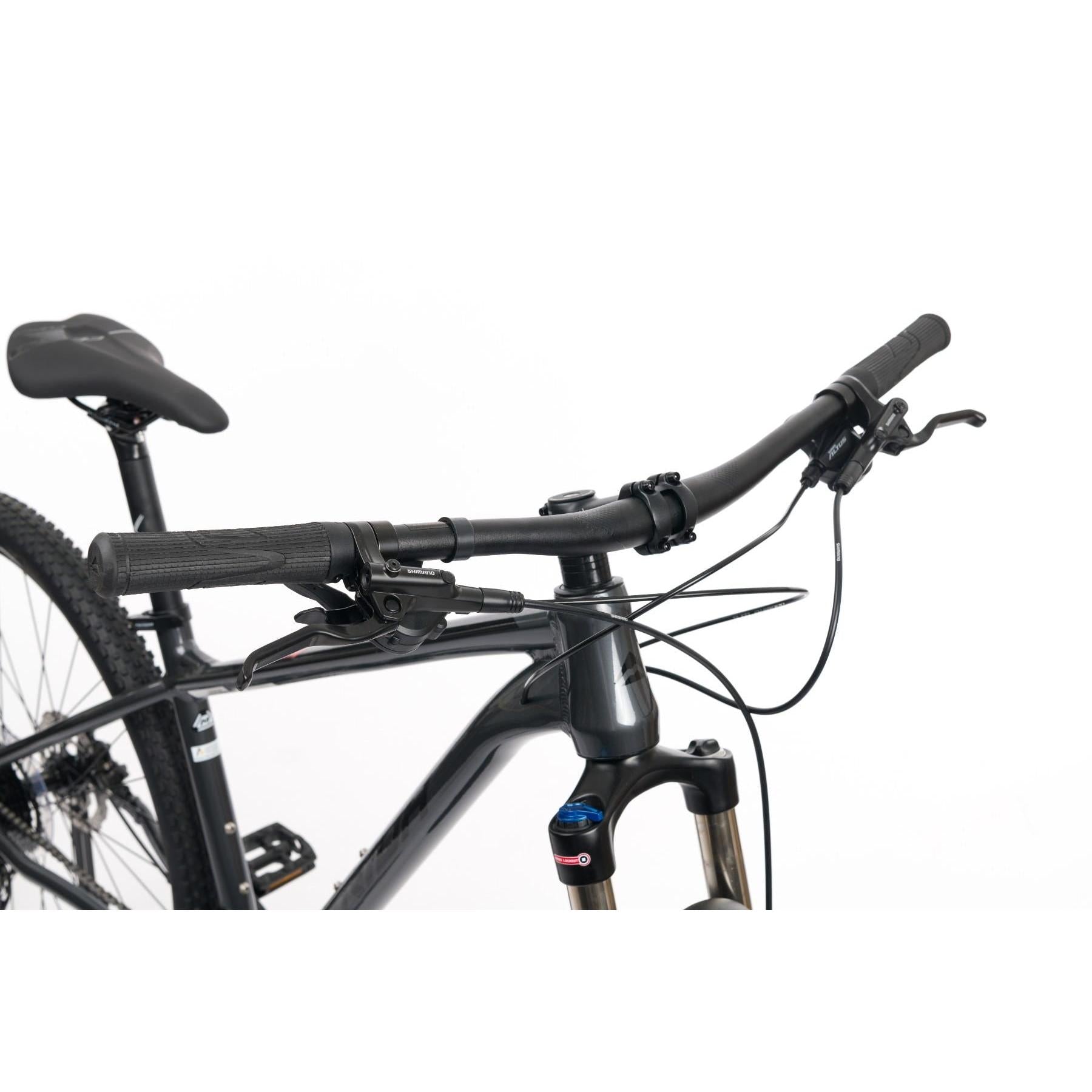

Handlebars

MERIDA EXPERT CC; MAT aluminium; 720 Wide; 10 Rise

Headset

MERIDA M2346 Neck

Grips

MERIDA COMP EC

Stem

MERIDA COMP CC; MAT aluminium; 31.8 Diameter; 6 Angle

Bottom Bracket

Shimano UN100 BSA

Pedals

Plastic VPE-891

Saddle

MERIDA COMP CC

Seat Post

MERIDA COMP CC; MAT aluminium; 30.9 Diameter; 0 Setback

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA COMP CC; 20 IWR; MAT aluminium

Hubs

Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock

Tyres

Maxxis Ikon; 27.5x2.2"; wire

Spokes

Black stainless

Groupset

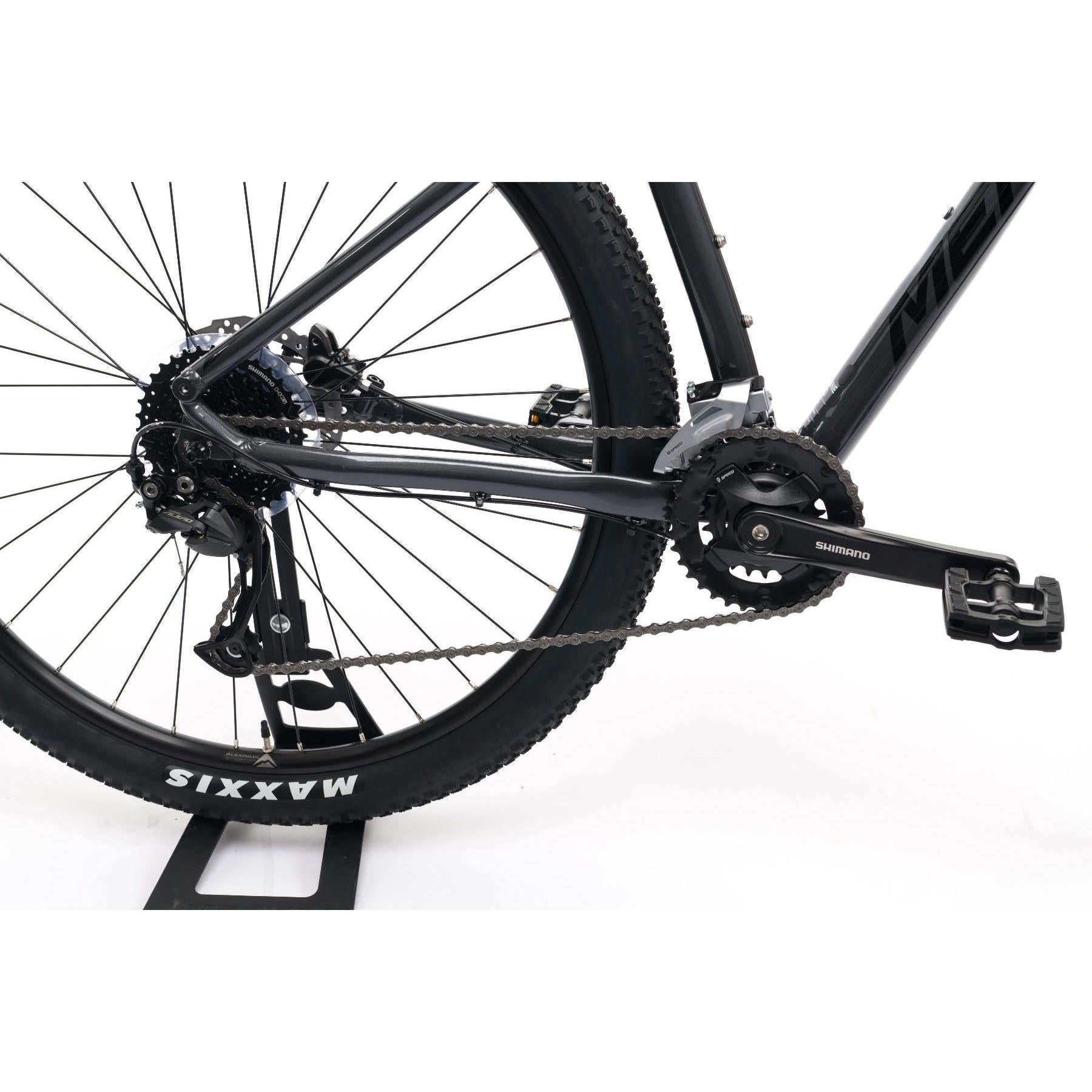

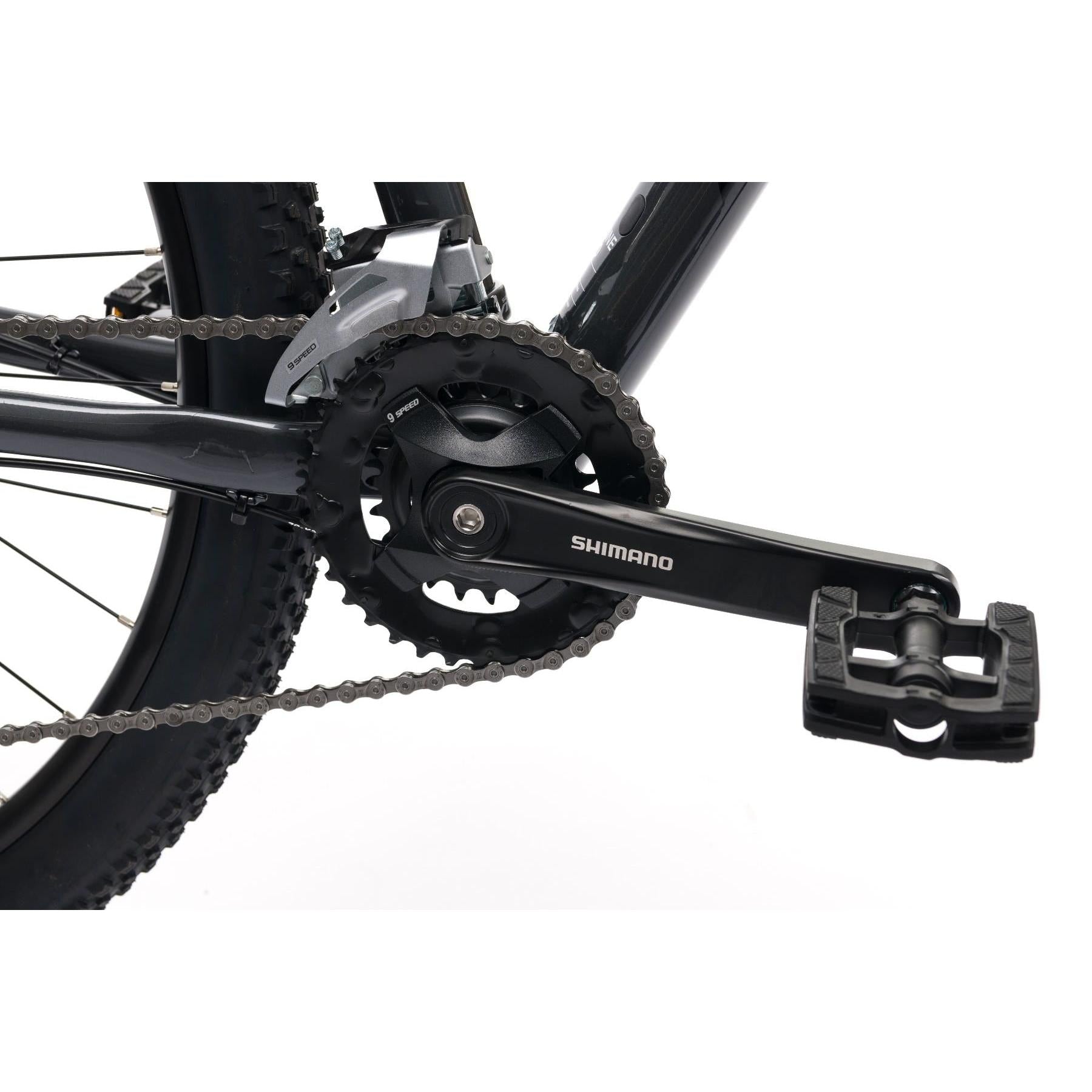

Crankset

Shimano MT101-2; 36-22 ATC

Chain

KMC M99

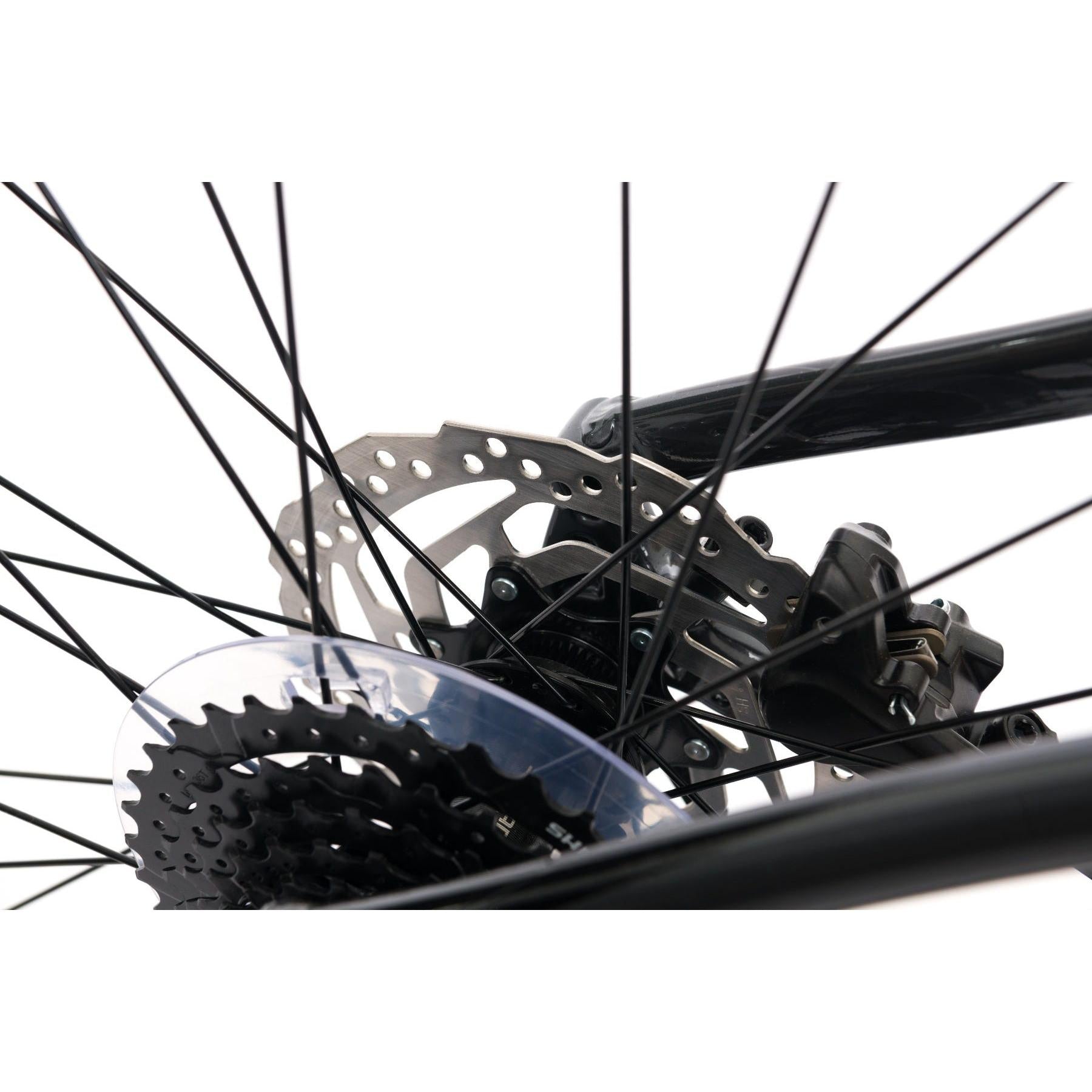

Brakes

Shimano MT-200; 2 piston

Shifters

Shimano Altus

Front Derailleur

Shimano M2020-TS

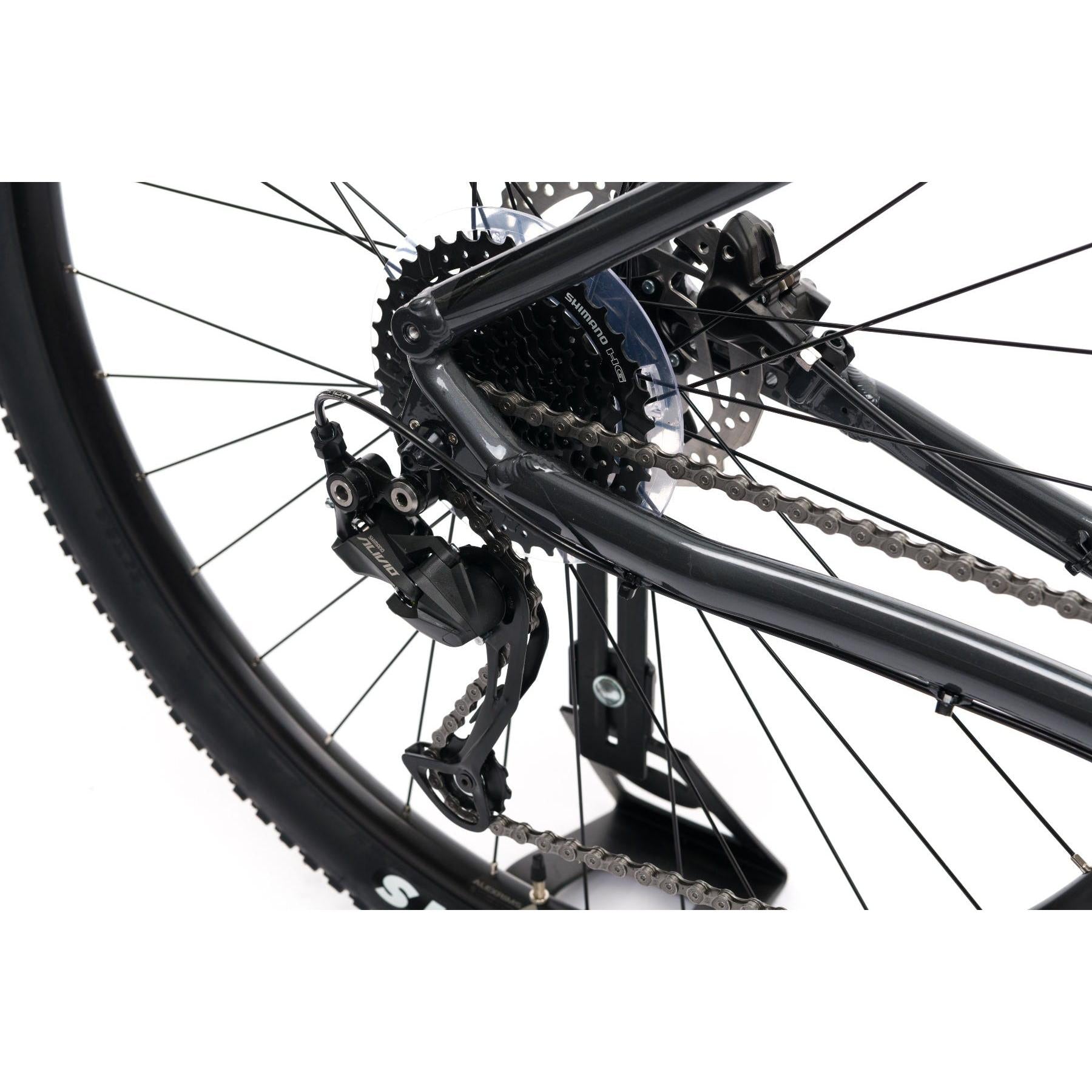

Rear Derailleur

Shimano Alivio Shadow

Cassette

9 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Seven 100 Mountain Bike Anthracite/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

XXL

Merida Big Seven 100 Mountain Bike Anthracite/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

563

577

Reach

378

394

Top Tube Length

550

570

Seat Tube Length

340

380

Seat Tube Angle

73.0

Fork Length

Head Tube Length

100

115

Head Tube Angle

69.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

649

689

Minimum Seat Height

Maximum Seat Height
