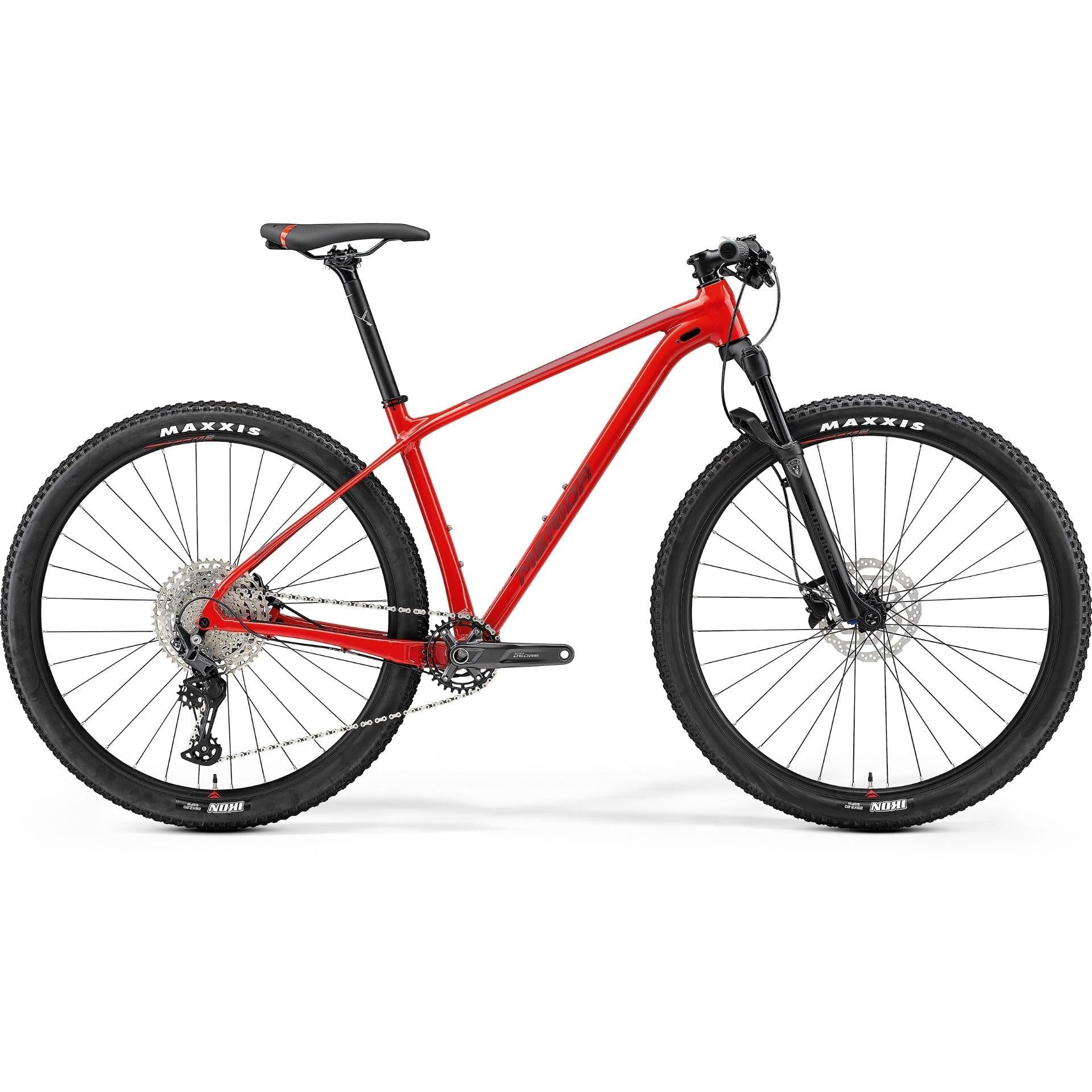

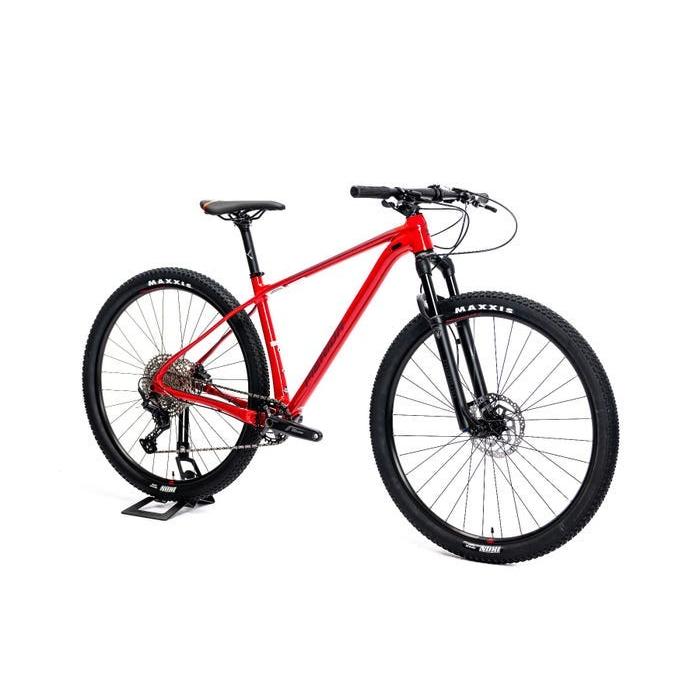

Merida Big Nine Limited Mountain Bike Glossy Race Red/Matt Red

Merida Big Nine Limited Mountain Bike Glossy Race Red/Matt Red

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Manitou Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 11 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Nine Limited is equipped with a lightweight Big Nine Alloy frame featuring race-proven geometry and internally routed cables for reduced maintenance and a clean look. Its LITE frame offers the same geometry as carbon models, with a 422mm reach, 73.5° seat angle, and 70° head angle for agility and stability. This bike excels in climbing and navigating technical sections, while also handling descents on loose terrain with ease. It bridges the gap between cross-country and trail hardtails. The 1x11 speed Shimano Deore Drivetrain provides efficient gear changes and is ideal for challenging climbs, offering a wide range of gears with minimal maintenance.

Key Features

Remote Lockout: Suspension

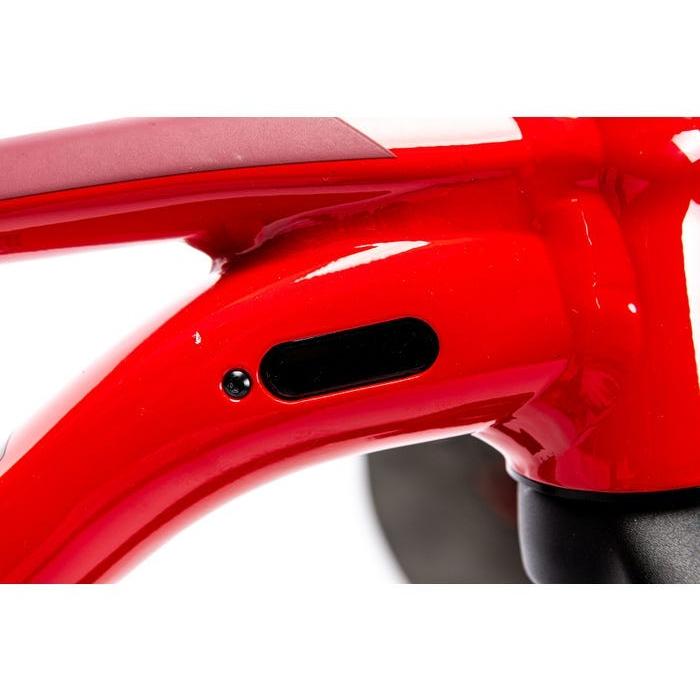

Dropper Post Ready: Internal Cable Routing
Modern Hardtail Geometry
1x11 Drivetrain

Specifications

Product Overview

Product

Merida Big Nine Limited Mountain Bike Glossy Race Red/Matt Red

Brand

Merida

Parent SKU

22MeridaBig.NineLimitedGlossyRaceRed/MattRed

Size SKUs

SM: MEHA2236954
MD: MEHA2236965
LG: MEHA2236976
XL: MEHA2236987

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Red

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

100mm

Weight

12.08kg

Weight Limit

135kg (includes bike)

Build

Frame

BIG.NINE LITE; MAT aluminium; 29 WHS; 148x12 AST; BB92 BBR

Fork

Manitou Markhor Comp; Air; 100mm suspension travel; tapered; Remote LOCKOUT

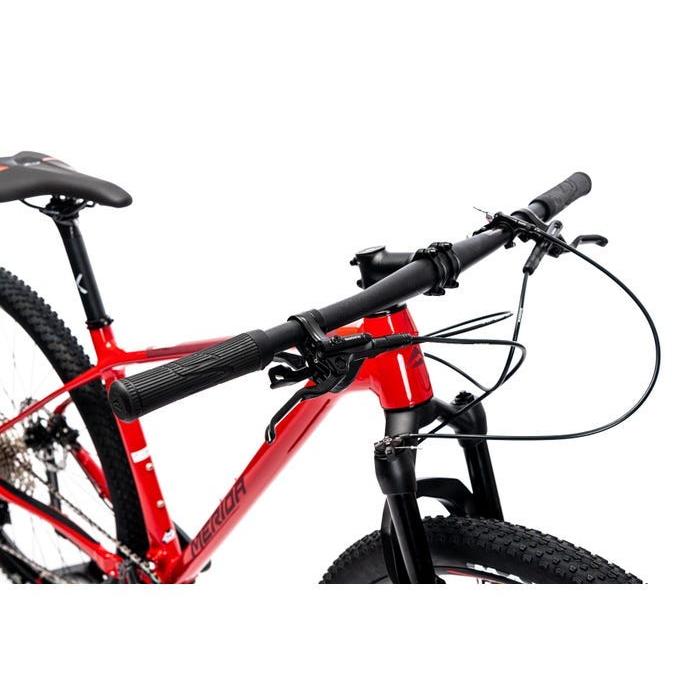

Handlebars

Merida Expert CC; 720mm width 0mm rise

Headset

Merida 2331

Grips

Merida Comp EC

Stem

Merida Expert CC aluminium; 31.8 diameter 6° angle

Bottom Bracket

Shimano Deore MT500-PA pressfit

Pedals

Not Included

Saddle

Merida Comp SL; V-Mount; including Merida minitool

Seat Post

Merida Comp CC aluminium; 30.9, diameter; 0mm setback

Seat Clamp

Merida Expert

Wheels

Wheel Size

29"

Rims

Merida Comp CC; 20mm inner width, aluminium

Hubs

F: Shimano Alivio MT400-B 110x15mm, 32h, centrelock | R: Shimano Alivio MT400-B 148x12mm, 32h, centrelock

Tyres

Maxxis Ikon; 29 x 2.2"; wire bead

Spokes

Black stainless

Groupset

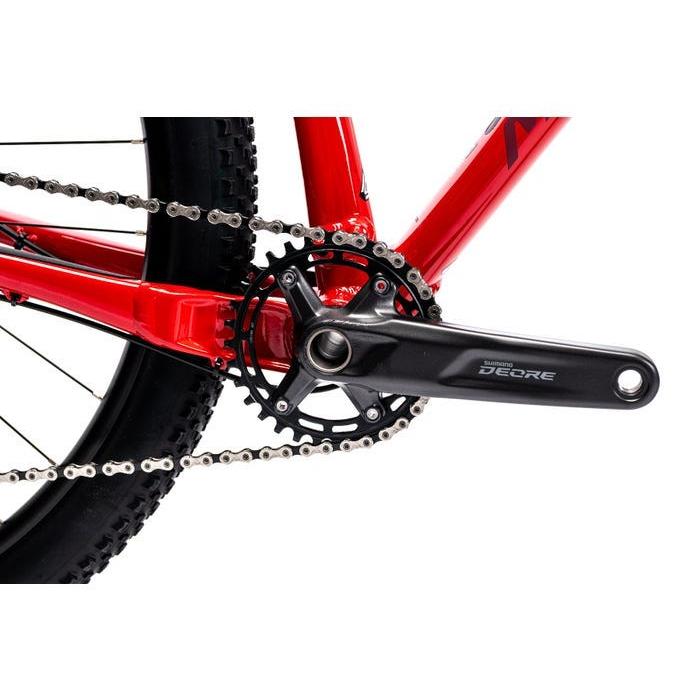

Crankset

Shimano Deore M5100 (Length 170mm S | 175mm M-XL)

Chain

KMC X11

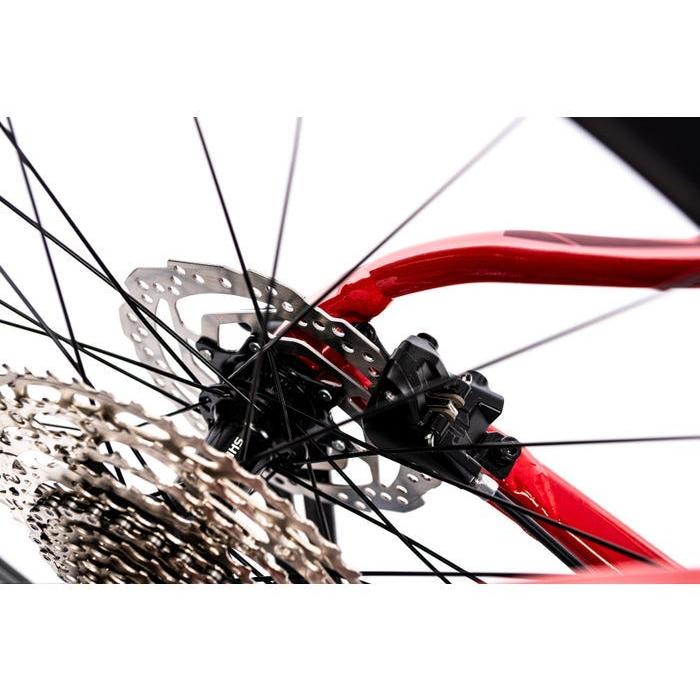

Brakes

Tektro M275; 2 piston

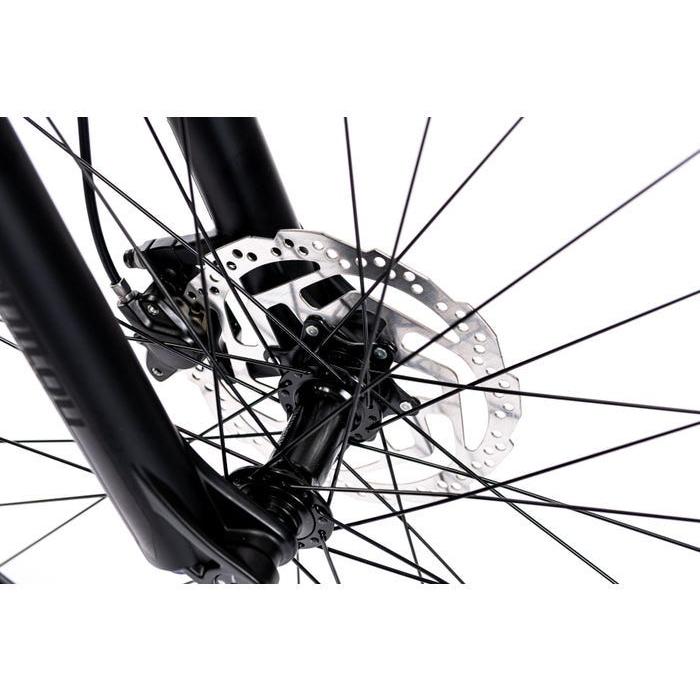

Front Rotor

Shimano RT10; 180mm

Rear Rotor

Shimano RT10; 160mm

Shifters

Shimano Deore M5100

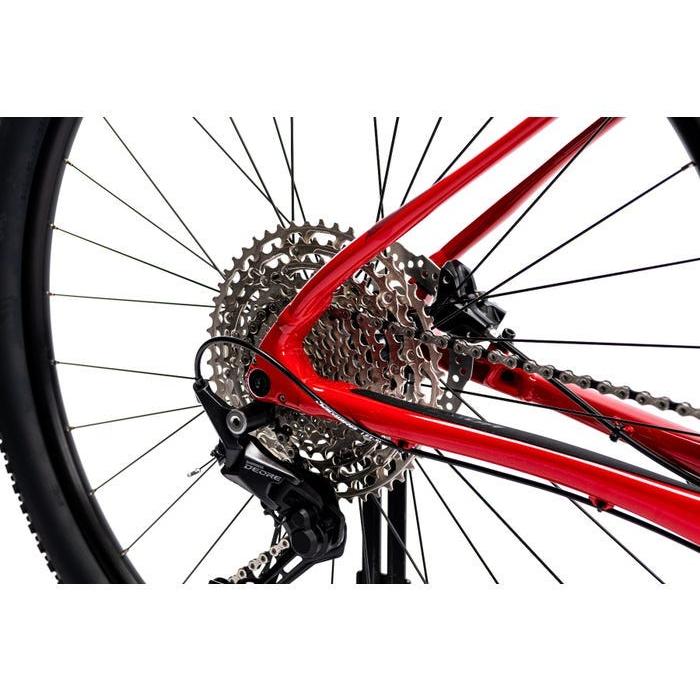

Rear Derailleur

Shimano Deore M5100 Shadow+, Clutch

Cassette

11 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine Limited Mountain Bike Glossy Race Red/Matt Red we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

XXL

Merida Big Nine Limited Mountain Bike Glossy Race Red/Matt Red geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
