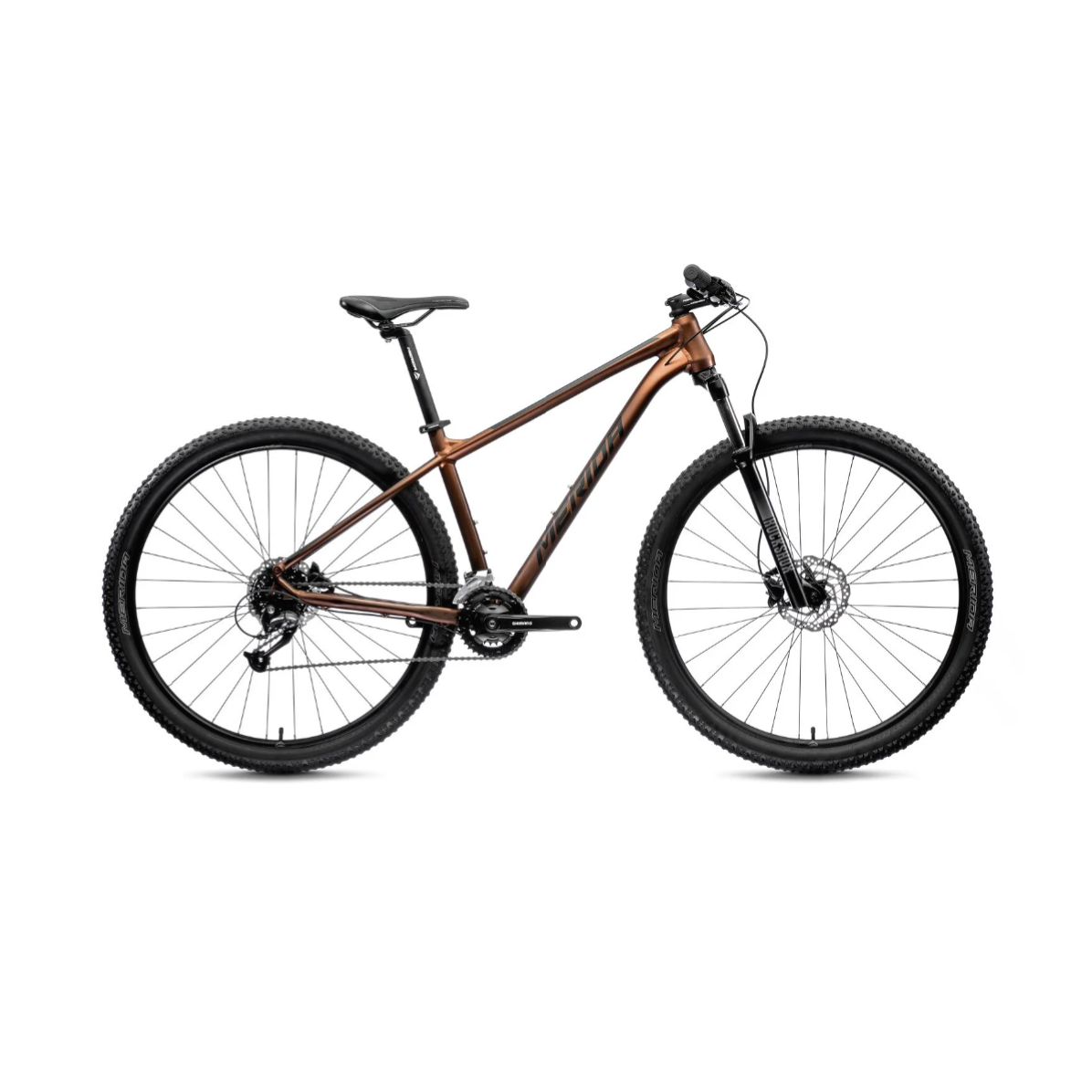

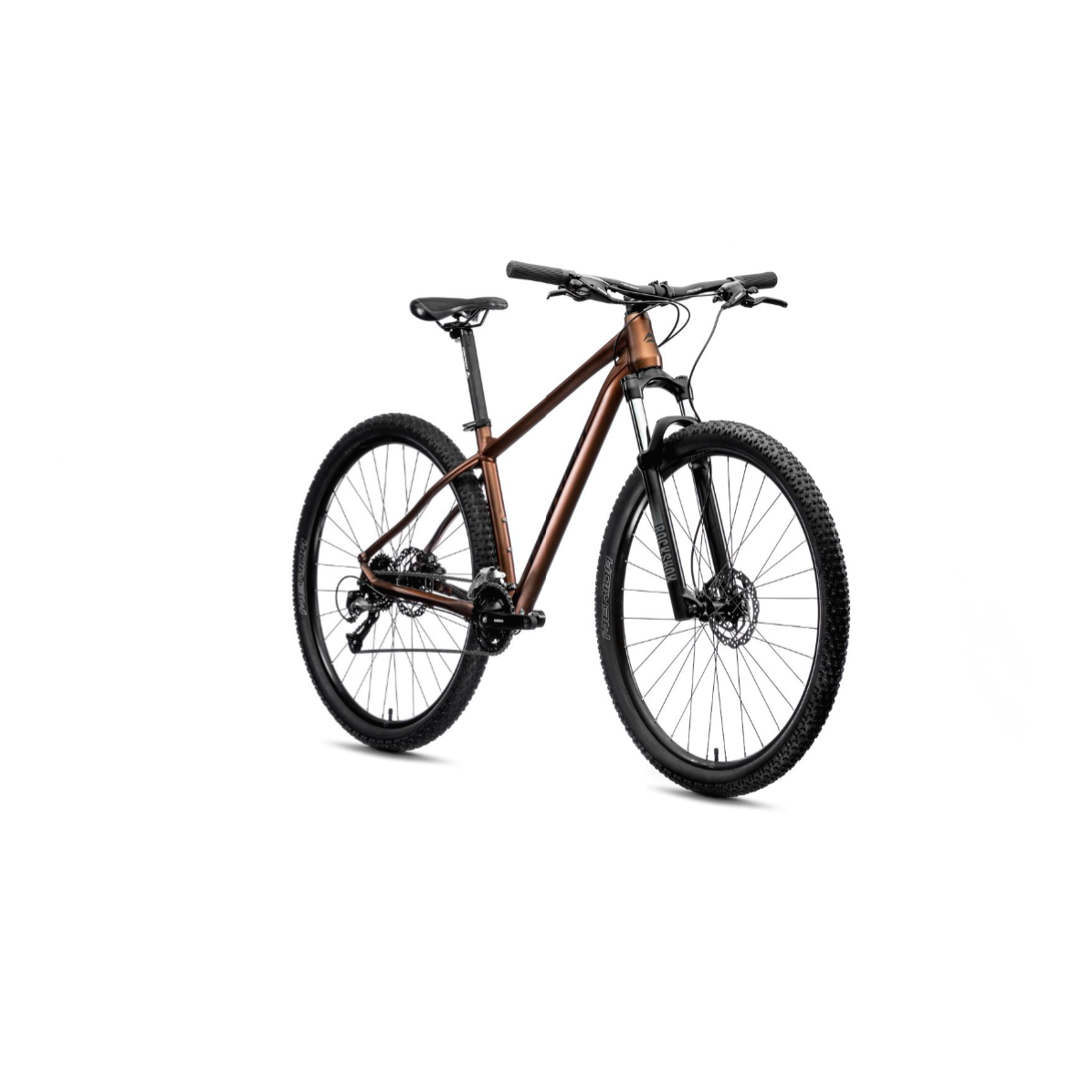

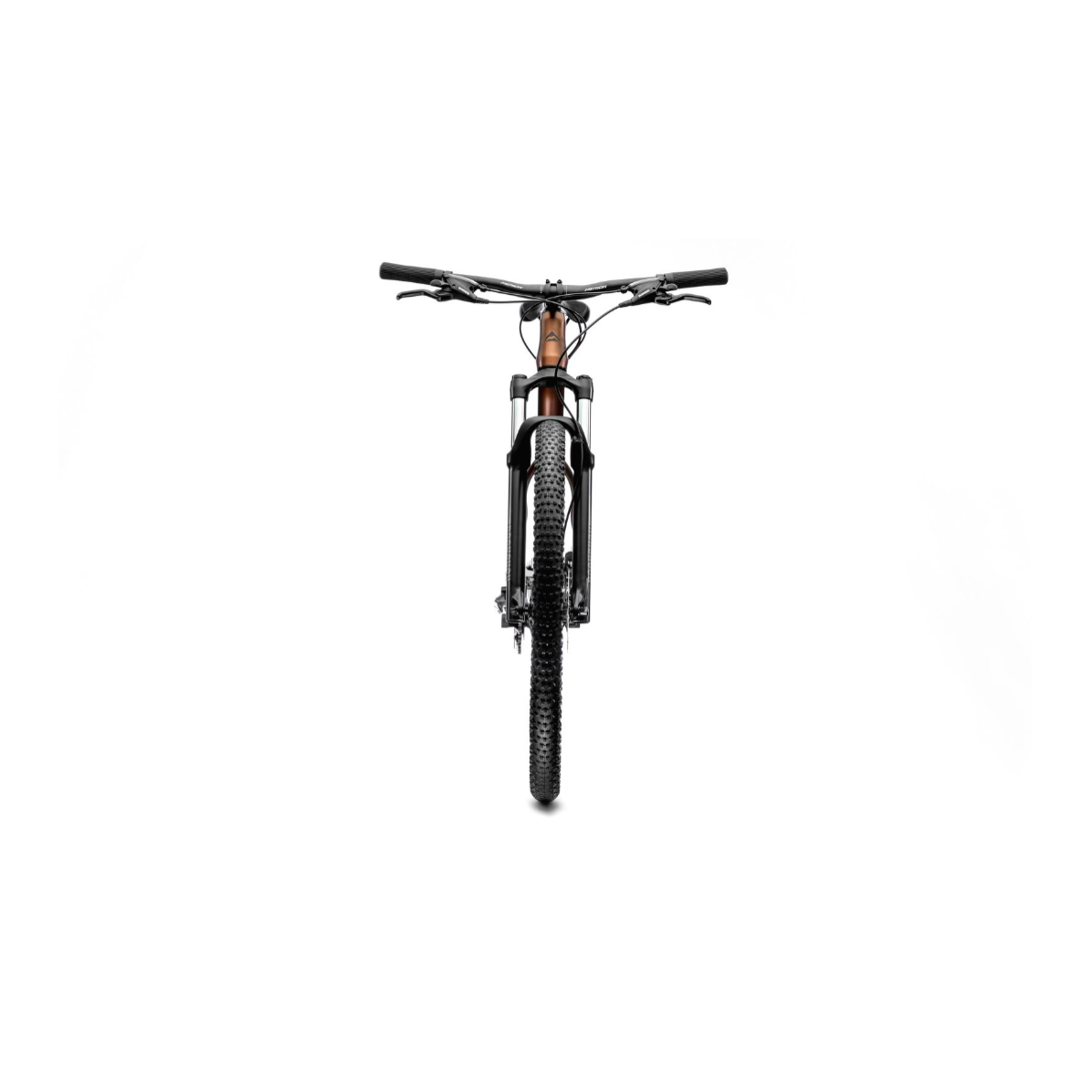

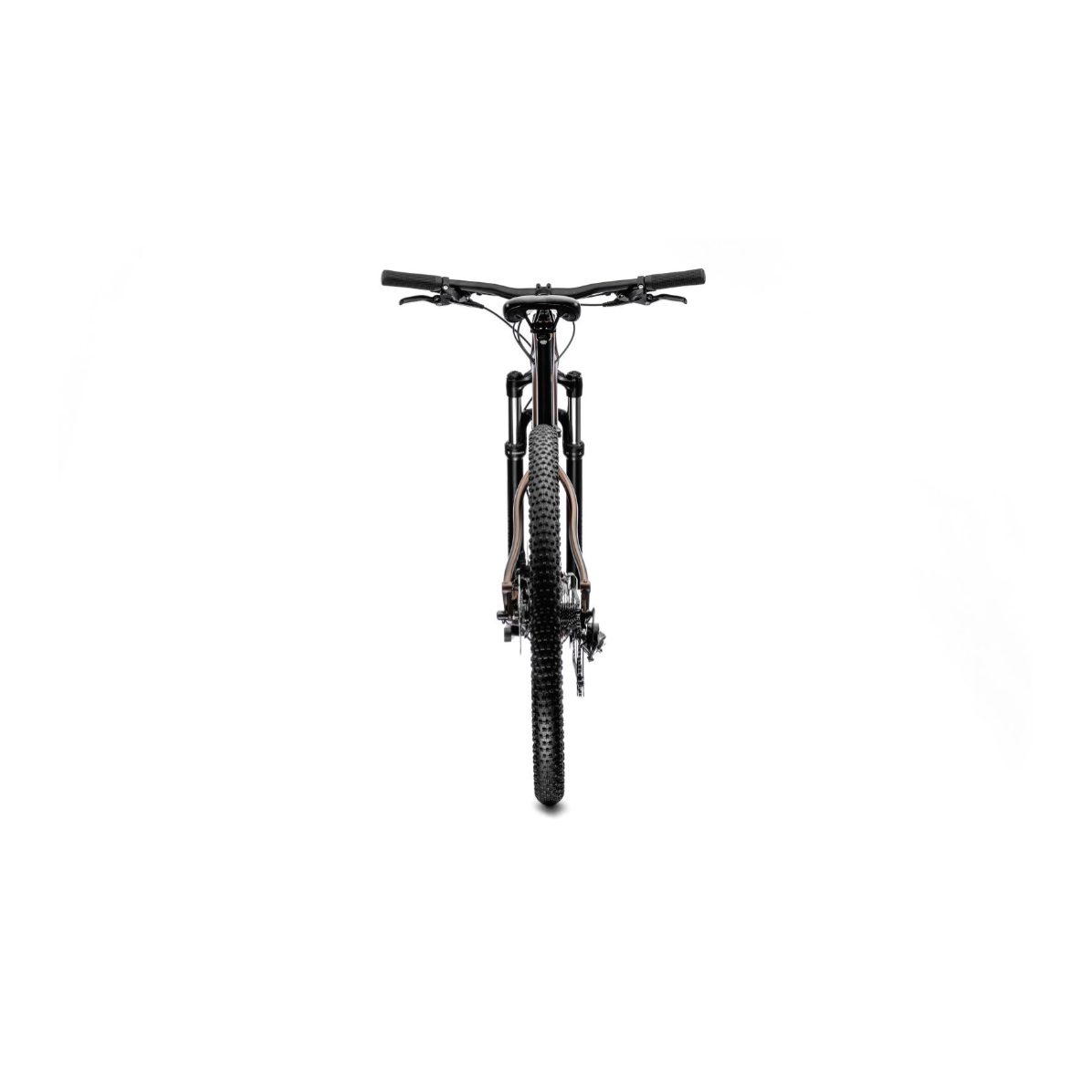

Merida Big Nine 60 Mountain Bike Matt Bronze/Black

Merida Big Nine 60 Mountain Bike Matt Bronze/Black

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

2 x 9 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Nine 60 Hardtail Mountain Bike is designed for entry-level off-road adventures. It features a lightweight Big Nine Alloy frame with internally routed cables for reduced maintenance and a clean look. The bike is equipped with a 2x9 speed Shimano Drivetrain, providing smooth gear changes and efficient climbing. The RockShox Judy TK Fork offers 100mm travel and lockout, balancing agility and rough terrain handling. The 29" Merida Wheels with 2.2x29" tires ensure a quick, smooth ride. Shimano Hydraulic Disc Brakes provide reliable control for confident descents and turns. This bike is ideal for beginners looking to enhance their skills.

Key Features

Internal Cable Routing: Cables are routed through the frame, entering and exiting through smooth sockets. This design keeps the bike looking neat while protecting the cables from moisture and dirt.
Racelite 61 Aluminium: We use a minimum of 6061 aluminium, allowing for the creation of lighter and more advanced frames. Additional heat treatment and double-butted wall thicknesses are used to produce light and stiff frames.
X-Taper Headtube: Our X-Tapered headtube accommodates a tapered fork, which provides superb stiffness and precision for confidence-inspiring steering.
TFS: Technoforming is a mechanical forming process that shapes the tubes using negative molds, sometimes combined with an internal metal core.

Specifications

Product Overview

Product

Merida Big Nine 60 Mountain Bike Matt Bronze/Black

Brand

Merida

Parent SKU

21MeridaBigNine60MattBronzeBlack

Size SKUs

MD: MEHA2195968
LG: MEHA2195979
XL: MEHA2195980
XXL: MEHA2195991

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Brown

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

2 x 9

Front Travel

100mm

Weight Limit

135kg (includes bike)

Build

Frame

Alloy

Fork

Rock Shox Judy TK; Coil; 100 STR Lockout; 46mm fork offset

Handlebars

MERIDA CC; MAT aluminium; 690 Wide; 15 Rise

Headset

MERIDA M2345

Grips

MERIDA EC

Stem

MERIDA CC; MAT aluminium; 31.8 Diameter; 6 Angle

Bottom Bracket

Shimano BB-UN100

Pedals

Plastic VPE-891

Saddle

MERIDA Sport comfort

Seat Post

MERIDA CC; MAT aluminium; 30.9 Diameter; 15 Setback

Wheels

Wheel Size

29"

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock

Tyres

MERIDA K1080; 29x2.2"; wire

Spokes

Black steel

Groupset

Crankset

Shimano MT101-2; 36-22 teeth

Chain

KMC M99

Brakes

POWER DS 100, 2 piston, hydraulic disc

Front Rotor

Shimano RT10 160mm

Rear Rotor

Shimano RT10 160mm

Shifters

microSHIFT Xpress

Front Derailleur

Shimano M2020-TS

Rear Derailleur

Shimano RD-M370

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine 60 Mountain Bike Matt Bronze/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

XXL

Merida Big Nine 60 Mountain Bike Matt Bronze/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

628

642

656

Reach

398

414

429

Top Tube Length

590

610

630

Seat Tube Length

430

470

510

Seat Tube Angle

73.0

Fork Length

Head Tube Length

115

130

145

Head Tube Angle

70.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

727

763

800

Minimum Seat Height

Maximum Seat Height
