$800 Off Full Price

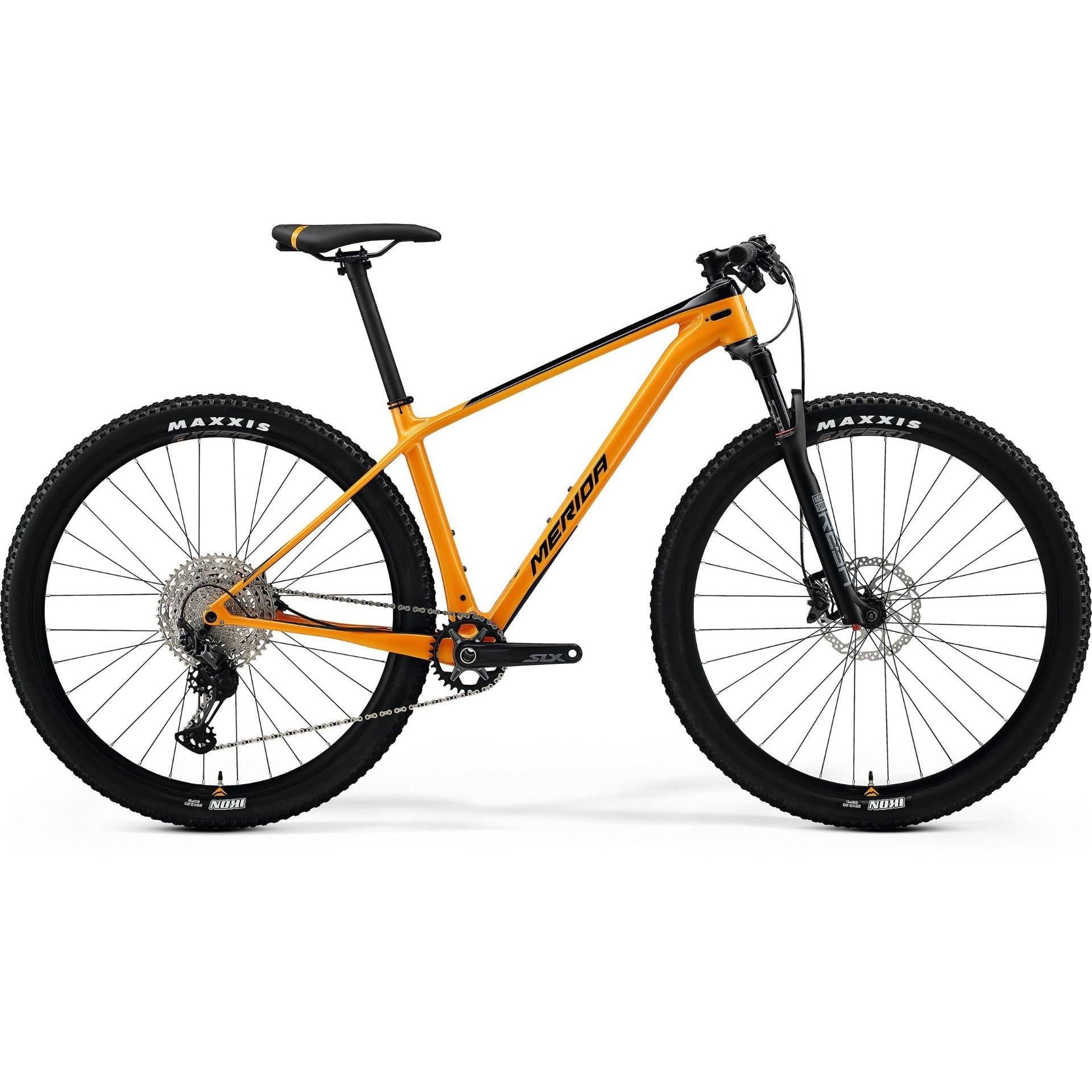

Merida Big Nine 5000 Hardtail MTB Black/Orange

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Carbon Frame/ RockShox Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano XT Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida BIG.NINE 5000 offers impressive performance with its carbon frame and RockShox fork, making it a great choice for longer rides. Upgrading other components feels worthwhile due to the solid foundation provided by these features.

Key Features

Merida CF3 Carbon Frame
1x12 Shimano Drivetrain with Clutch Rear Derailleur
Shimano Deore 2 Piston Hydraulic Disc Brakes
Rock Shox Reba RL Fork 100mm Travel
Carbon Seat Post

Specifications

Product Overview

Product

Merida Big Nine 5000 Hardtail MTB Black/Orange

Brand

Merida

Parent SKU

22MeridaBig.Nine5000Black/Orange

Size SKUs

SM: MEHC2240318
MD: MEHC2240329
LG: MEHC2240330
XL: MEHC2240341

Year Model

2022

Product Features

Frame Material

Carbon

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

100mm

Weight Limit

135kg (includes bike)

Build

Frame

BIG.NINE CF3; MAT carbon; 29 WHS; 148x12 AST; BB92 BBR

Fork

Rock Shox Reba RL; Air; 100 STR; Tapered; Remote lockout; 51mm fork offset

Handlebars

MERIDA EXPERT CC; MAT aluminium; 740 WHB; flat

Headset

FSA NO.55E

Stem

MERIDA EXPERT CC; MAT aluminium; 31.8 DSH; -6 ASD

Bottom Bracket

Shimano MT500-PA pressfit

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT CC; MAT carbon; 30.9 DSP; 0 SSB

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT CC; 22.8 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Tyres

Maxxis Ikon; 29x2.2"; wire

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano SLX; 32 ATC

Chain

KMC X12

Brakes

Shimano M6100; 2 piston

Rear Derailleur

Shimano XT M8100 Shadow+

Cassette

12 Speed

Frequently Asked Questions

What is the Merida BIG.NINE 5000 used for?

The Merida BIG.NINE 5000 is used for longer rides and offers impressive performance on various terrains.

Why choose the Merida BIG.NINE 5000?

Choose the Merida BIG.NINE 5000 for its solid foundation, featuring a carbon frame and RockShox fork, which makes upgrading other components worthwhile.

Who is the Merida BIG.NINE 5000 designed for?

The Merida BIG.NINE 5000 is designed for riders seeking a high-performance hardtail MTB for longer rides.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine 5000 Hardtail MTB Black/Orange we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Modern Trail Geometry

Our carbon and LITE aluminium models feature a long 422 mm reach, steep 73.5 seat angle, slack 70 head angle and an 80 mm stem (BIG.NINE M), affording the BIG.NINE next-generation XC geometry.

Dropper Post Ready

Feature a 30.9 mm seat post with an the enhanced connection area that increases the strength around the top tube/seat tube join and allows the option of fitting a dropper seat post.

Classic Hardtails

Hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we were able to gain in 48 years. The BIG.NINE range symbolises the symbiosis between modern frame technology, attention to detail and craftsmanship.

Riders Height (cm)

XXS

XXL

Merida Big Nine 5000 Hardtail MTB Black/Orange geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
