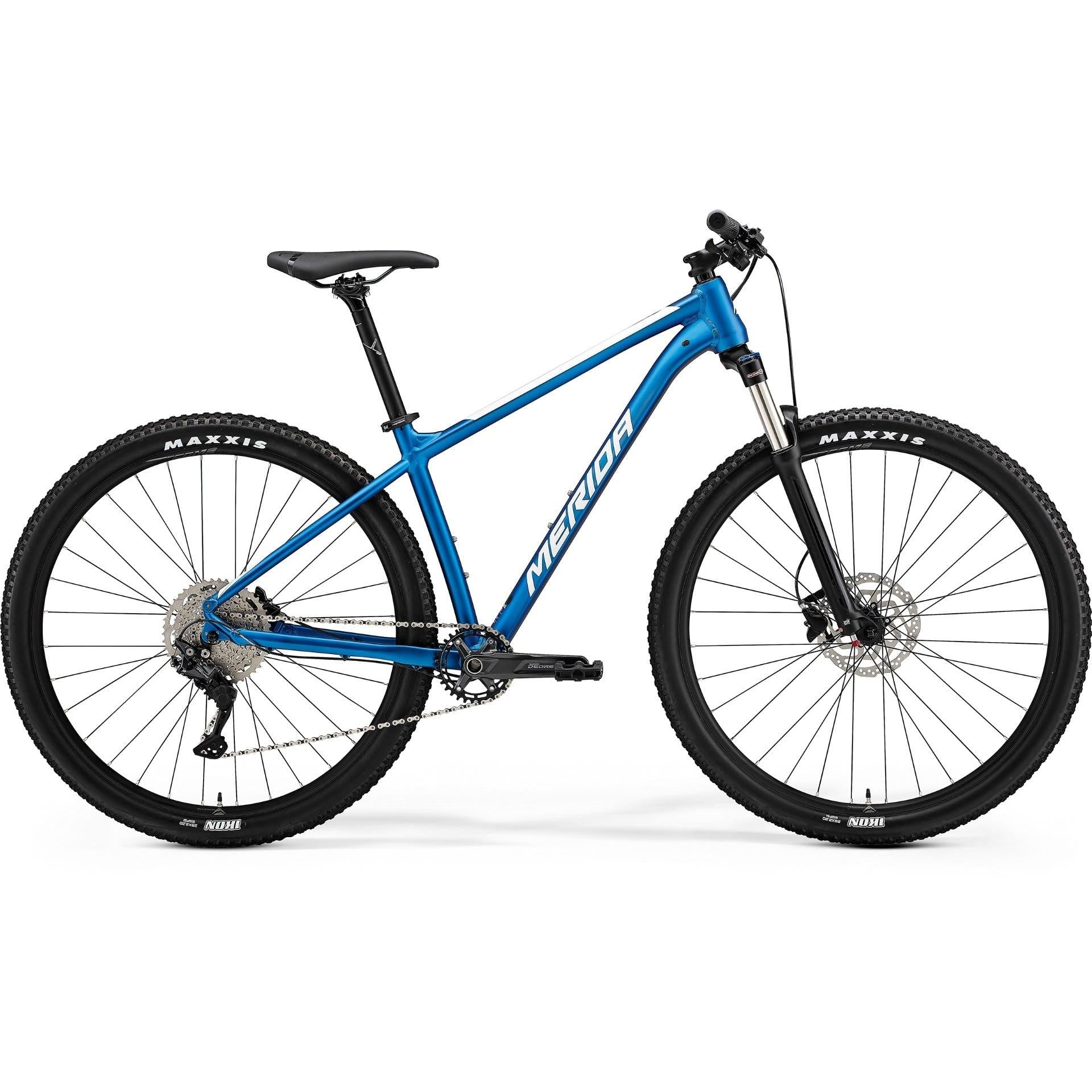

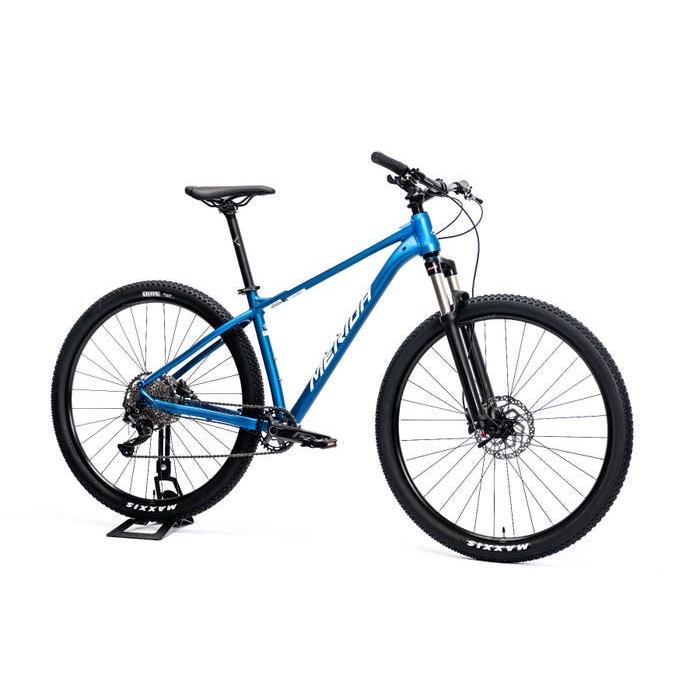

Merida Big Nine 200 Mountain Bike Matt Blue/White

Merida Big Nine 200 Mountain Bike Matt Blue/White

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 10 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Nine 200 Mountain Bike is a lightweight entry-level hardtail with reliable components. It features a Shimano Deore drivetrain with a 1x10 setup, offering a wide range for climbs and descents. The bike's cockpit is streamlined with a single gear shifter on the right. Equipped with Tektro Hydraulic disc brakes and a 180mm front rotor, it ensures reliable stopping power. The lightweight aluminum frame accommodates 29 x 2.25" tires and a 135 x 9mm axle. The Suntour XCR32 LOR fork, with 100mm of adjustable air suspension, enhances grip and efficiency, especially with its lockout feature. Store staff can assist with suspension setup for optimal performance.

Key Features

Suntour XCR32 LOR Fork with 100mm air travel and lockout
Smooth 29-inch wheels
Alloy frame with internal cable routing
Tektro hydraulic disc brakes with 180mm front
1x10 speed Shimano Deore drivetrain
Clutch in Shimano Deore Shadow+ derailleur

Specifications

Product Overview

Product

Merida Big Nine 200 Mountain Bike Matt Blue/White

Brand

Merida

Parent SKU

22MeridaBig.Nine200MattBlue/White

Size SKUs

MD: MEHA2237364
LG: MEHA2237375
XL: MEHA2237386
XXL: MEHA2237397

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Blue

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

100mm

Weight

12.95kg

Weight Limit

135kg (includes bike)

Build

Frame

BIG.NINE TFS III; MAT aluminum; 29 WHS; 135x9 AST; BSA BBR

Fork

Suntour XCR32 LOR; Air; 100mm suspension travel LOCKOUT

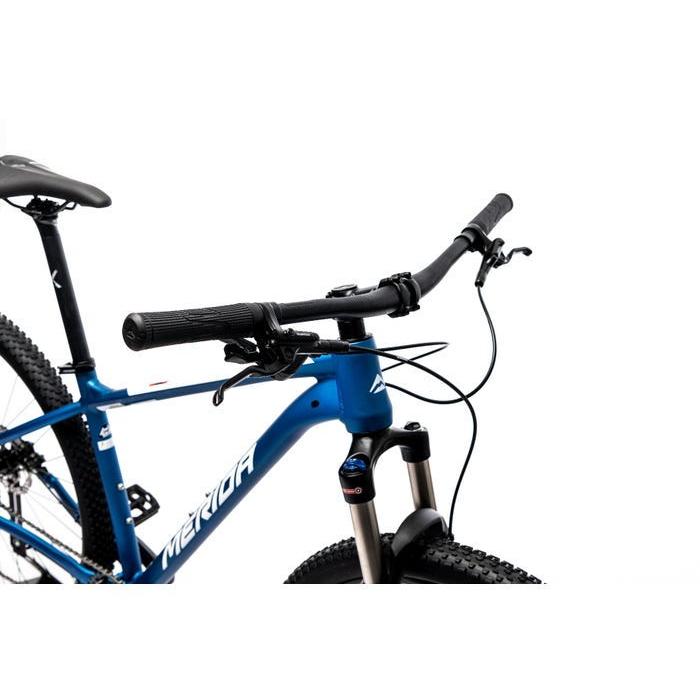

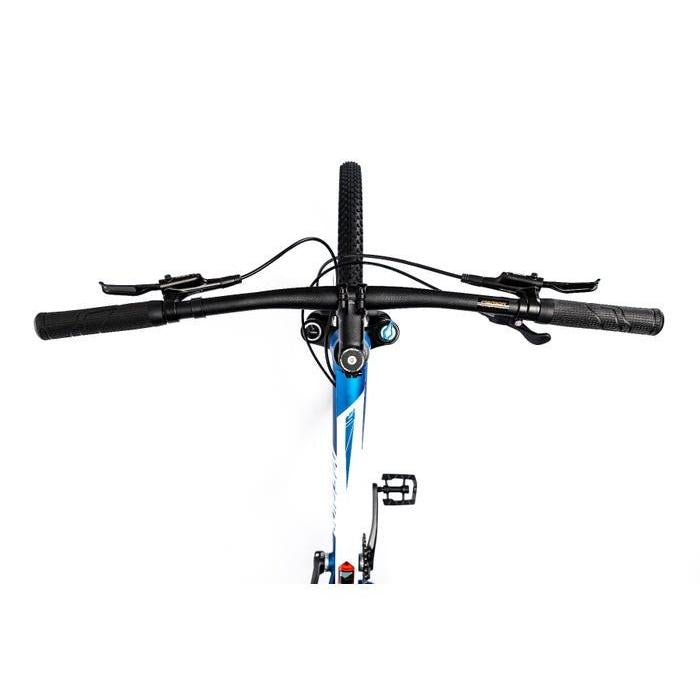

Handlebars

Merida Expert CC; 720mm width 10mm rise

Headset

Merida M2345

Grips

Merida Comp EC

Stem

Merida CC aluminium; 31.8 diameter 6° angle

Bottom Bracket

Shimano BB-UN100

Pedals

VP VPE-891

Saddle

Merida Comp SL; V-Mount

Seat Post

Merida Comp CC aluminium; 30.9, diameter; 0mm setback

Wheels

Wheel Size

29"

Rims

Merida Comp CC; 20mm inner width; aluminium

Hubs

F: Shimano Tourney TX HB-TX505 100x9mm, 32h, centrelock | R: Shimano Tourney TX HB-TX505 135x9mm, 32h, centrelock

Tyres

Maxxis Ikon 29 x 2.20"; wire bead

Spokes

Black stainless

Groupset

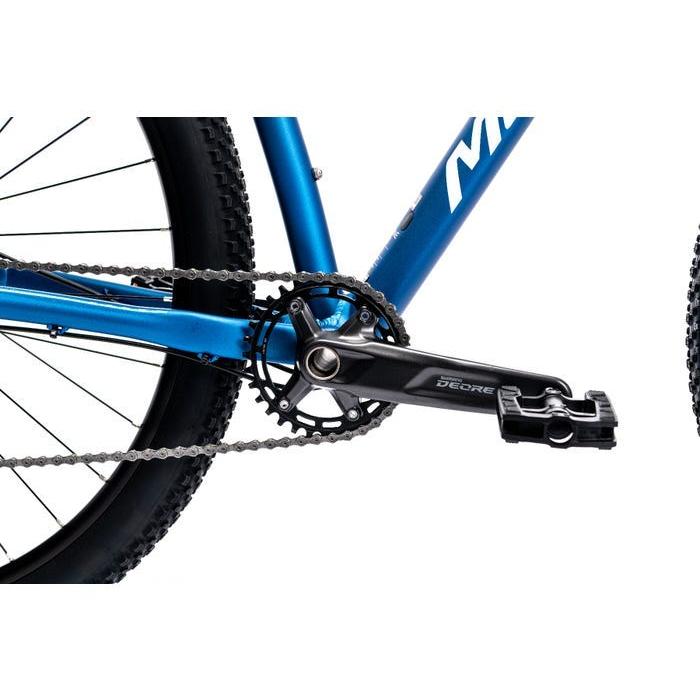

Crankset

Shimano Deore M5100 Length 175mm

Chain

KMC X10

Brakes

Tektro M275; 2 piston

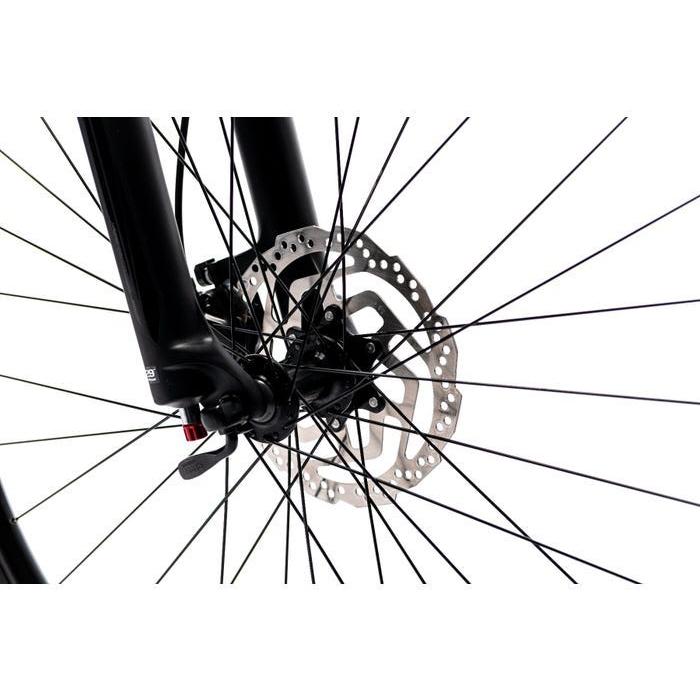

Front Rotor

Shimano RT10; 180mm

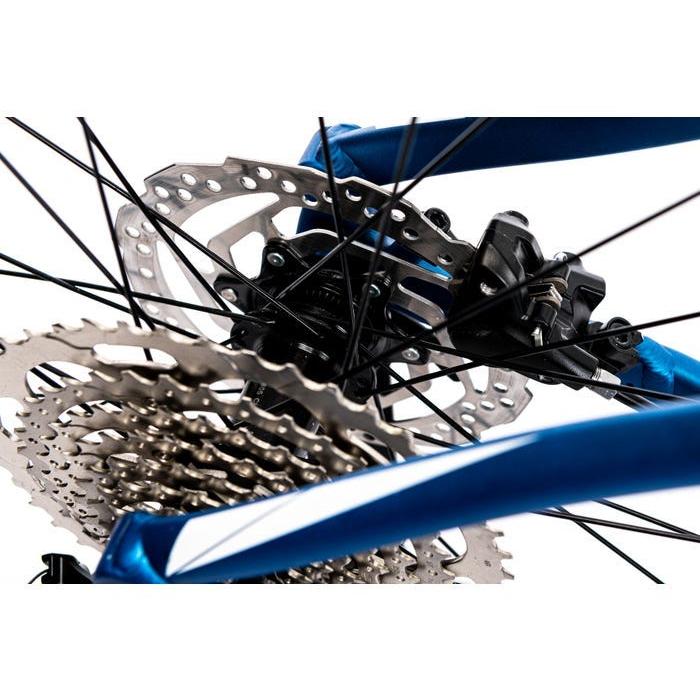

Rear Rotor

Shimano RT10; 160mm

Shifters

Shimano Deore M4100

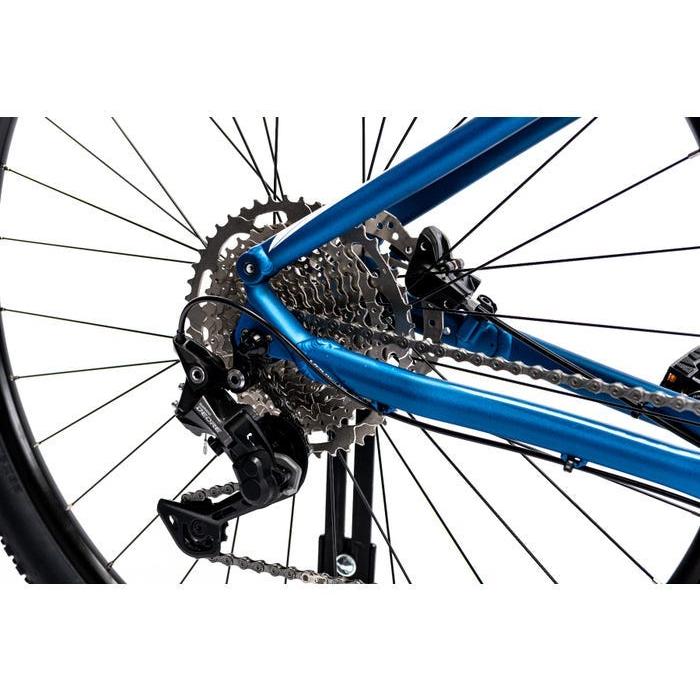

Rear Derailleur

Shimano Deore M5120 Shadow+, Clutch

Cassette

10 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine 200 Mountain Bike Matt Blue/White we suggest the following size.

More playful More stable

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

XXL

Merida Big Nine 200 Mountain Bike Matt Blue/White geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
