Discontinued

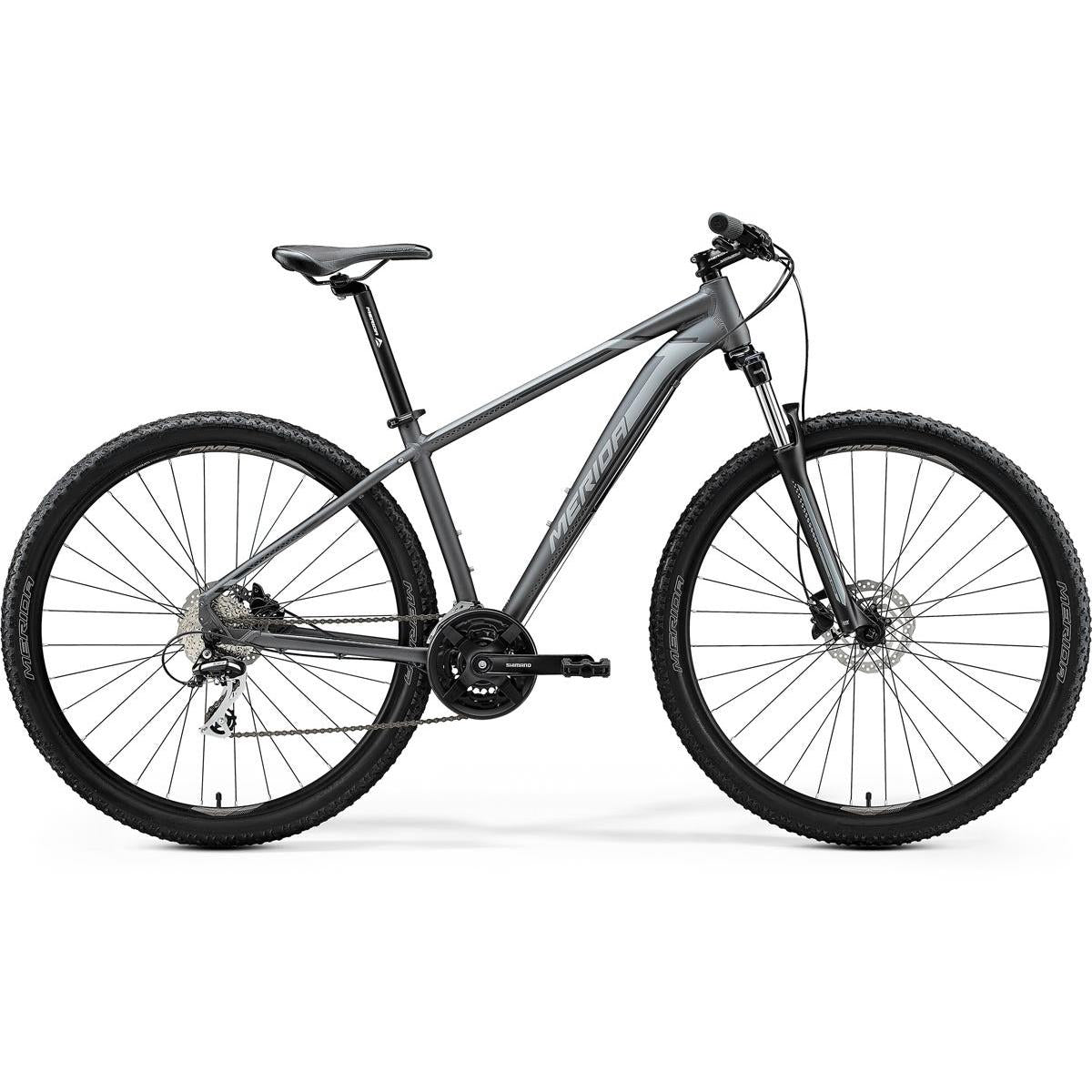

Merida Big Nine 20 D Mountain Bike Matt Anthracite/Black/Silver

Brand: Merida

SKU: MEHA2040725

Size: MD

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

3 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Nine 20D is designed for trail enjoyment and outdoor exploration. It features a Merida 6061 series double butted and technoformed aluminum frame, offering a combination of toughness and lightness for a swift, durable ride. The bike's hardtail-specific geometry ensures a comfortable ride with responsive handling at high speeds. Equipped with a 100mm travel SR Suntour XCM HLO Fork, it provides comfort on rough trails.

Specifications

Product Overview

Product

Merida Big Nine 20 D Mountain Bike Matt Anthracite/Black/Silver

Brand

Merida

Parent SKU

20MeridaBigNine20DMattAnthraciteBlackSilver

Size SKUs

MD: MEHA2040725
LG: MEHA2040736
XL: MEHA2040747
XXL: MEHA2040758

Year Model

2020

Product Features

Frame Material

Alloy

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

3 x 8

Front Travel

100mm

Weight Limit

135kg (includes bike)

Build

Frame

BIG.NINE SPEED N

Fork

Suntour XCM HLO; Coil; 100 STR; Lockout

Handlebars

MERIDA CC; 690 WHB; 15 RHB

Headset

FSA NO.10

Grips

MERIDA EC

Stem

MERIDA CC; 31.8 DSH; 6 ASD

Bottom Bracket

FSA TH-7420ST-W, Cartridge Bearing

Pedals

VP VPE-891

Saddle

MERIDA Sport comfort

Seat Post

MERIDA CC; 30.9 DSP; 15 SSB

Wheels

Wheel Size

29"

Rims

MERIDA CC; 17 IWR

Hubs

F=Shimano TX505; 100x9 WHF; 32 SPH; Centerlock R=Shimano TX505; 135x9 WHR; 32 SPH; Centerlock

Tyres

MERIDA K1080; 29x2.2"; wire

Spokes

Black steel

Groupset

Crankset

Shimano TY301; 42-34-24 ATC

Chain

KMC M700

Brakes

Shimano ST-EF505; BR-MT200 brake caliper

Shifters

Shimano ST-EF505

Front Derailleur

Shimano FD-TY700

Rear Derailleur

Shimano RD-M360

Cassette

8 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine 20 D Mountain Bike Matt Anthracite/Black/Silver we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

XXL

Merida Big Nine 20 D Mountain Bike Matt Anthracite/Black/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
