Discontinued

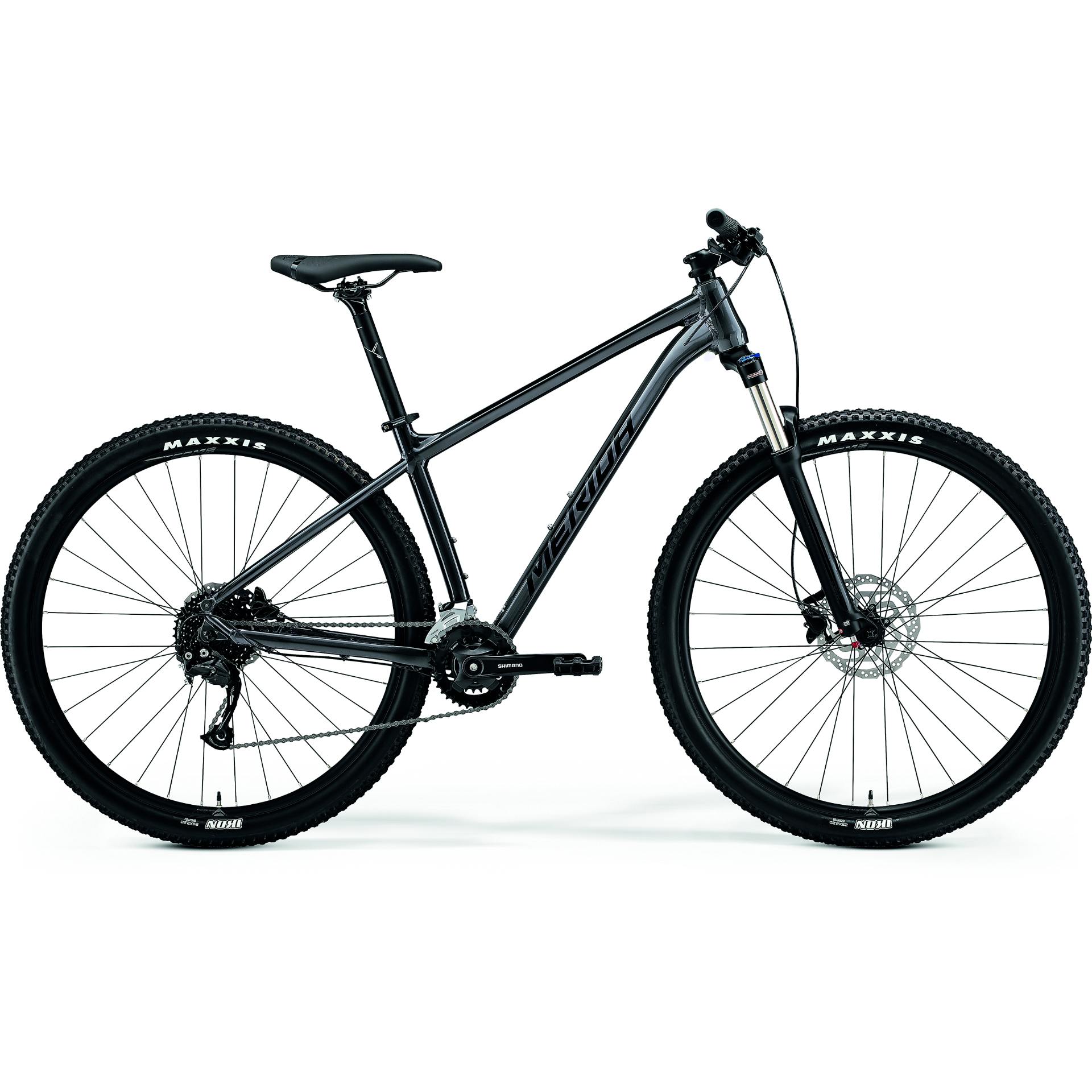

Merida Big Nine 100 Mountain Bike Anthracite/Black

Merida Big Nine 100 Mountain Bike Anthracite/Black

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Altus Groupset

2 x 9 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

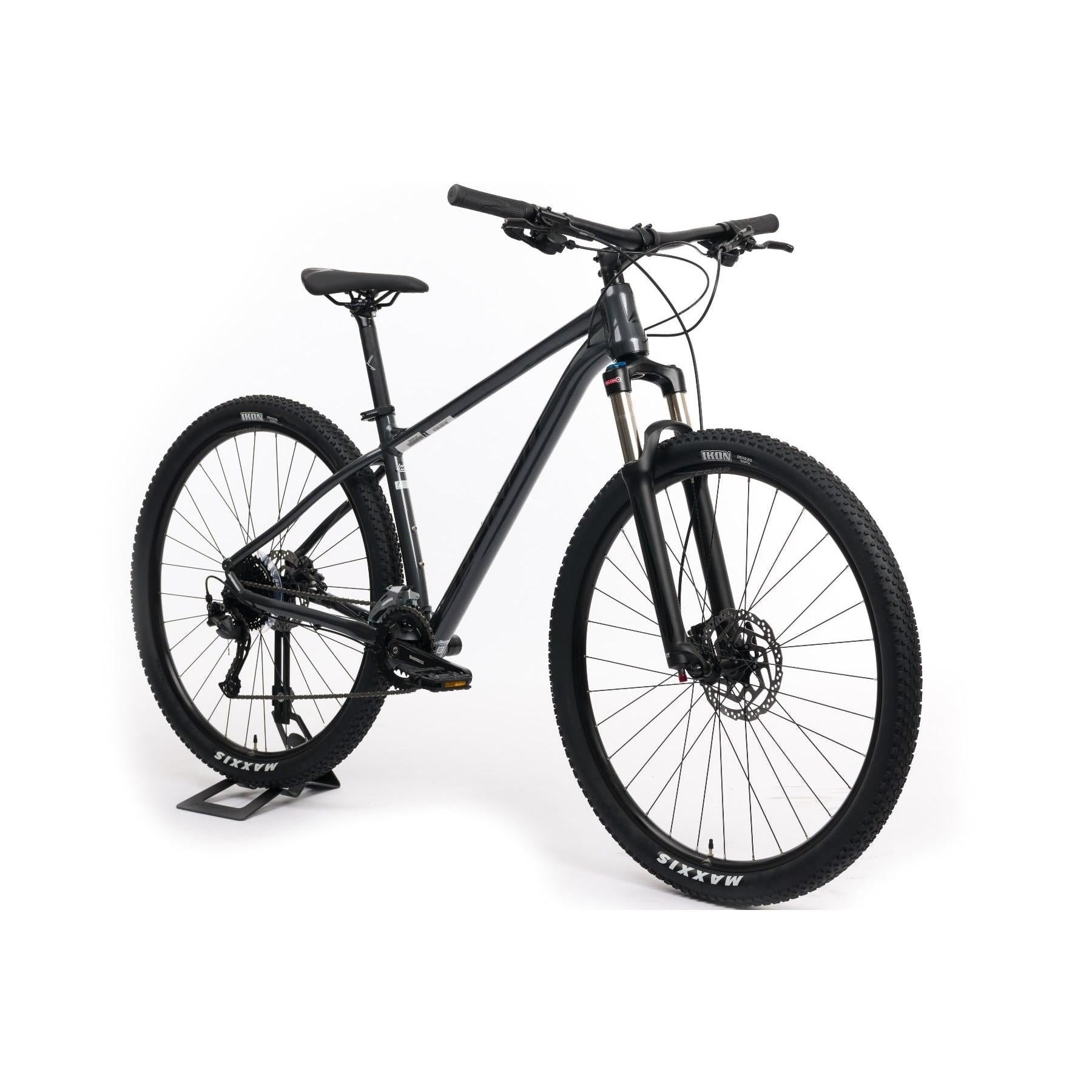

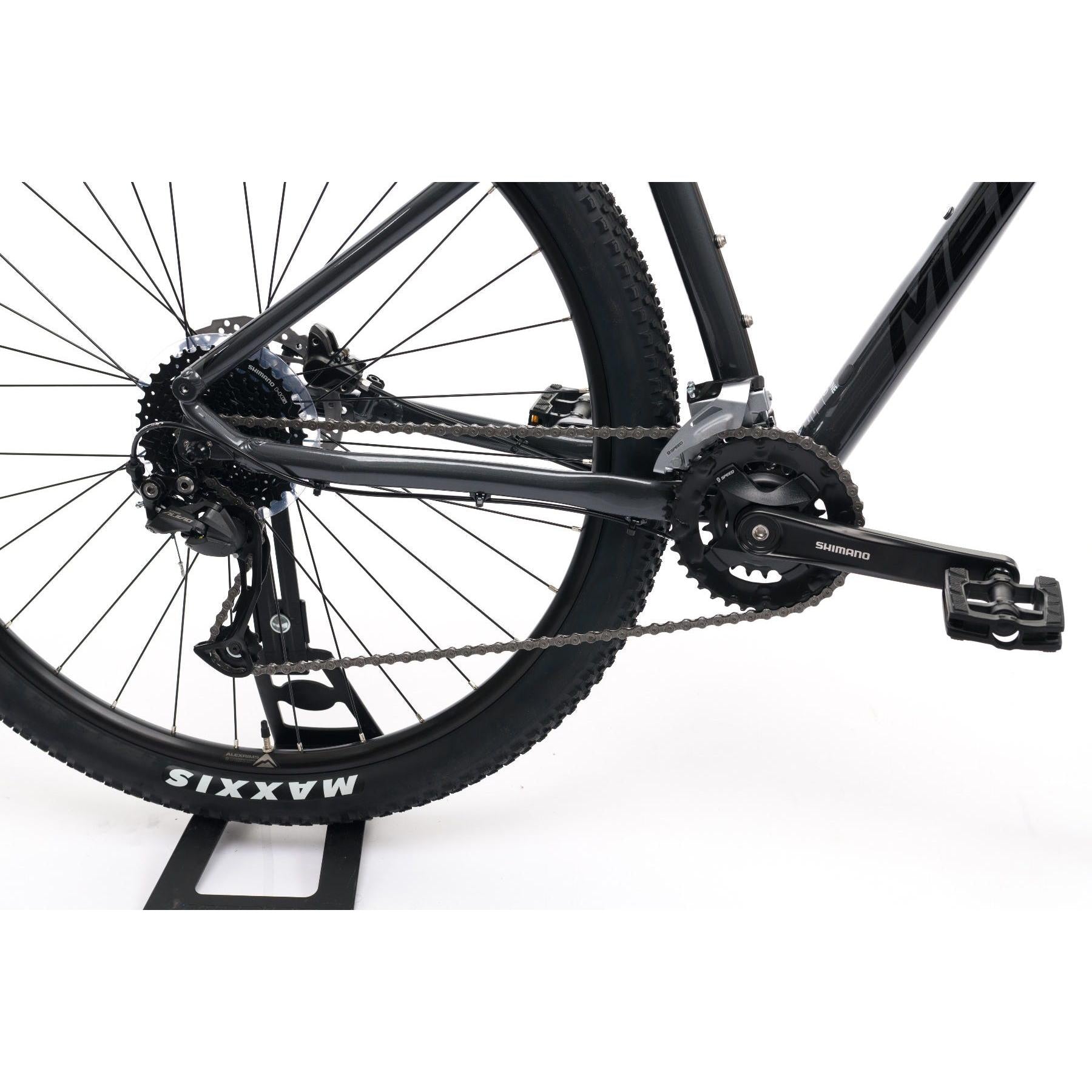

The Merida Big Nine 100 Hardtail Mountain Bike features a lightweight Big Nine Alloy frame with internally routed cables for reduced maintenance and a clean look. It is equipped with a 2x9 speed Shimano Alivio Drivetrain, providing smooth efficiency and reliable gear changes, making it ideal for tackling challenging climbs.

Key Features

Suntour XCR32 LOR Fork with Lockout 100mm Travel
Alloy frame
Tektro M275 Hydraulic Disc Brakes
2x9 speed Shimano Alivio Drivetrain
Maxxis Ikon 29-inchx2.2-inch Tyres

Specifications

Product Overview

Product

Merida Big Nine 100 Mountain Bike Anthracite/Black

Brand

Merida

Parent SKU

21MeridaBigNine100AnthraciteBlack

Size SKUs

MD: MEHA2194871
LG: MEHA2194882
XL: MEHA2194893
XXL: MEHA2194901

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

2 x 9

Front Travel

100mm

Weight Limit

135kg (includes bike)

Build

Frame

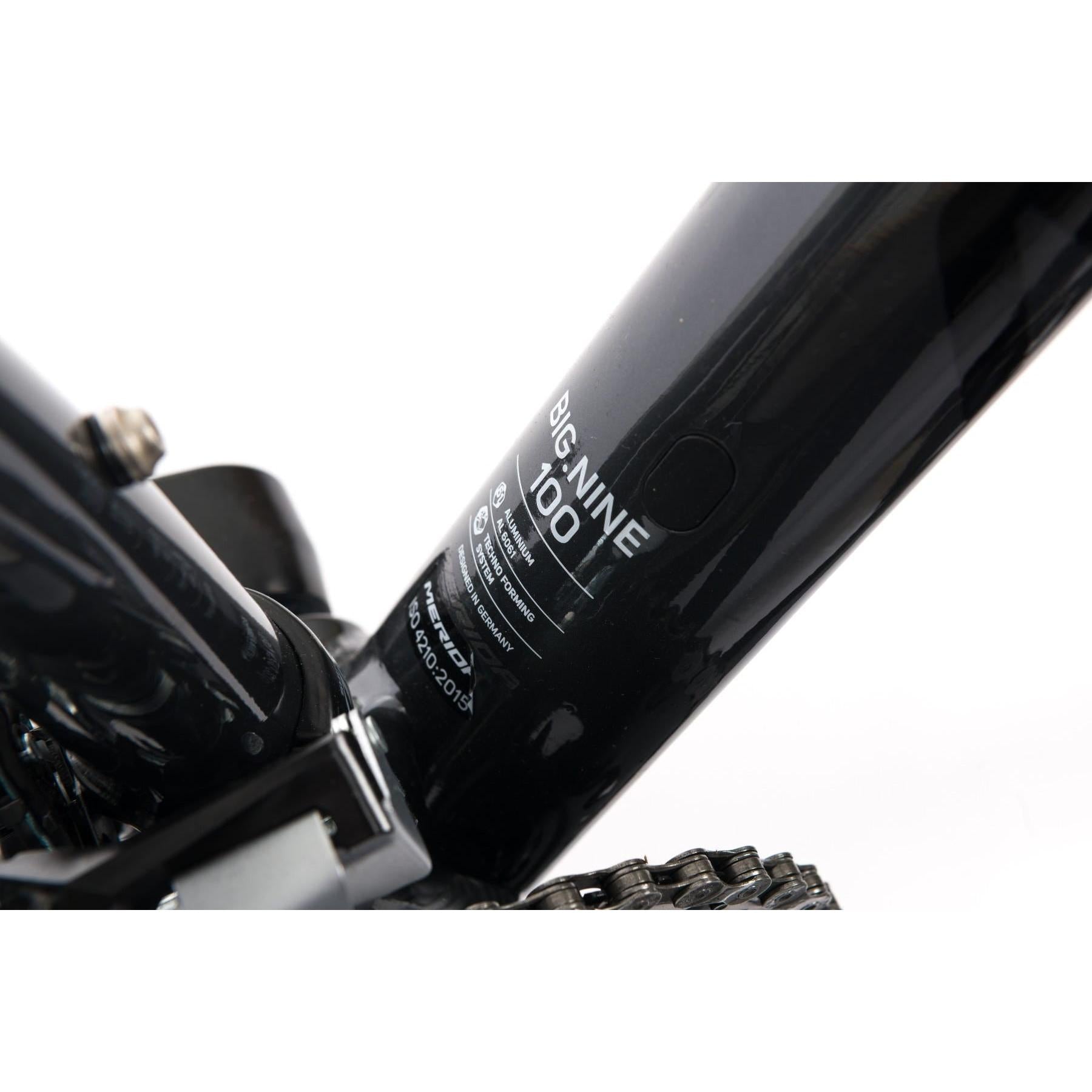

BIG.NINE TFS III; MAT aluminum; 29 WHS; 135x9 AST; BSA BBR

Fork

Suntour XCR32 LOR; Air; 100 STR; Lockout; 46mm fork offset

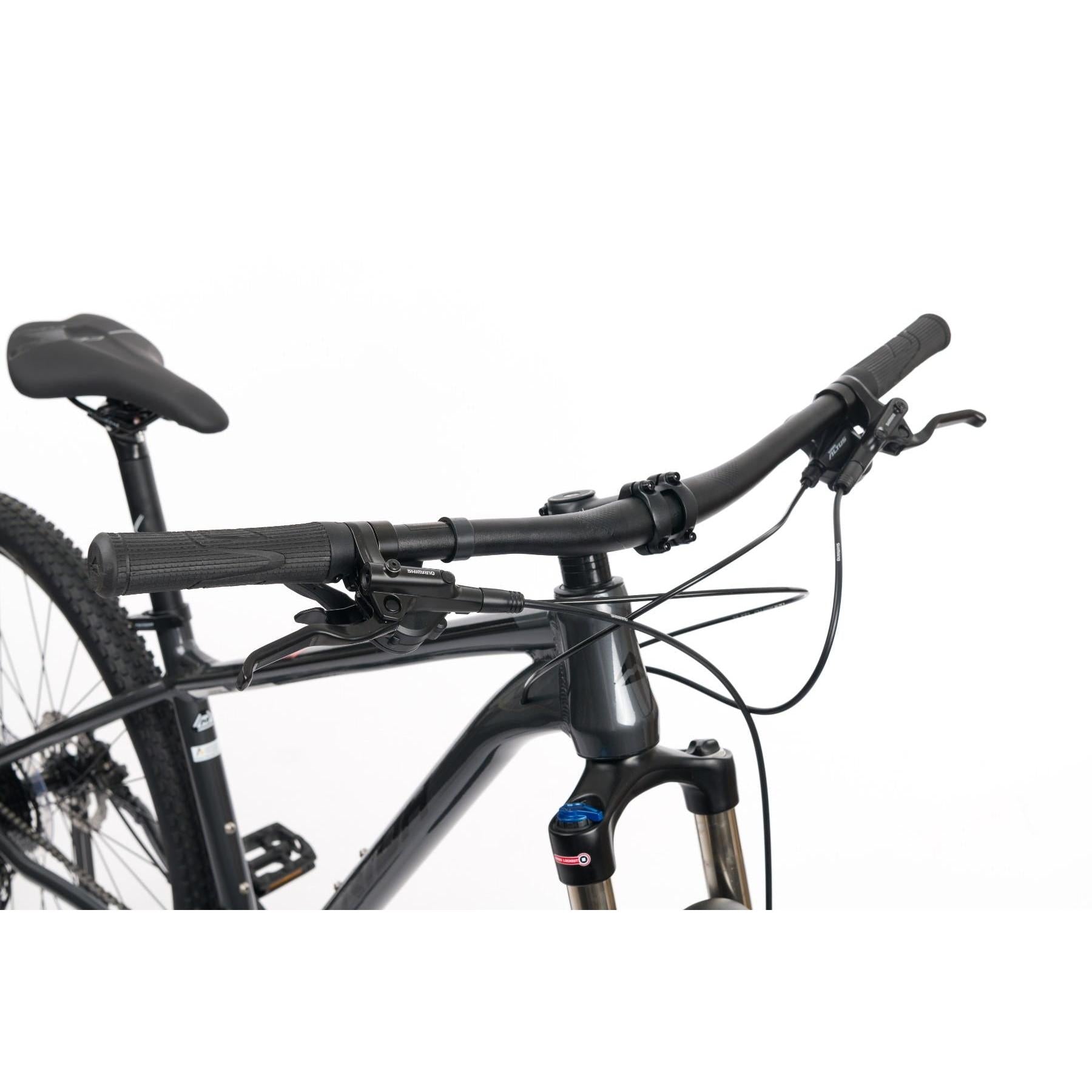

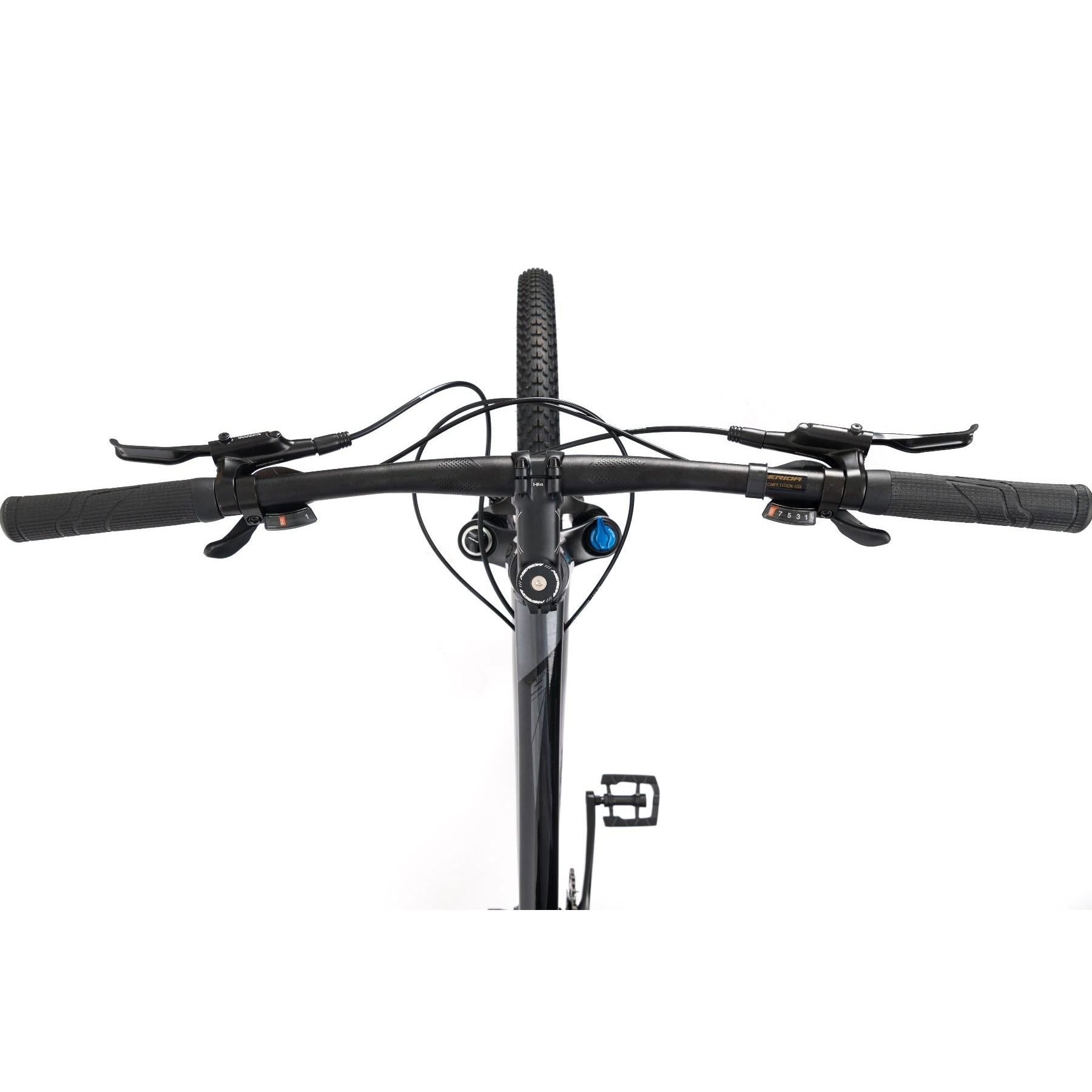

Handlebars

MERIDA EXPERT CC; MAT aluminium; 720 Wide; 10 Rise

Headset

MERIDA M2345

Grips

MERIDA COMP EC

Stem

MERIDA COMP CC; MAT aluminium; 31.8 Diameter; 6 Angle

Bottom Bracket

FSA TH-7420ST Cartridge Bearing

Pedals

Plastic VPE-891

Saddle

MERIDA COMP CC

Seat Post

MERIDA COMP CC; MAT aluminium; 30.9 Diameter; 0 Setback

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC; 20 IWR; MAT aluminium

Hubs

Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock

Tyres

Maxxis Ikon; 29x2.2"; wire

Spokes

Black stainless

Groupset

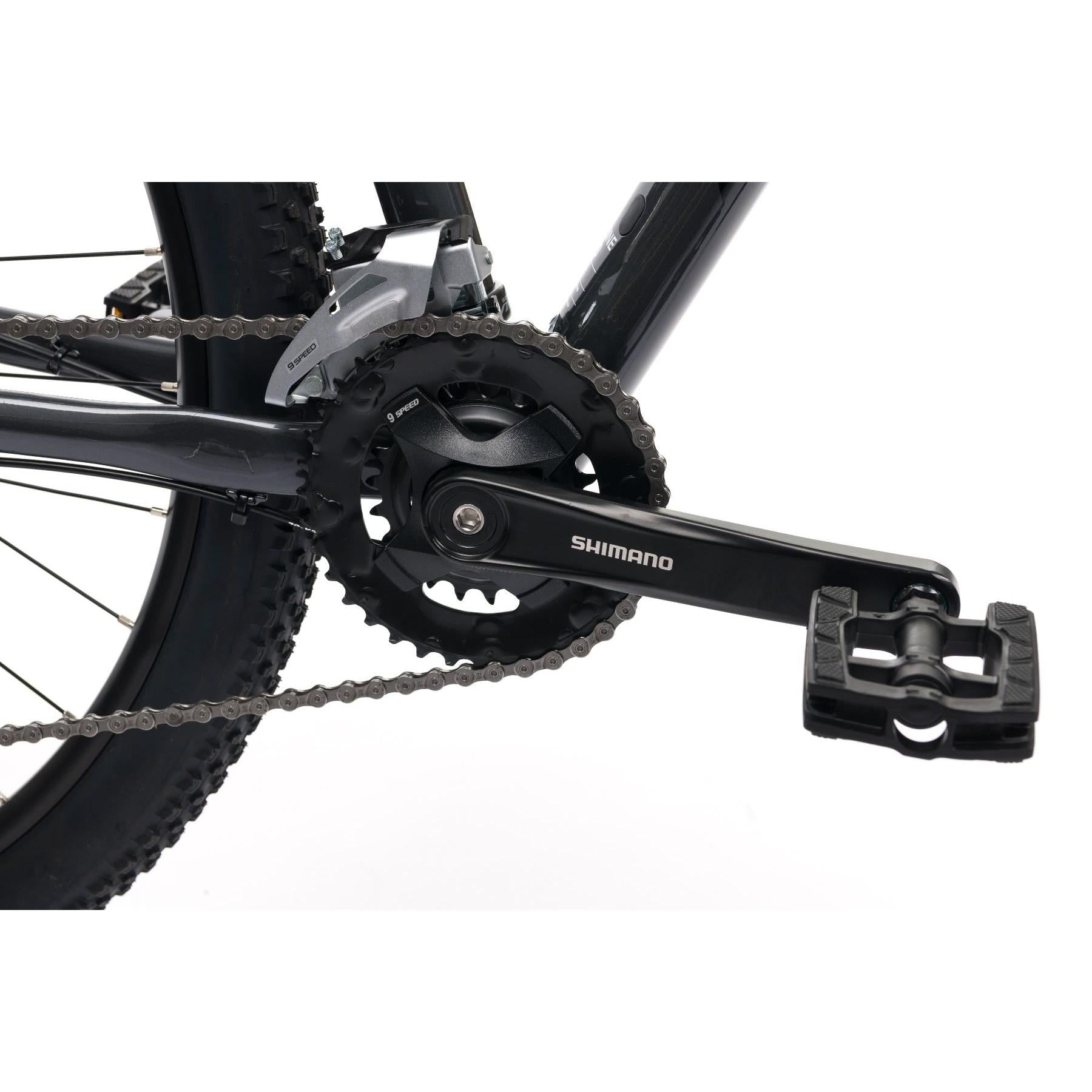

Crankset

Shimano MT101-2; 36-22 ATC

Chain

KMC M99

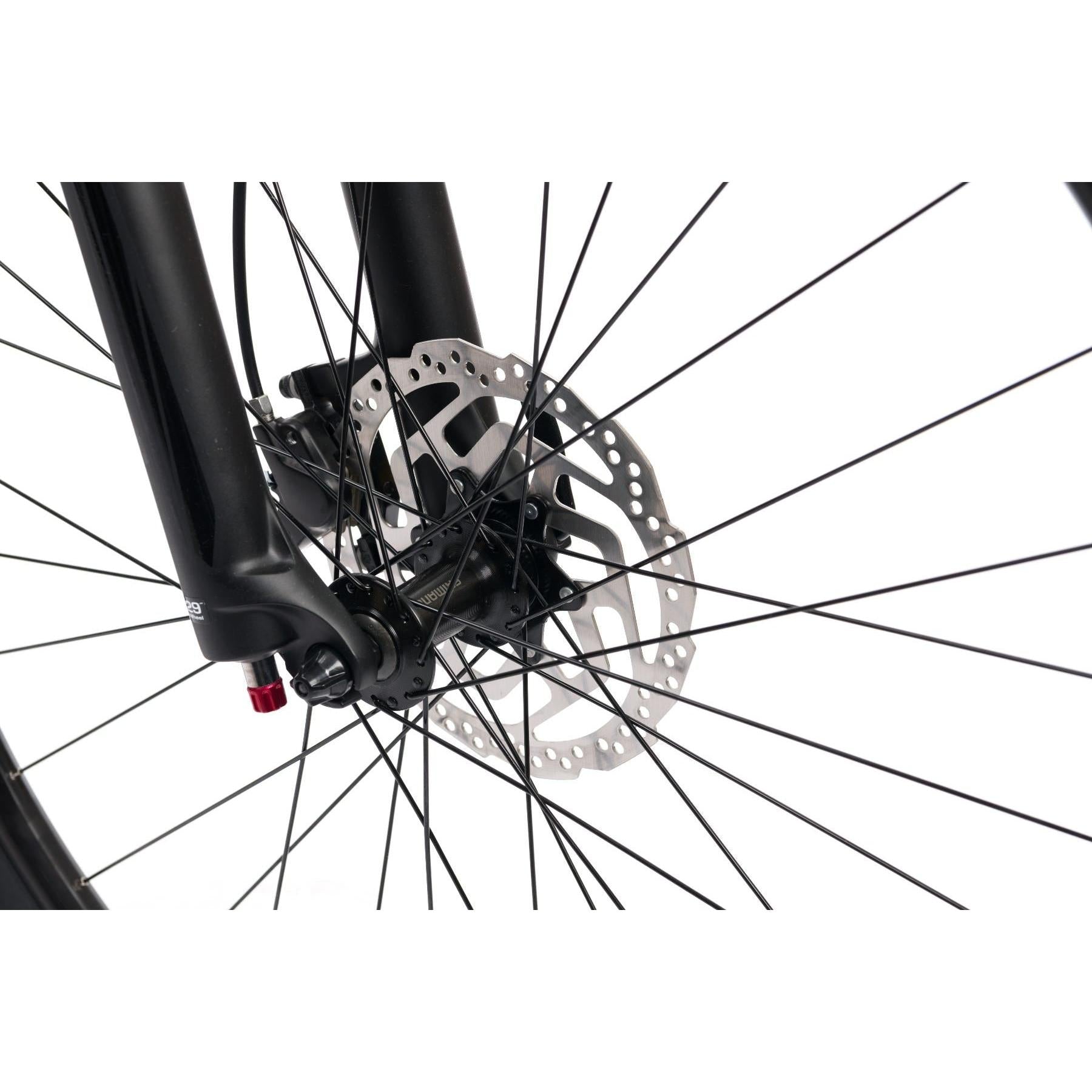

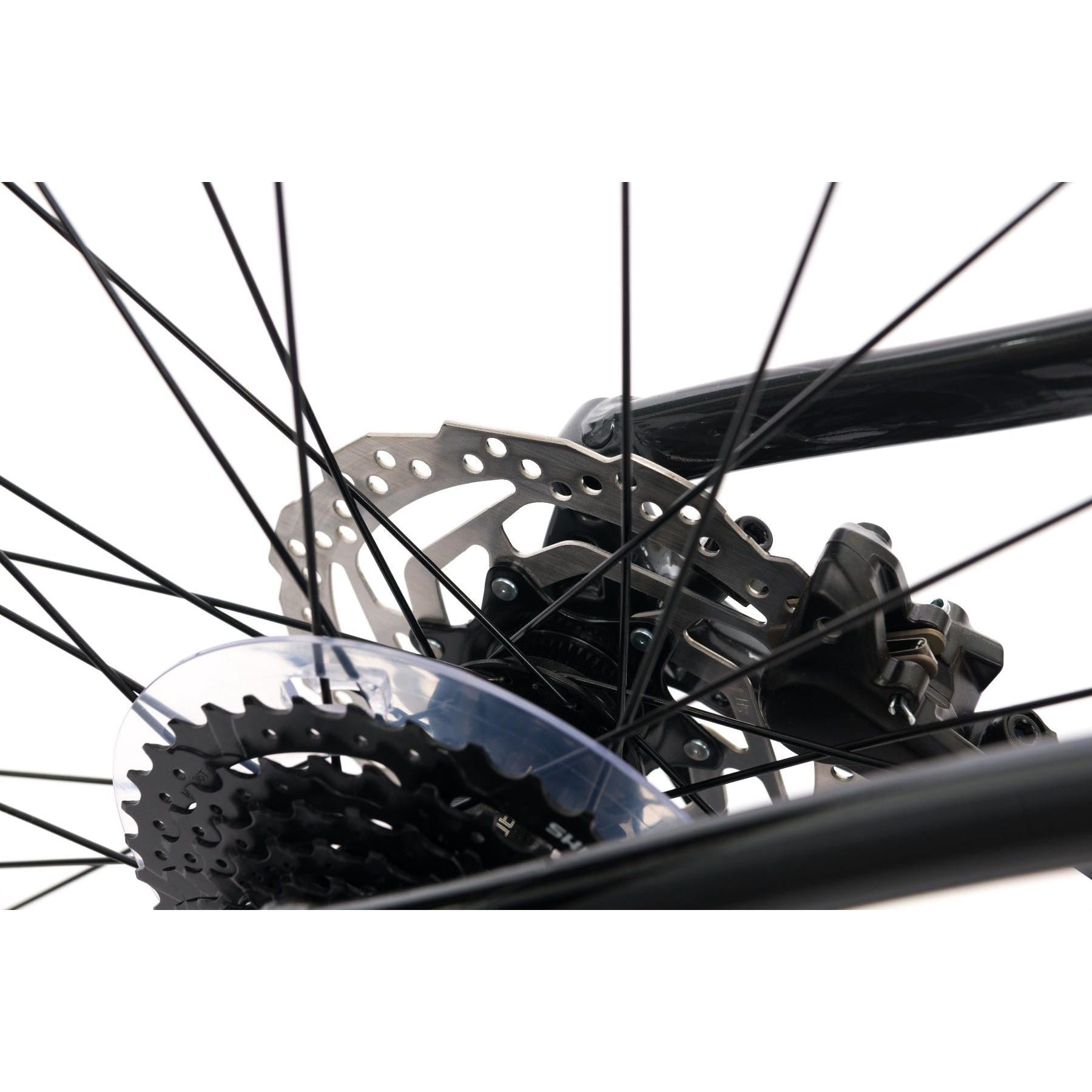

Brakes

Tektro M275; 2 piston

Shifters

Shimano Altus

Front Derailleur

Shimano M2020-TS

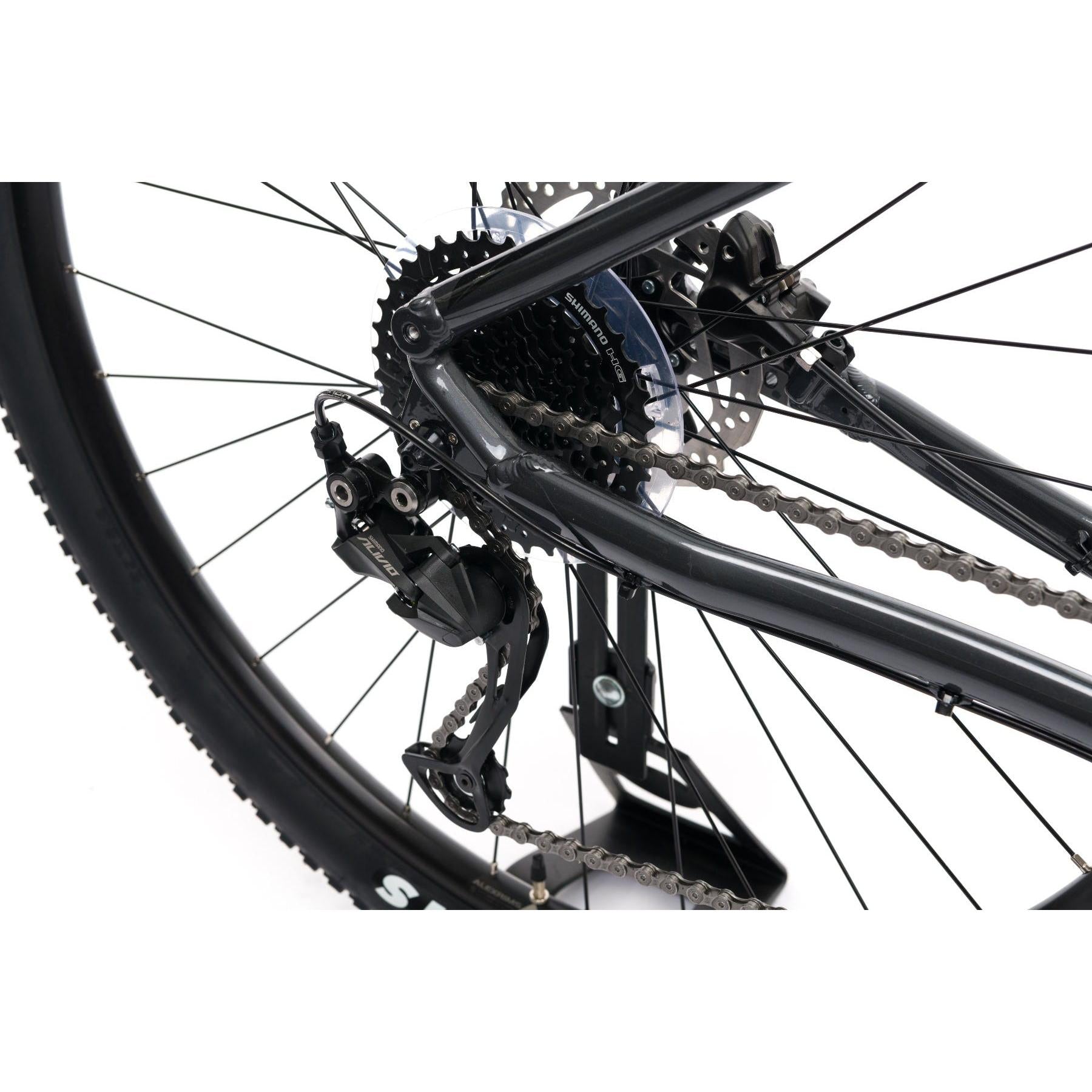

Rear Derailleur

Shimano Alivio Shadow

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine 100 Mountain Bike Anthracite/Black we suggest the following size.

More playful More stable

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

XXL

Merida Big Nine 100 Mountain Bike Anthracite/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

628

642

670

Reach

398

414

445

Top Tube Length

483

610

650

Seat Tube Length

444

470

560

Seat Tube Angle

73.0

Fork Length

Head Tube Length

115

130

160

Head Tube Angle

70.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

727

763

843

Minimum Seat Height

Maximum Seat Height
