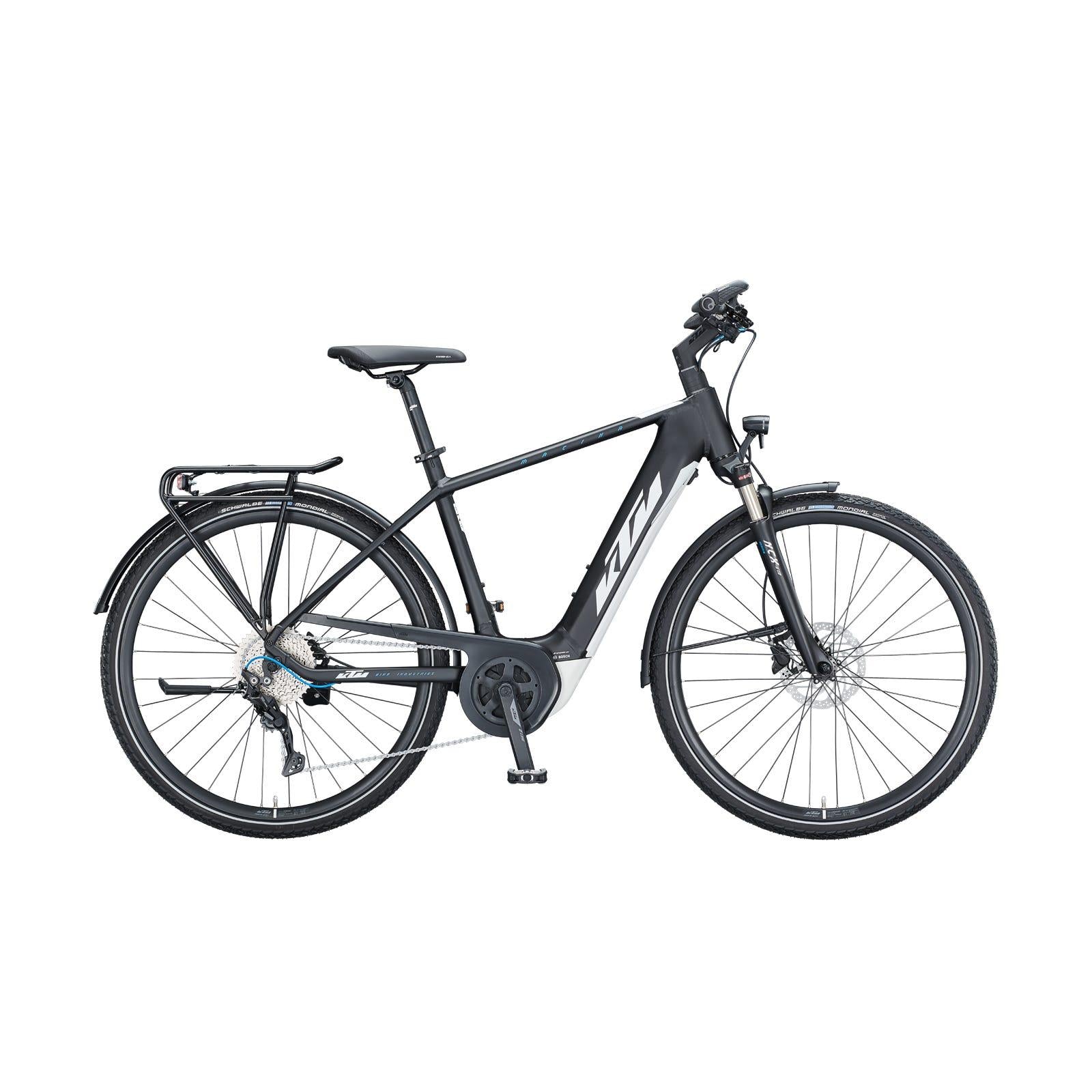

KTM Macina Sport P610 Electric Hybrid Bike Matte Black

Brand: KTM

SKU: KTM21021361136

Size: SM

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Steep Hills / 65 Nm Torque

Up to 87 km Range

Bosch Performance Gen 3 Motor

Alloy Frame/ Suntour Fork

under 100mm Front Travel

625Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The KTM Macina Sport P610 Electric Hybrid Bike is ideal for urban commuting or family rides. It features a Bosch PowerTUBE 625Wh Battery seamlessly integrated into the frame, alongside the Bosch Active Plus Gen 3 Drive Unit. This high-quality battery, also found on premium e-bikes, allows you to reach speeds of 25km/h with minimal pedaling effort. SKU: 21KTMMacinaSportP610MatteBlack.

Key Features

Alloy 6061 Frame
Suntour NCX-D Coil Fork with 63mm Travel
Bosch Active Plus Gen 3 Drive Unit
Bosch PowerTUBE 625Wh Battery
Shimano MT200 / MT200 2-Piston Hydraulic Disc Brakes

Specifications

Product Overview

Product

KTM Macina Sport P610 Electric Hybrid Bike Matte Black

Brand

KTM

Parent SKU

21KTMMacinaSportP610MatteBlack

Size SKUs

SM: K021355106
MD: K021355111
LG: K021355116
XL: K021355120

Year Model

2021

Product Features

Frame Material

Alloy

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

under 100mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Bosch

Motor

Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Steep Hills

Battery Size (Watt-Hours)

625

Battery

Bosch PowerTUBE 625Wh

Max. Range (KMs)

Display

Bosch INTUVIA LCD Display with Remote

Build

Frame

Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.3 / T-1150

Fork

Suntour NCX-D coil LO 63mm

Handlebars

KTM Line low riser 640mm

Headset

Acros AICR internal 1.1/8>1.5" angle limit

Grips

Ergon GP30 SD with Barend

Stem

KTM Line 20° internal

Pedals

Trekking-Pedal VP-616 anti-slip

Saddle

Selle Royal Essenza

Seat Post

KTM Line 30.9/350

Wheels

Wheel Size

700c

Rims

KTM Line - Shimano Deore M6000 CL 32H 135-5QR / Ambrosio Track Disc 32H 622x20C / DT Alpine II 2.34 black

Tyres

Schwalbe Marathon Mondial Perf. RaceGuard 42-622

Groupset

Crankset

KTM LINE BNI 170mm Q16

Chain

KMC e10 EPT e-bike

Brakes

Shimano MT200 / MT200 2-Piston

Shifters

Shimano Deore M4100-10 display

Rear Derailleur

Shimano Deore M4120-10 SGS shadow

Cassette

10 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:
