Cube Aim SL Mountain Bike Prisma Grey 'n' Blue 'n' Red

Cube Aim SL Mountain Bike Prisma Grey 'n' Blue 'n' Red

Brand: Cube

SKU: Select a size

Size: Select a size

SM MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Fork

100mm Front Travel

29" / 27.5" (Varies by Frame Size) Wheel Size

Hydraulic Disc Brake

2 x 9 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

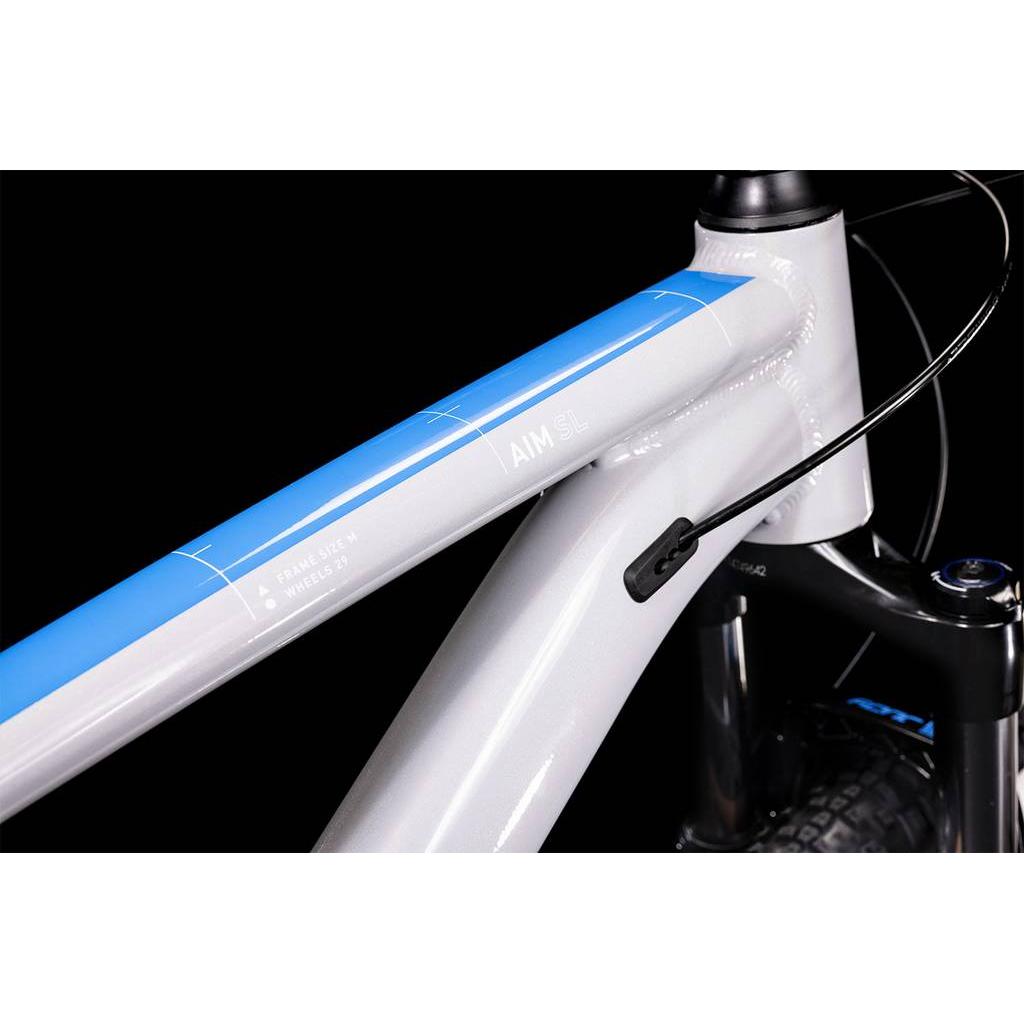

The Cube Aim SL Mountain Bike for 2022 features smooth-welded head tube and seat tube junctions for a sleek appearance. It includes internal cable routing for durability and easy maintenance. The bike has a flat disc mount that integrates with the kickstand mount and offers mounting points for ACID mudguards and carriers. The updated geometry includes a lower top tube for improved handling and accommodates wide, grippy 2.25-inch tires for comfort.

Specifications

Product Overview

Product

Cube Aim SL Mountain Bike Prisma Grey 'n' Blue 'n' Red

Brand

Cube

Parent SKU

22CubeAimSLprismagreyblueredXS

Size SKUs

XS: CUHTG22015100014
SM: CUHTG22015100016
MD: CUHTG22015100018
LG: CUHTG22015100020
XL: CUHTG22015100022
XXL: CUHTG22015100024

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

2 x 9

Front Travel

100mm

Build

Frame

Avanced Mechanical Formed Aluminium

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Groupset

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Cube Aim SL Mountain Bike Prisma Grey 'n' Blue 'n' Red we suggest the following size.

More playful More stable

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

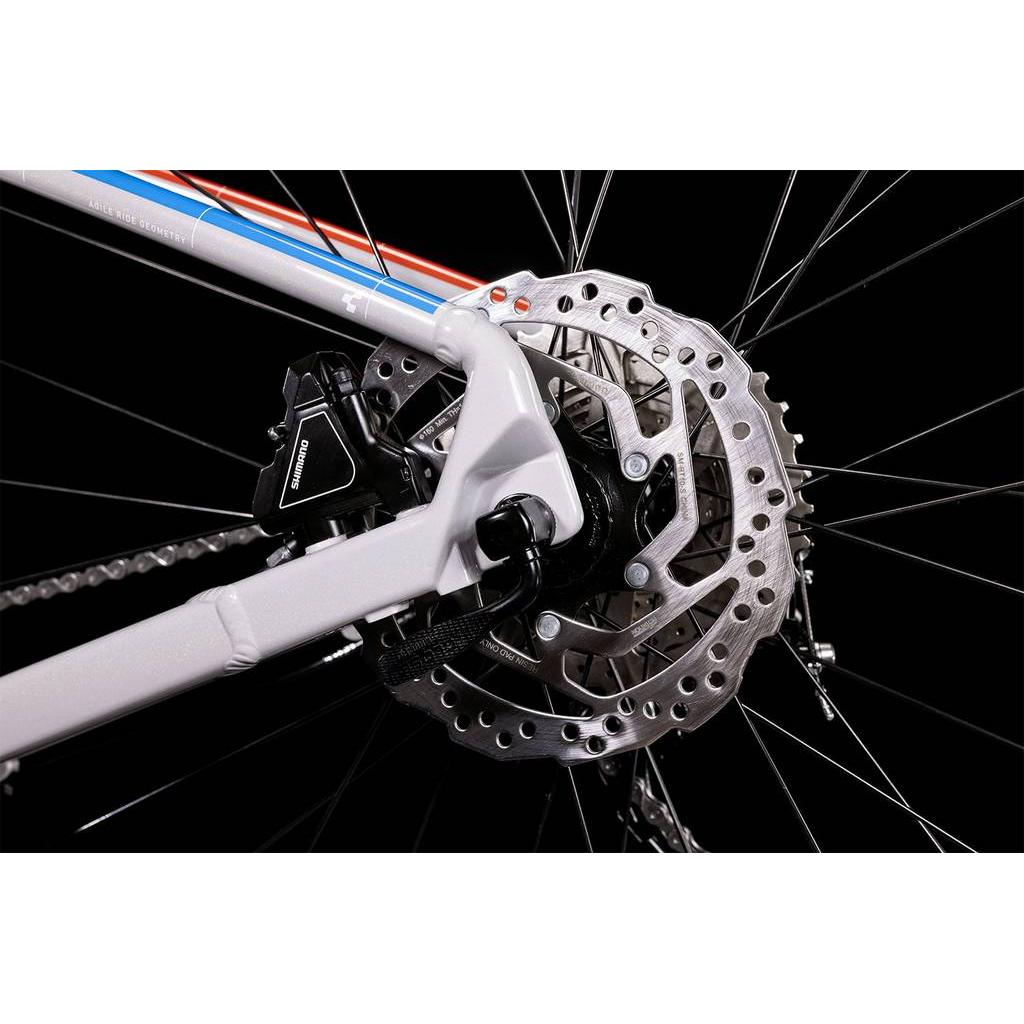

HYDRAULIC DISC BRAKES

Hydraulic disc brakes offer better braking performance in all conditions" including wet weather and off-road. The hydraulic system offers greater control and better feedback through your levers for increased braking confidence!

ROCKSHOX JUDY

This fork is perfectly made to soak up the bumps" with a lockout option so you can switch between road and off-road with ease.

ADVANCED MECHANICAL FORMING

With our Advanced Mechanical Forming technology" we can mechanically transform different frame tubes and thus optimize them without material-wearing welding work for the respective requirements. Along with the obtained organic look" the production method is primarily motivated by functional reasons. Multiple converted tubes enable us to manufacture lighter and also stiffer aluminium frames.

Riders Height (cm)

SM/MD

MD/LG

XXL

Cube Aim SL Mountain Bike Prisma Grey 'n' Blue 'n' Red geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

598

627

637

656

670

Reach

398

409

426

441

457

Top Tube Length

575

595

615

635

655

Seat Tube Length

370

420

470

515

560

Seat Tube Angle

Fork Length

Head Tube Length

111

122

142

157

Head Tube Angle

68.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
