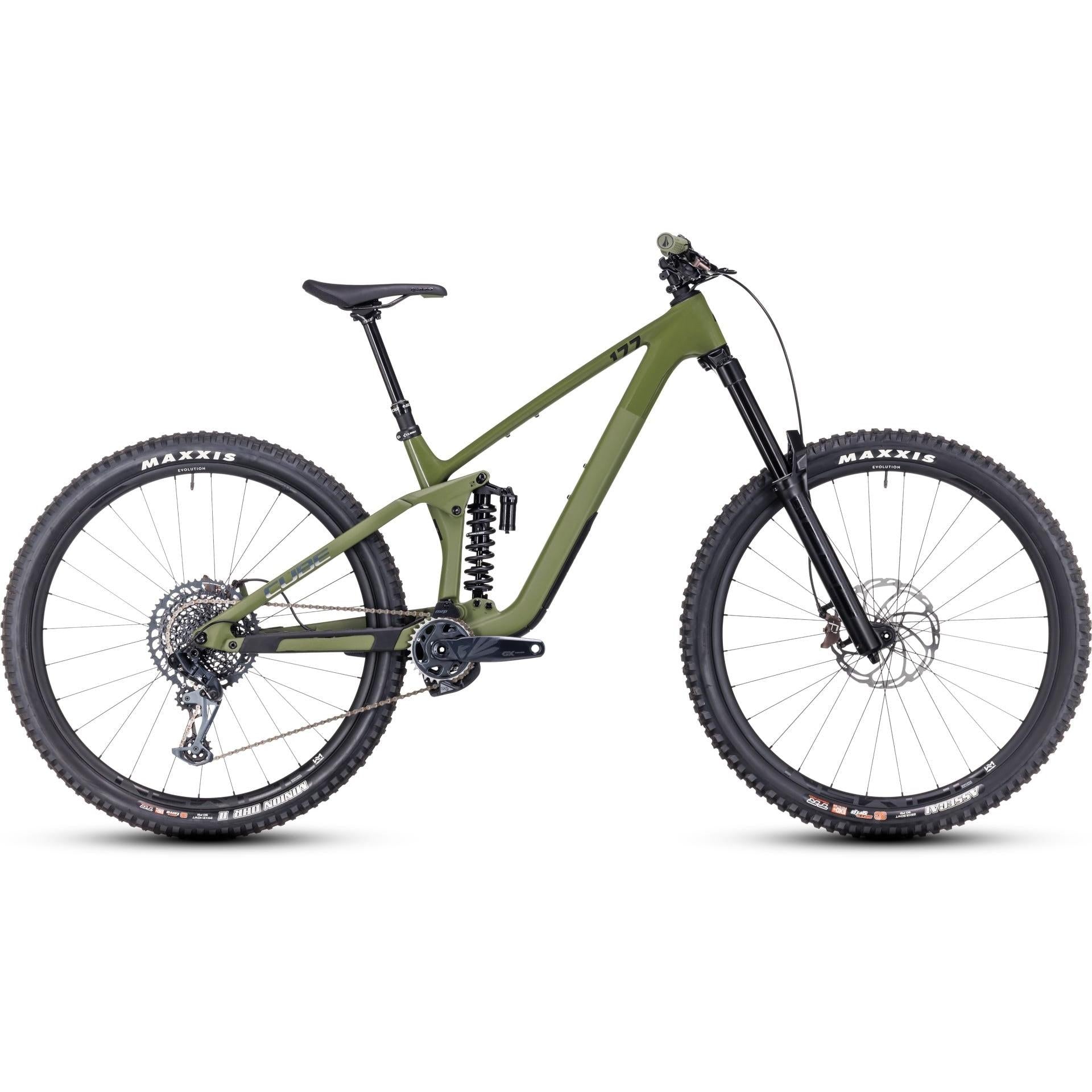

Cube Stereo ONE77 C:68X TM 29 Dual Suspension Mountain Bike Olive 'n' Chrome

Brand: Cube

SKU: Select a size

Size: Select a size

MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$6,299.00 Full price

$6,299.00

Club price

$7,999.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Carbon Frame/ RockShox Alloy Fork

170mm Front Travel / 170mm Rear

SRAM GX Eagle Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Stereo ONE77 C:68SLX is designed for challenging mountain trails, offering a lightweight carbon frame and RockShox suspension components to support both bike and rider.

Key Features

Lightweight 2.3kg C:68X carbon frame
Adjustable geometry for custom riding style
RockShox suspension components for superior performance
Boost148 hub for stiffer, better handling wheels
No frame storage for reduced weight, increased strength

Specifications

Product Overview

Product

Cube Stereo ONE77 C:68X TM 29 Dual Suspension Mountain Bike Olive 'n' Chrome

Brand

Cube

Parent SKU

CURE23656300

Size SKUs

LG: CUDS236300000L
MD: CUDS236300000M
XL: CUDS23630000XL
XXL: CUDS2363000XXL

Matrix Barcodes

LG: 4.05457E+12
MD: 4.05457E+12
XL: 4.05457E+12
XXL: 4.05457E+12

Year Model

2023

Product Features

Frame Material

Carbon

Colour

Green

Gears

1 x 12

Fork Material

Alloy

Front Travel

170mm

Rear Travel

170mm

Weight

15,1 kg

Weight Limit

115 kg

Build

Frame

C:68X® Monocoque Advanced Twin Mold Technology, Air/Coil Shock Mount Flip-Chip, ISCG, Boost148, UDH™

Fork

RockShox ZEB Select+ RC2, Tapered, 15x110mm, 170mm

Shock

RockShox Super Deluxe Ultimate Coil, 230x65mm

Handlebars

Race Face Turbine R 35, 800mm

Headset

ACROS Integrated, Top 1 1/1", Bottom 1 1/2", Fiber Inserts for 0.4° Angle Adjustment

Grips

SDG Thrice

Stem

Race Face Turbine R 35

Bottom Bracket

Sram DUB MTB, 73mm BSA

Saddle

SDG Bel Air V3 Lux Alloy

Seat Post

SDG Tellis, Handlebar Lever, Internal Cable Routing, 31.6mm

Seat Clamp

CUBE Screwlock, 34.9mm

Wheels

Tyres

F: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT | R: Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT

Spokes

28/28 Spokes

Groupset

Crankset

Sram GX Eagle™ Boost DUB, 30T

Chain

Sram SX Eagle™

Brakes

Hayes Dominion A4, Hydr. Disc Brake (203/180)

Front Rotor

203

Rear Rotor

180

Shifters

Sram GX Eagle™ Trigger

Rear Derailleur

Sram GX Eagle™, 12-Speed

Cassette

12 Speed

Frequently Asked Questions

What is the Cube Stereo ONE77 C:68X TM 29 used for?

The Cube Stereo ONE77 C:68X TM 29 is used for trail and mountain biking, designed to handle challenging terrains with ease and precision.

Why choose the Cube Stereo ONE77 C:68X TM 29?

Choose the Cube Stereo ONE77 C:68X TM 29 for its advanced carbon frame, superior suspension, and reliable drivetrain, offering a high-performance ride for serious trail enthusiasts.

Who is the Cube Stereo ONE77 C:68X TM 29 designed for?

The Cube Stereo ONE77 C:68X TM 29 is designed for avid mountain bikers and competitive riders seeking a durable and high-performing bike for demanding trails.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Cube Stereo ONE77 C:68X TM 29 Dual Suspension Mountain Bike Olive 'n' Chrome we suggest the following size.

More playful More stable

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

C:68X Carbon Fibre Technology

Combining all of Cubes' past expertise from carbon frame building into the ultimate material, C:68X® carbon uses the optimum blend of fibre and nano particle-infused resin. Precision Advanced Twin Mold manufacturing means avoiding bonded sleeves or inserts, too. It's the new benchmark for light, stiff and strong.

Advanced Twin Mould

With Cubes Advanced Twin Mold process two precisely manufactured forms are used for the C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

Boost148

A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.

Riders Height (cm)

Cube Stereo ONE77 C:68X TM 29 Dual Suspension Mountain Bike Olive 'n' Chrome geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Stack

627

629

638

656

Reach

450

470

490

510

Top Tube Length

591

611

635

661

Seat Tube Length

405

420

470

Seat Tube Angle

76.5

Fork Length

Head Tube Length

103

105

115

135

Head Tube Angle

64.4

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
