$2843 Off Full Price

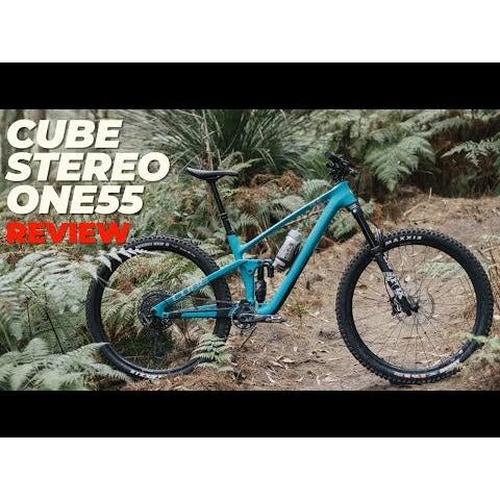

Cube Stereo ONE55 C:62 Race 29 Dual Suspension Mountain Bike Light Grey/Grey

Cube Stereo ONE55 C:62 Race 29 Dual Suspension Mountain Bike Light Grey/Grey

Brand: Cube

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Carbon Frame/ RockShox Fork

160mm Front Travel / 150mm Rear

Hydraulic Disc Brake

SRAM GX Eagle Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Cube Stereo ONE55 C:62 Race 29 is a dual suspension mountain bike that excels in both descending and climbing. It features an Advanced Twin Mould C:62 carbon frame, offering low weight and high efficiency. The bike's design includes clean lines and built-in angle adjustment inserts for customizable head tube angles. It has a durable threaded bottom bracket shell with an ISCG 05 chain guide mount and built-in down tube storage for tools. With 155mm rear travel and a 160mm front fork, it handles tough trails with ease. The RockShox Lyrik Select+ fork and Super Deluxe Select+ shock provide excellent absorption, while Newmen Evolution wheels, Maxxis tires, and Magura MT5 hydraulic disc brakes ensure control. Sram's GX Eagle 1x12 gears offer a wide range for any mountain route, making it a complete all-mountain machine.

Specifications

Product Overview

Product

Cube Stereo ONE55 C:62 Race 29 Dual Suspension Mountain Bike Light Grey/Grey

Brand

Cube

Parent SKU

Cube23StereoONE55C62Race29LightgreyGrey

Size SKUs

LG: CUDS235100000L
MD: CUDS235100000M
SM: CUDS235100000S
XL: CUDS23510000XL

Matrix Barcodes

LG: 4.05457E+12
MD: 4.05457E+12
SM: 4.05457E+12
XL: 4.05457E+12

Year Model

2023

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Grey

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

160mm

Rear Travel

150mm

Weight

14,1 kg

Weight Limit

115 kg

Build

Frame

C:62 Monocoque Advanced Twin Mold Technology, ISCG05, Boost 148, UDH™

Fork

RockShox Lyrik Select+, Tapered, 15x110mm, 160mm

Shock

RockShox Super Deluxe Select+ DebonAir, 205x65mm, Low Speed Compression & Rebound Adjust, Lockout

Handlebars

Race Face Chester 35, 780mm

Headset

ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment

Grips

ACID Disrupt, Soft Compound

Stem

Race Face Aeffect R 35

Bottom Bracket

Sram DUB MTB, 73mm BSA

Saddle

Natural Fit Venec

Seat Post

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm

Wheels

Rims

Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready

Tyres

Front: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT, Rear: Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT

Groupset

Crankset

Sram GX Eagle™ Boost DUB, 30T

Chain

Sram SX Eagle™

Brakes

Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/180)

Front Rotor

203mm

Rear Rotor

180mm

Shifters

Sram NX Eagle™ Trigger

Rear Derailleur

Sram GX Eagle™, 12-Speed

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Cube Stereo ONE55 C:62 Race 29 Dual Suspension Mountain Bike Light Grey/Grey we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

Cube Stereo ONE55 C:62 Race 29 Dual Suspension Mountain Bike Light Grey/Grey geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Stack

625

627

636

654

Reach

425

450

475

500

Top Tube Length

567

592

621

652

Seat Tube Length

370

405

420

470

Seat Tube Angle

76.5

Fork Length

Head Tube Length

100

103

113

133

Head Tube Angle

64.8

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
