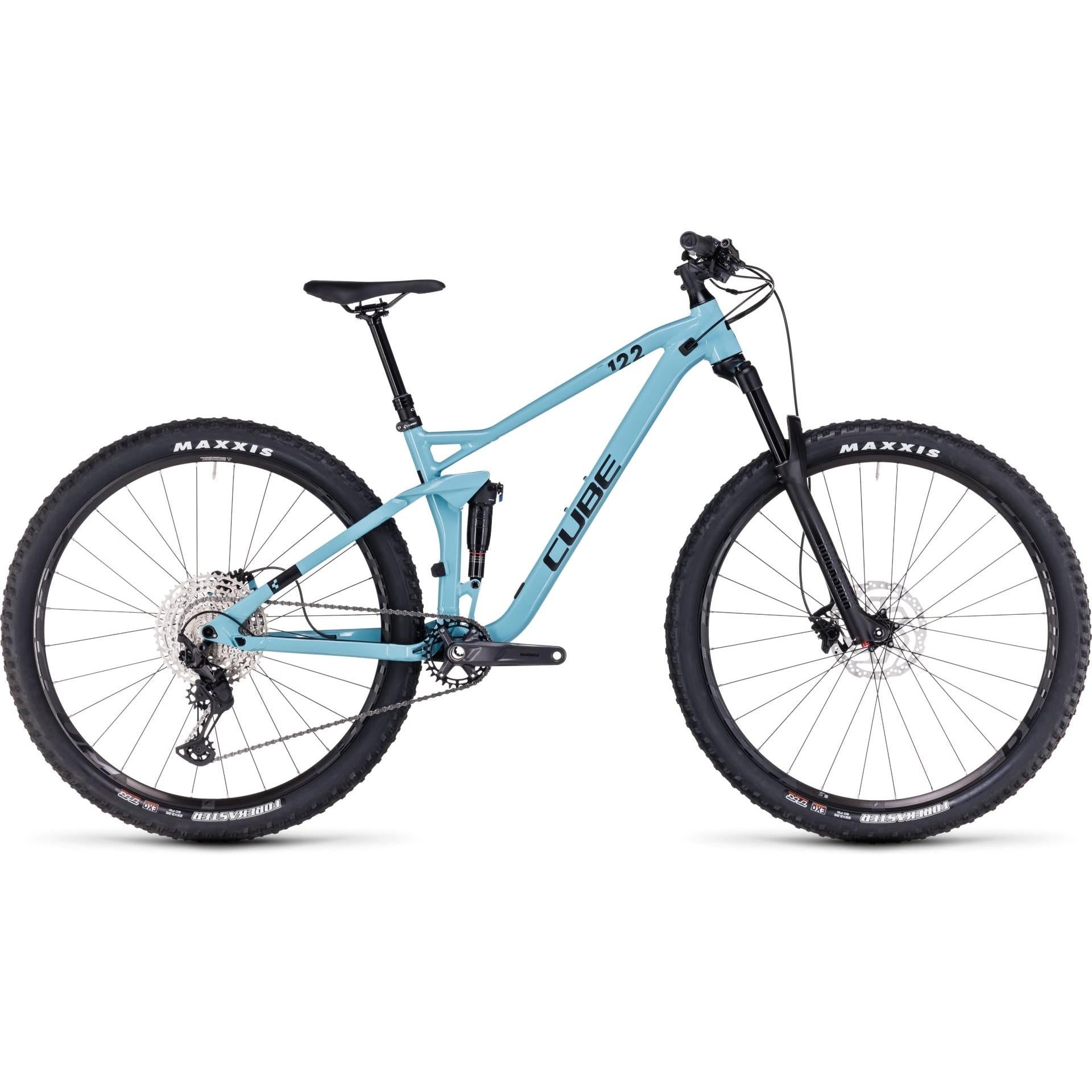

Cube Stereo ONE22 Race Dual Suspension Mountain Bike Maya Blue 'n' Black

Cube Stereo ONE22 Race Dual Suspension Mountain Bike Maya Blue 'n' Black

Brand: Cube

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Fork

130mm Front Travel / 120mm Rear

29" / 27.5" (Varies by Frame Size) Wheel Size

Hydraulic Disc Brake

Shimano XT Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Stereo ONE22 frame is designed for optimal performance with minimal weight. It features hydroformed tubing that is triple-butted to reduce weight while maintaining strength. The tapered head tube and Boost 148 rear axle enhance steering precision and pedaling efficiency. Built with Efficient Trail Control kinematics and a 130mm fork, the Agile Trail Geometry ensures you remain in control. Additionally, there's a SizeSplit XS option with 27.5-inch wheels for shorter riders who seek high performance.

Key Features

130mm RockShox fork paired with RockShox rear shock providing 120mm rear travel
Boost148 rear axle provides agile handling
Agile Trail Geometry
Lightweight, strong High-Performance Aluminium frame
Reliable & smooth Shimano Deore drivetrain

Specifications

Product Overview

Product

Cube Stereo ONE22 Race Dual Suspension Mountain Bike Maya Blue 'n' Black

Brand

Cube

Parent SKU

Cube23StereoONE22RaceMayablueBlack

Size SKUs

LG: CUDS233201000L
MD: CUDS233201000M
SM: CUDS233201000S
XL: CUDS23320100XL
XS: CUDS23320100XS

Matrix Barcodes

LG: 4.05457E+12
MD: 4.05457E+12
SM: 4.05457E+12
XL: 4.05457E+12
XS: 4.05457E+12

Year Model

2023

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Blue

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

130mm

Rear Travel

120mm

Weight

14,5 kg

Weight Limit

115 kg

Build

Frame

HPA Advanced Hydroform, ATG, ETC 4-Link, AXH

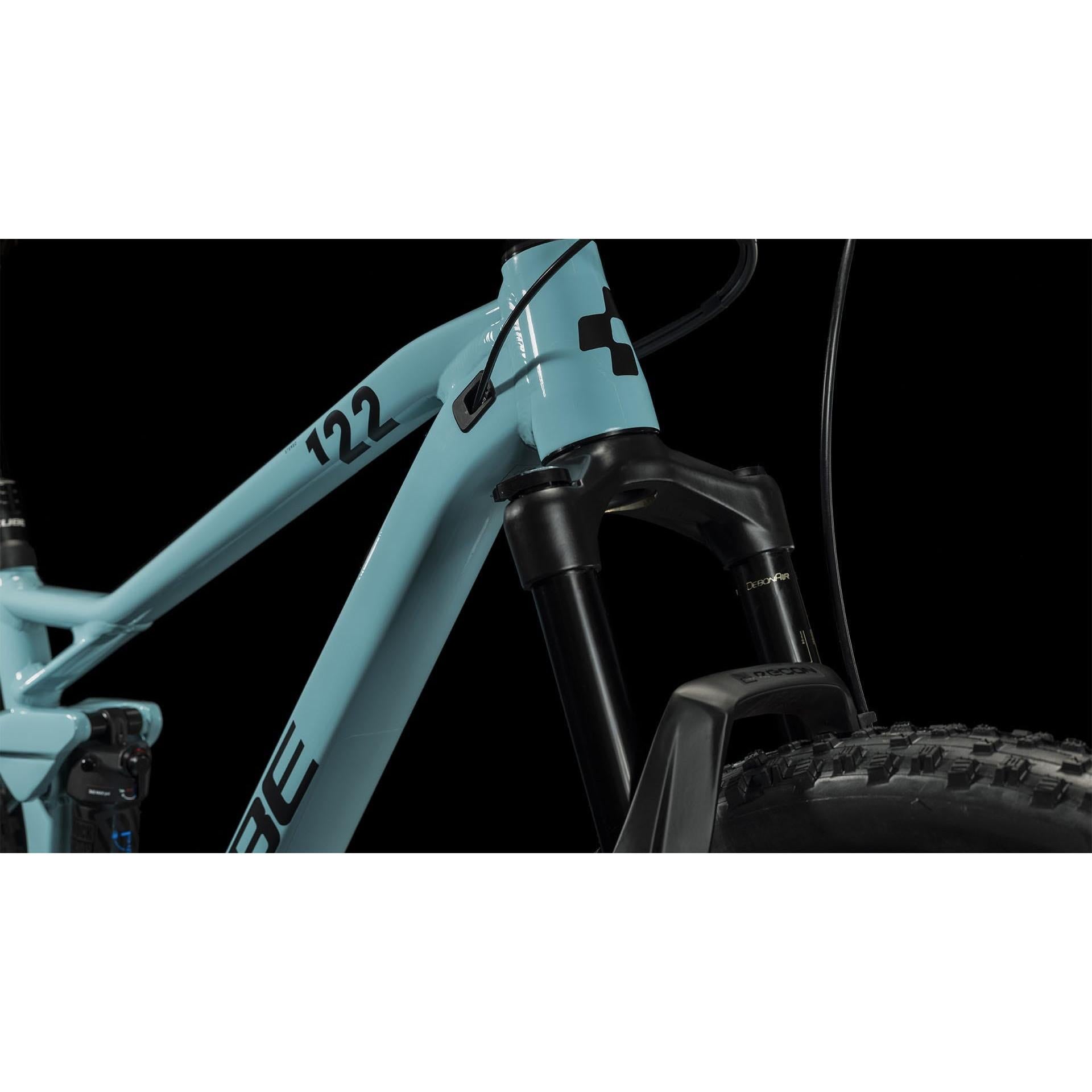

Fork

RockShox Recon Gold RL Air, Tapered, 15x110mm, 130mm

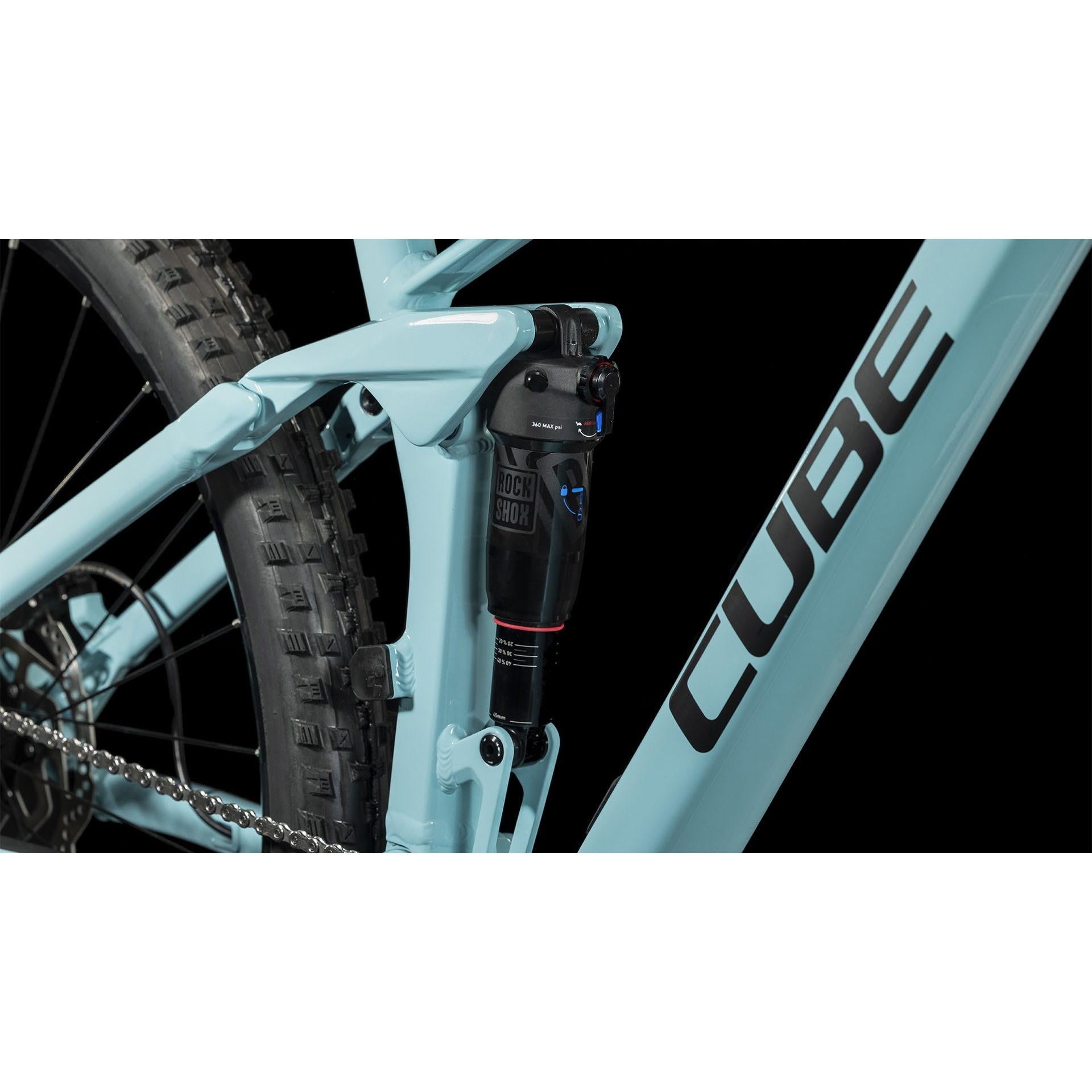

Shock

RockShox Deluxe Select+, 190x45mm, Rebound Adjust, Lockout

Handlebars

Newmen Evolution SL 318.25, 760mm

Headset

VP Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)

Grips

ACID React Pro

Stem

Newmen Evolution 318.4, 31.8mm

Bottom Bracket

Shimano BB-MT500PA, 92mm Pressfit

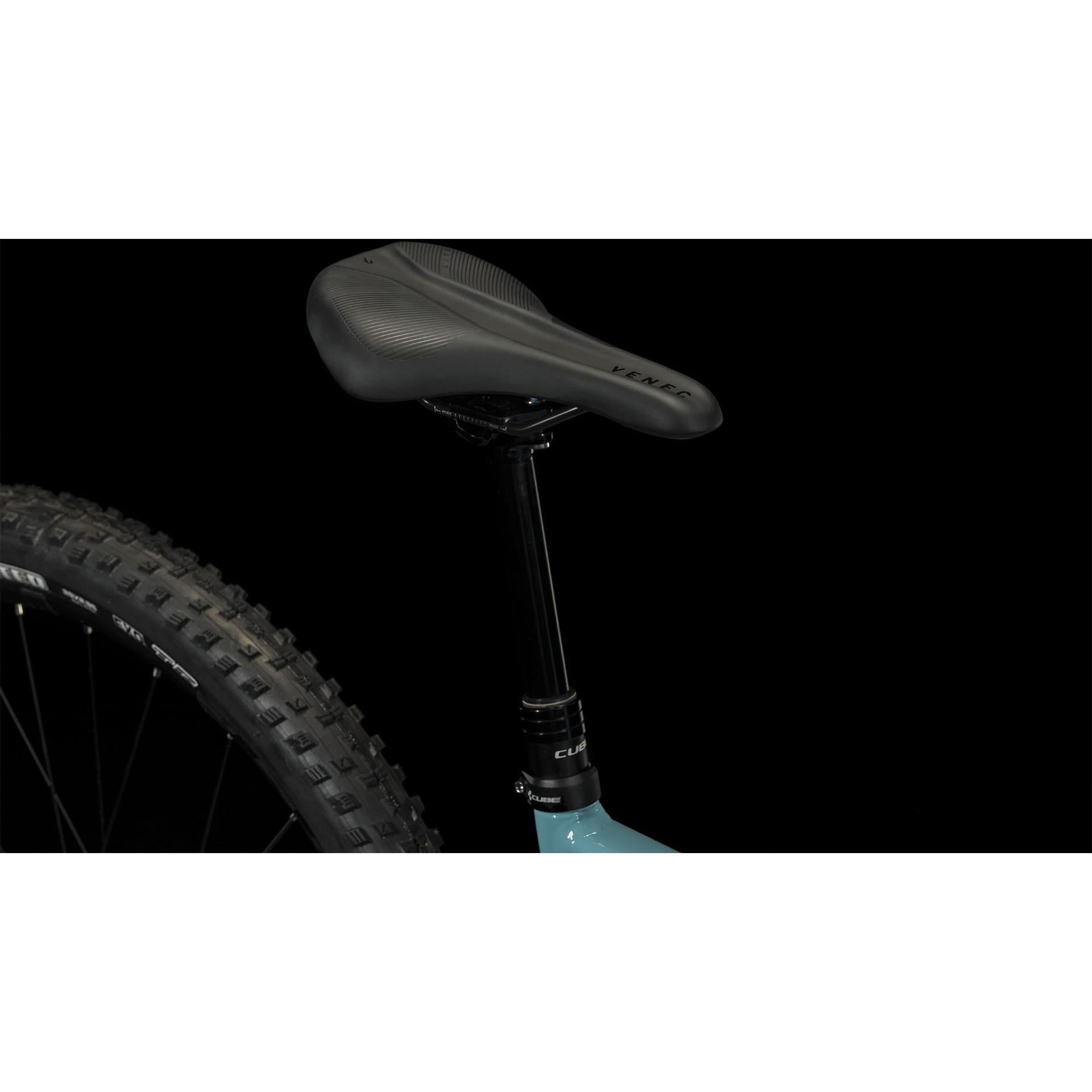

Saddle

Natural Fit Venec Lite

Seat Post

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

Seat Clamp

CUBE Screwlock, 34.9mm

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Tyres

Maxxis Forekaster, EXO, Tubeless Ready, 2.35

Groupset

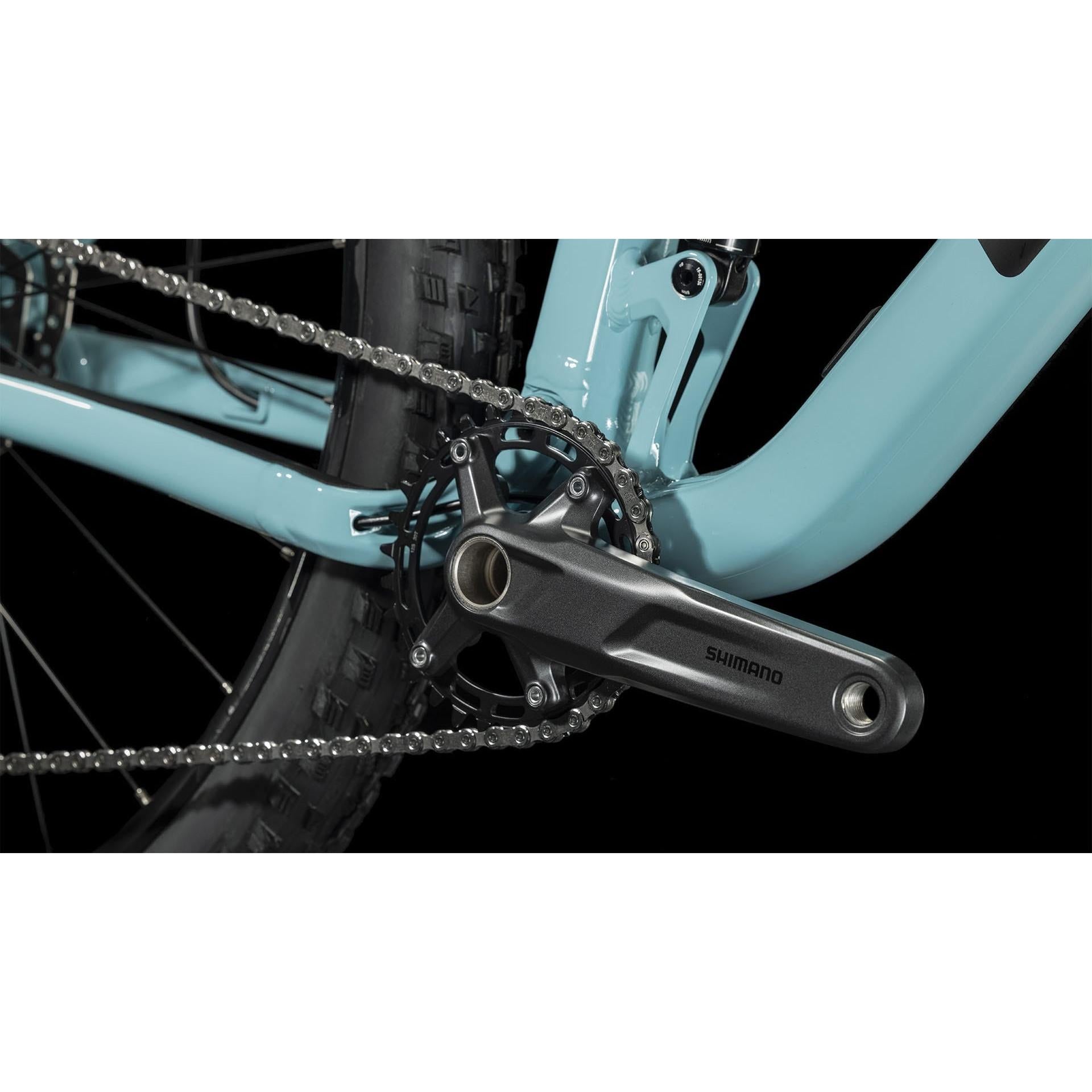

Crankset

Shimano FC-MT511, Boost, 30T

Chain

Shimano CN-M6100

Brakes

Shimano BR-MT500, Hydr. Disc Brake (180/180)

Front Rotor

180mm

Rear Rotor

180mm

Shifters

Shimano Deore SL-M6100, Rapidfire-Plus

Rear Derailleur

Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

Cassette

12 Speed

Frequently Asked Questions

What is the Cube Stereo ONE22 Race used for?

The Cube Stereo ONE22 Race is used for trail riding, offering a balance of performance and control on various terrains.

Why choose the Cube Stereo ONE22 Race?

Choose the Cube Stereo ONE22 Race for its lightweight, strong aluminium frame, efficient trail control kinematics, and reliable Shimano Deore drivetrain, all contributing to a smooth and agile riding experience.

Who is the Cube Stereo ONE22 Race designed for?

The Cube Stereo ONE22 Race is designed for trail riders seeking high performance and control, including shorter riders with the SizeSplit XS option.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Cube Stereo ONE22 Race Dual Suspension Mountain Bike Maya Blue 'n' Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Efficient Trail Control

Our Efficient Trail Control series works in the background so that everyone can have more fun on the trail. A low leverage ratio and linear compression rate are the technical way of saying that these bikes are very sensitive to trail obstacles, whilst remaining insensitive to pedal-induced bob and giving a full range of travel.

Agile Trail Geometry

Agile Trail Geometry is a development of Cube's popular and well-received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, Cube have created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.

Boost148

A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.

Riders Height (cm)

Cube Stereo ONE22 Race Dual Suspension Mountain Bike Maya Blue 'n' Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

567

604

606

615

634

Reach

405

420

440

460

480

Top Tube Length

547

570

591

614

640

Seat Tube Length

350

370

420

470

520

Seat Tube Angle

75.3

Fork Length

Head Tube Length

100

103

113

133

Head Tube Angle

67.5

67.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
