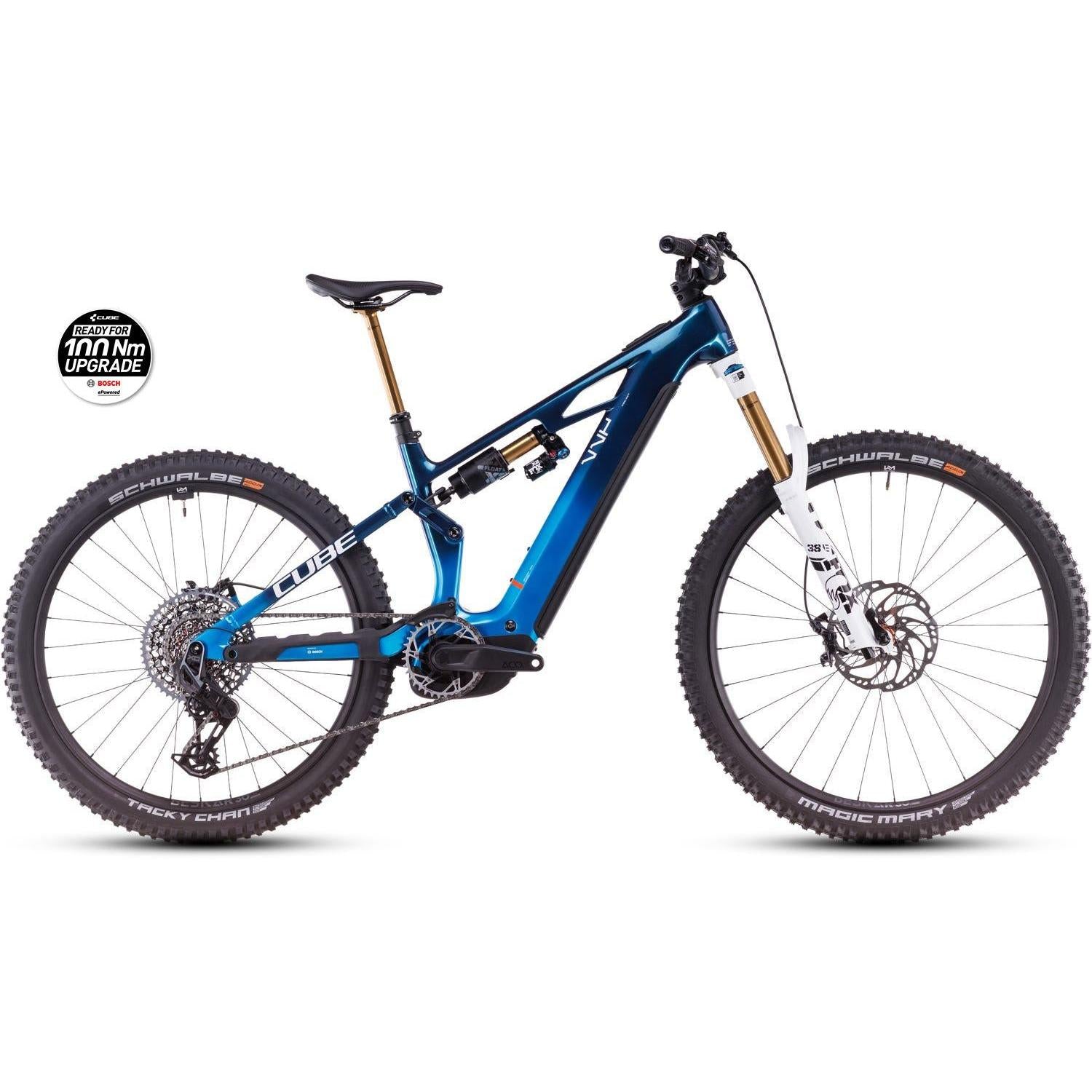

Cube Stereo Hybrid ONE77 HPC AT 800 Electric Enduro Bike Actionteam

Cube Stereo Hybrid ONE77 HPC AT 800 Electric Enduro Bike Actionteam

Brand: Cube

SKU: Select a size

Size: Select a size

S MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$12,899.00 Full price

$12,899.00

Club price

$13,999.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 93 km Range

Bosch Performance Line CX Motor

Carbon Frame/ Fox Fork

170mm Front Travel

800Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Cube Stereo Hybrid ONE77 HPC AT 800 Electric Enduro Bike is designed for challenging trails, featuring a state-of-the-art carbon frame and a powerful Bosch motor. Equipped with an advanced Fox suspension system and Sram AXS drivetrain, it offers precise control, smooth power transfer, and outstanding durability, making it ideal for technical descents and steep climbs.

Key Features

C:62 carbon frame with an aluminum rear triangle
Fox 38 Float Factory 170mm fork
Bosch Performance Line CX motor
Sram X0 Eagle AXS 12-speed drivetrain
Shimano XT hydraulic disc brakes

Specifications

Product Overview

Product

Cube Stereo Hybrid ONE77 HPC AT 800 Electric Enduro Bike Actionteam

Brand

Cube

Parent SKU

Cube25StereoHybridONE77HPCAT800actionteam

Size SKUs

LG: CUEB803510000S
MD: CUEB80351000MD
SM: CUEB80351000SM
XL: CUEB80351000XL

Matrix Barcodes

LG: 4054571455321
MD: 4054571455314
SM: 4054571455307
XL: 4054571455338

Year Model

2025

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Blue

Brake Type

Hydraulic Disc Brake

Front Travel

170mm

Weight

24.1 kg

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Bosch

Motor

Bosch Drive Unit Performance Line CX, Smart System 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

800

Battery

Bosch PowerTube 800

Max. Range (KMs)

Display

Bosch Display

Declared Article Number (NSW)

ULL-104243-EA

Build

Frame

C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

Fork

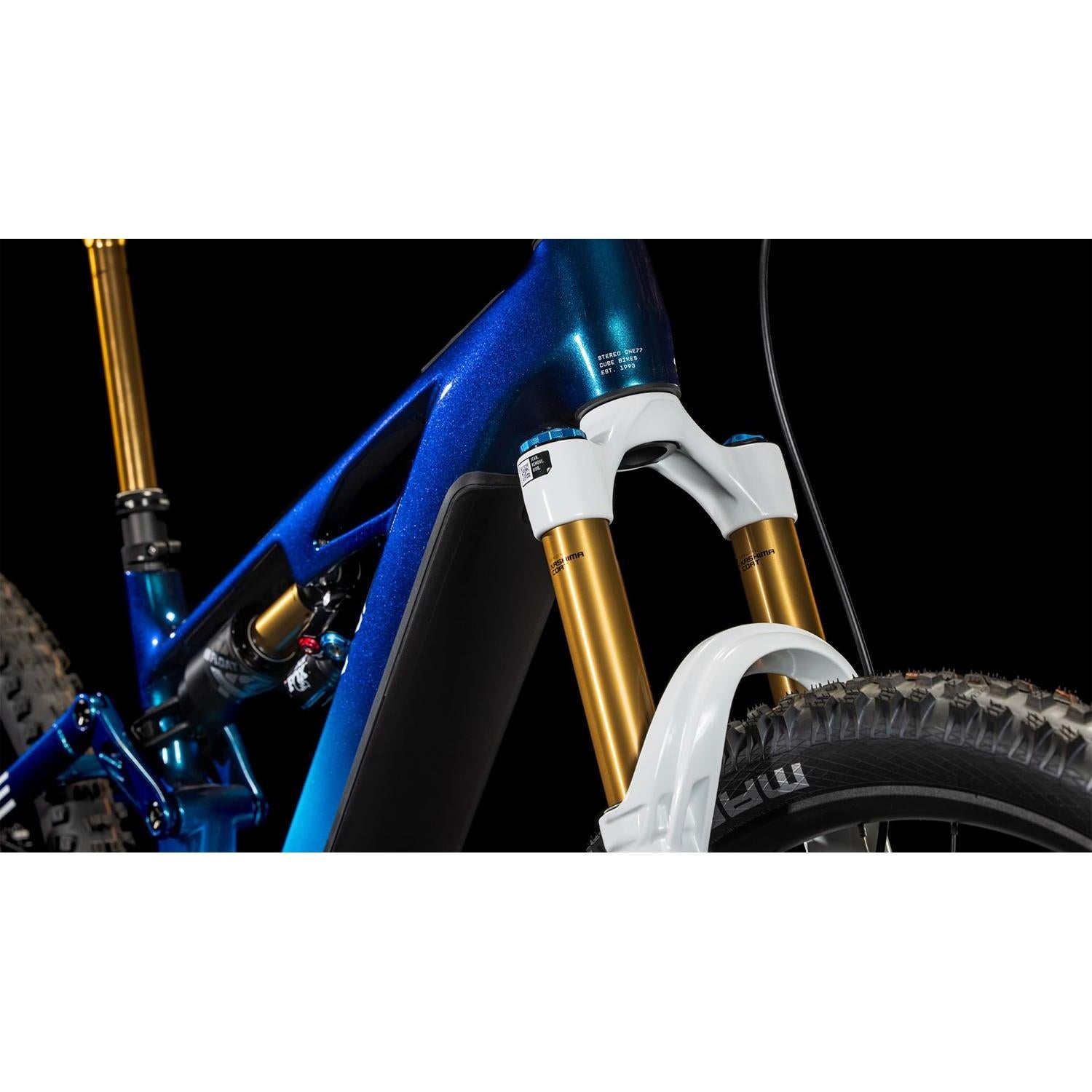

Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm, Kashima Coated

Shock

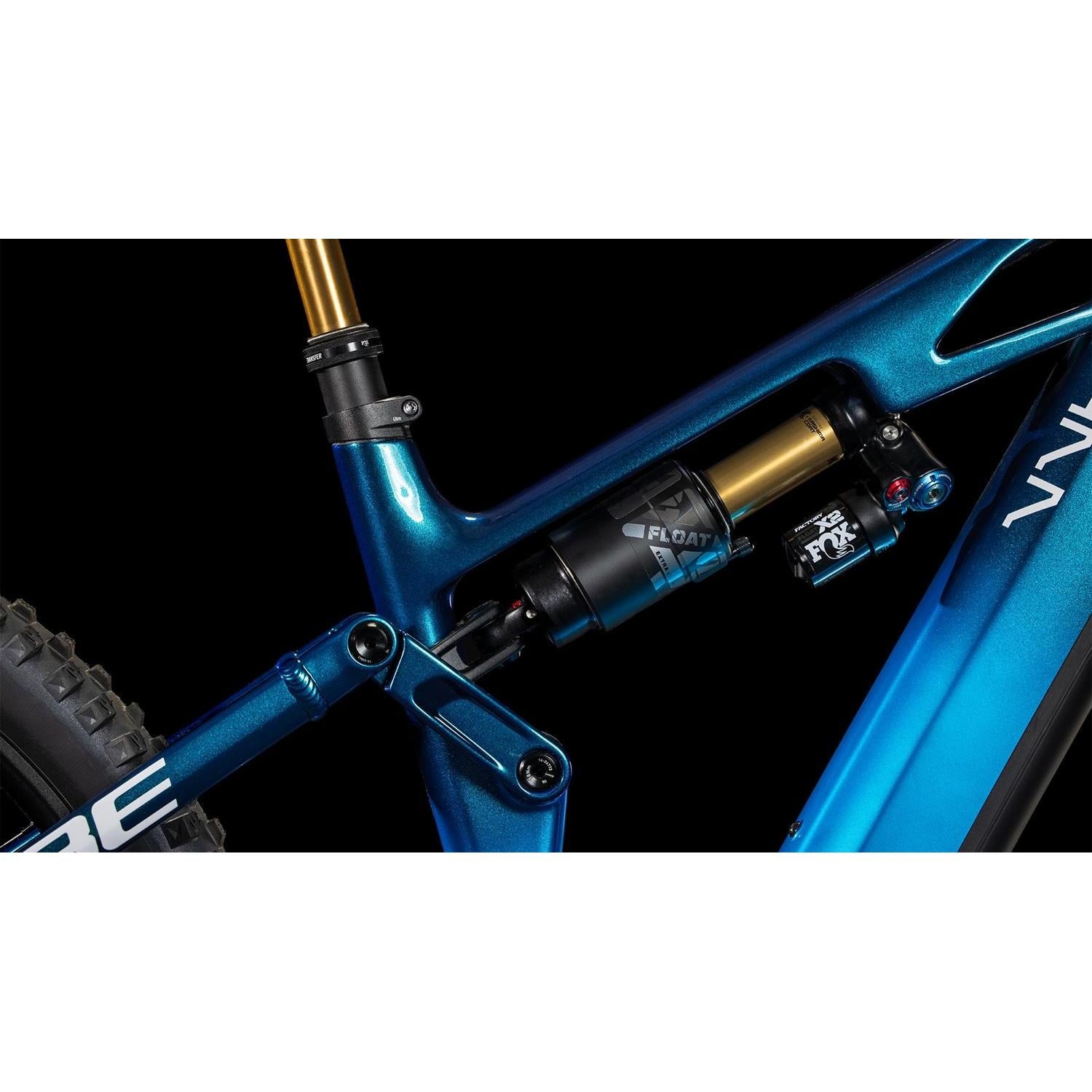

Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated

Handlebars

Race Face ERA 35

Headset

ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface

Grips

ACID Disrupt, Soft Compound

Stem

CUBE Performance Stem E-MTB 35, FPI-Link

Saddle

ACID Venec EMTB Trail 140

Seat Post

Fox Transfer Factory 31.6mm, Kashima Coated

Wheels

Rims

Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready

Tyres

F: Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4 | R: Schwalbe Tacky Chan, Addix Soft, Super Gravity, Kevlar, 2.4

Groupset

Crankset

ACID MTB Hybrid Pro, 36T

Chain

Sram GX Eagle™ Transmission

Brakes

Shimano XT BR-M8120, Hydr. Disc Brake (203/203)

Shifters

Sram AXS™ Pod Controller

Rear Derailleur

Sram X0 Eagle AXS™ Transmission, 12-Speed

Frequently Asked Questions

What is the Cube Stereo Hybrid ONE77 HPC AT used for?

The Cube Stereo Hybrid ONE77 HPC AT 800 is used for tackling challenging enduro trails with ease, providing both power and agility for technical descents and steep climbs.

Why choose the Cube Stereo Hybrid ONE77 HPC AT?

Choose the Cube Stereo Hybrid ONE77 HPC AT 800 for its advanced suspension, powerful Bosch motor, and precision drivetrain, all designed to enhance your off-road riding experience.

Who is the Cube Stereo Hybrid ONE77 HPC AT designed for?

The Cube Stereo Hybrid ONE77 HPC AT 800 is designed for experienced riders who demand top-tier performance and reliability on the most challenging enduro trails.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Cube Stereo Hybrid ONE77 HPC AT 800 Electric Enduro Bike Actionteam we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Advanced Suspension System

The Fox 38 Float Factory fork and Fox Float X2 Factory shock provide outstanding damping and responsiveness. This ensures a comfortable ride over rough terrain, allowing riders to tackle challenging trails with confidence.

Powerful Bosch Drive Unit

Equipped with the Bosch Performance Line CX motor and PowerTube battery, this bike delivers consistent power and extended range. It's perfect for long, demanding rides, ensuring you can conquer any trail.

Precision Shifting

The Sram X0 Eagle AXS 12-speed drivetrain offers seamless shifting and quick gear changes. This feature allows riders to maintain momentum and tackle diverse trails effortlessly.

Riders Height (cm)

Cube Stereo Hybrid ONE77 HPC AT 800 Electric Enduro Bike Actionteam geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
