$2200 Off Full Price

Cube Kathmandu Hybrid ONE 625 Electric Hardtail Mountain Bike Swampgrey'n'Black

Cube Kathmandu Hybrid ONE 625 Electric Hardtail Mountain Bike Swampgrey'n'Black

Brand: Cube

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Bosch Performance CX Gen 4 Motor

Alloy Frame/ Suntour Fork

100mm Front Travel

625Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Cube Kathmandu Hybrid ONE 625 Electric Hardtail Mountain Bike is designed for both urban commuting and light off-road trails. It features a lightweight Aluminium Superlite frame, a powerful Bosch mid-drive motor, and an integrated 625Wh battery, providing a smooth and efficient ride for any adventure.

Key Features

Bosch motor with 85 Nm of torque
625Wh integrated battery for extended range
Shimano Deore 1x10-speed drivetrain
Reliable Shimano hydraulic disc brakes
SR Suntour fork with 100mm travel

Specifications

Product Overview

Product

Cube Kathmandu Hybrid ONE 625 Electric Hardtail Mountain Bike Swampgrey'n'Black

Brand

Cube

Parent SKU

Cube24KathmanduHybridONE625EasyEntrySwampgreynBlack

Size SKUs

XS: CUEB698215EE46
SM: CUEB698215EE50
MD: CUEB698215EE54
LG: CUEB698215EE58

Matrix Barcodes

XS: 4054571454355
SM: 4054571454362
MD: 4054571454379
LG: 4054571454386

Year Model

2024

Product Features

Frame Material

Alloy

Frame Style

Step-Through

Colour

Grey

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

100mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Bosch

Motor

Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System, 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

625

Battery

Bosch PowerTube 625

Max. Range (KMs)

Display

Bosch Intuvia 100

Build

Frame

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)

Fork

SR Suntour NVX30 Coil, 100mm

Handlebars

CUBE Comfort Trail Bar, 700mm

Headset

M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120Â°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135Â°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

Grips

ACID Travel Comfort

Stem

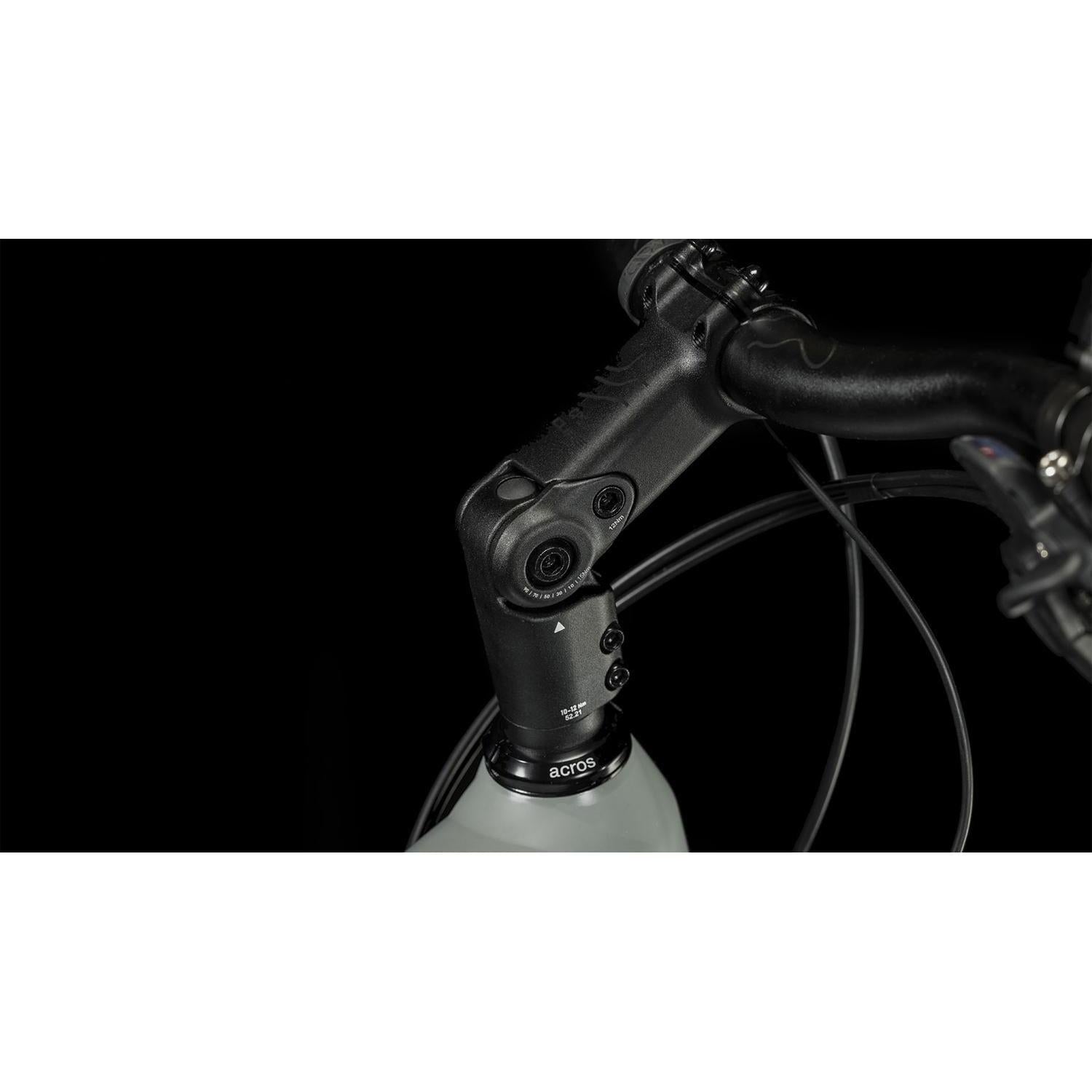

CUBE Comfort Stem Pro, 31.8mm, Adjustable

Pedals

ACID PP Trekking

Saddle

Natural Fit Sequence Comfort

Seat Post

CUBE Suspension Seatpost HD, 30.9mm

Wheels

Rims

CUBE EX23, 36H, Disc

Tyres

Schwalbe Big Ben, Performance, K-Guard, 55-622

Groupset

Crankset

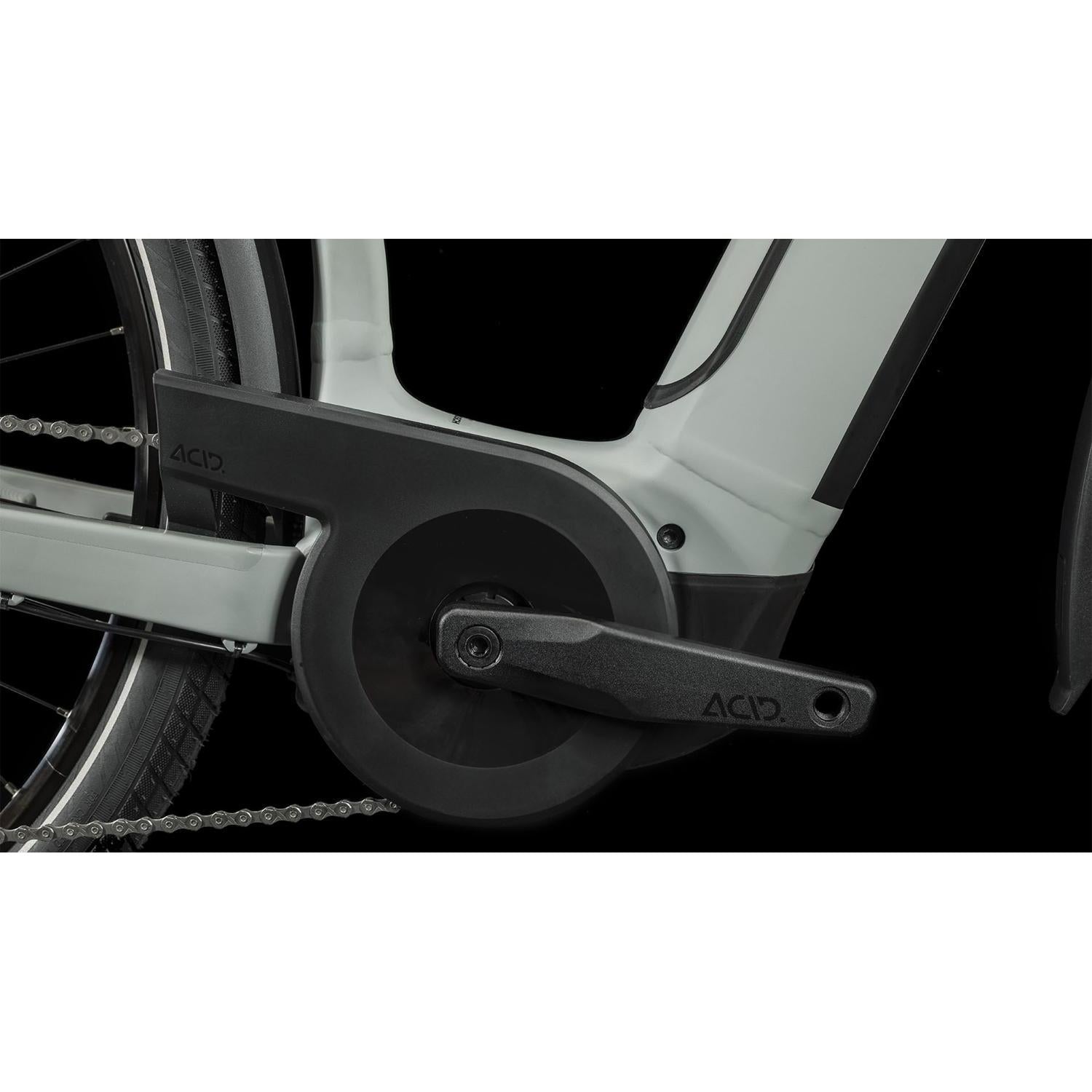

ACID E-Crank, 40T, 175mm (EE: 170mm)

Chain

KMC X10

Brakes

Shimano BR-MT200, Hydr. Disc Brake (180/180)

Front Rotor

180mm

Rear Rotor

180mm

Shifters

Shimano Deore SL-M4100-R, Rapidfire-Plus

Rear Derailleur

Shimano Deore RD-M4120-SGS, 10-Speed

Cassette

10 Speed

Frequently Asked Questions

What is the Cube Kathmandu Hybrid ONE 625 used for?

The Cube Kathmandu Hybrid ONE 625 is designed for both urban commuting and off-road adventures, offering versatility and performance.

Why choose the Cube Kathmandu Hybrid ONE 625?

This bike stands out due to its lightweight aluminium frame, integrated battery, and advanced internal cable routing, providing a sleek and efficient ride.

Who is the Cube Kathmandu Hybrid ONE 625 designed for?

The Cube Kathmandu Hybrid ONE 625 is ideal for cyclists seeking a reliable and high-performing e-bike for both city and trail riding.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Cube Kathmandu Hybrid ONE 625 Electric Hardtail Mountain Bike Swampgrey'n'Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Lightweight Aluminium Frame

Engineered with Gravity Casting Technology, the frame provides an optimal balance of strength and weight. This design enhances maneuverability and comfort during rides.

Precise Shifting

The Shimano Deore 10-speed drivetrain ensures accurate and reliable gear changes. This feature allows riders to tackle various terrains with ease and confidence.

Hydraulic Disc Brakes

Equipped with Shimano BR-MT200 brakes, the bike delivers consistent and powerful stopping performance. This enhances safety and control, especially on steep descents or in wet conditions.

Riders Height (cm)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
