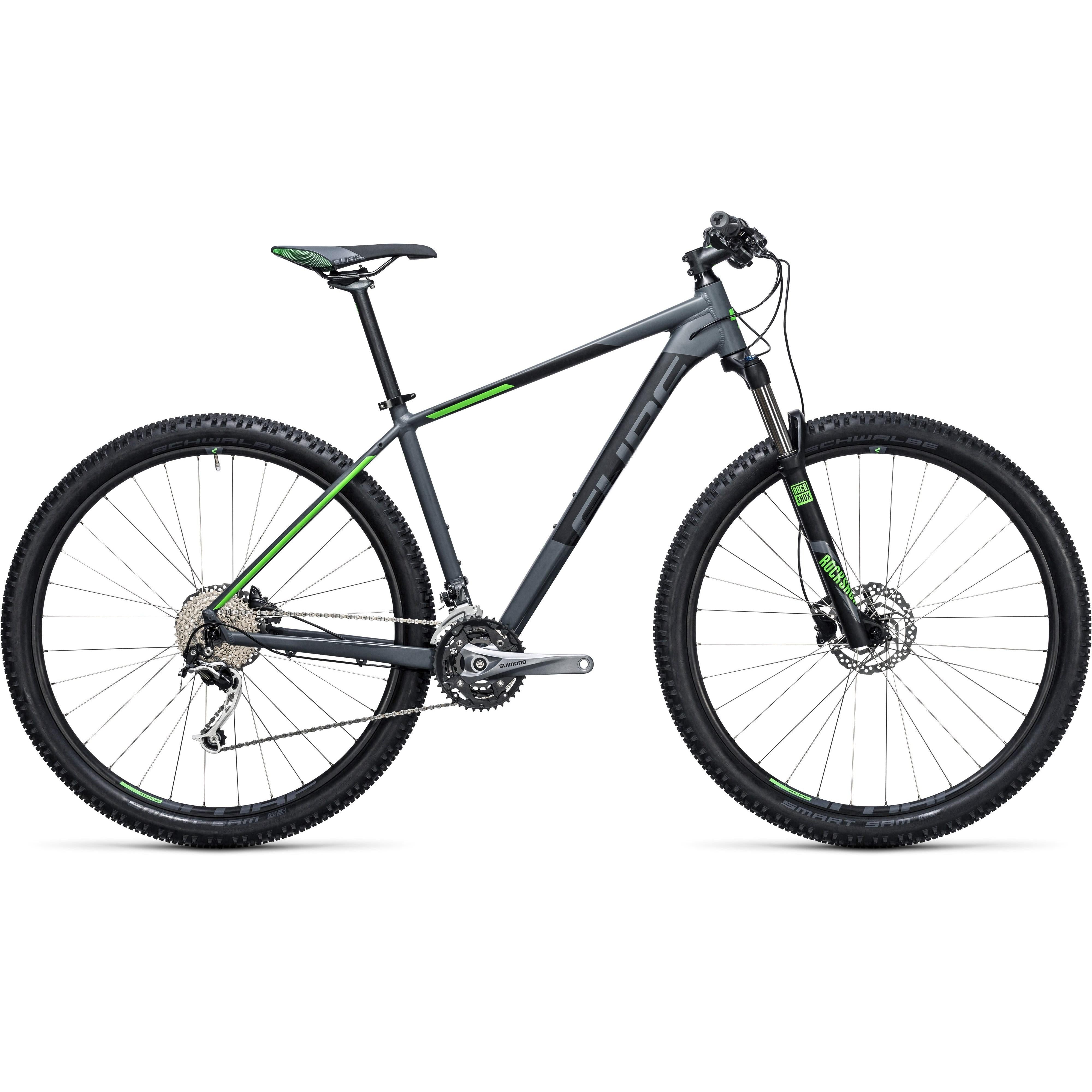

Cube Analog Mountain Bike 27.5inch (2017)
Cube Analog Mountain Bike 27.5inch (2017)
No location set
Click & Collect:
In Store
Available Nearby:
No location set
Product Details
Product Details
Description
Everything you need in one Bike! The Analog has got it all. High quality frame and components, balanced handling and fast response making it ideal for every occasion, whether you hitting the long trails or out for a leisurely ride.
FEATURES
- Advanced Mechanical Forming – Advanced forming without welding, allowing for an organic look with lighter and stiffer frames
- Agile Ride Geometry-
- Increased fork offsets for generous toe clearance to the front wheel
- Shortened chain stays without compromising the seat angle
- BB height the same as 26” bikes for a more natural ride position
- Aluminium Lite – 6061 aluminium alloy frame – stiff, light and corrosion resistant
- Easy Mount Kickstand
- Frame Safe System – Built with Frame Save System for added safety, allowing for easy replacement in the case of a crash
- Integrated Cable Routing – Internal cable routing for a clean finish and pro-longed life
- Wet Paint Surface – Multi-layer wet paint applied for weight saving
SPECIFICATIONS
FRAME | Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready |
COLOR | darkgrey´n´green |
SIZE | 27.5: 14", 16", 18" // 29er: 17", 19", 21", 23" |
FORK | Rock Shox XC 30 TK Coil, 100mm, Remote Lockout |
HEADSET | FSA No.10, Semi-Integrated |
STEMCUBE | Performance Pro, 31.8mm |
HANDLEBAR | CUBE Rise Trail Bar, 680mm |
GRIPSCUBE | Performance Grip |
REAR DERAILLEUR | Shimano XT RD-M772, Shadow, 9-Speed |
FRONT DERAILLEUR | Shimano FD-M4000, Downswing, 31,8 |
SHIFTERS | Shimano SL-M4000, Rapidfire-Plus |
BRAKE SYSTEM | Shimano BR-M315, Hydr. Disc Brake (160/160) |
CRANKSET | Shimano FC-M3000, 40x30x22T, 175mm |
CASSETTE | Shimano CS-HG300, 12-36T |
CHAIN | Shimano CN-HG53 |
RIMS | CUBE ZX20, 32H, Disc |
FRONT HUB | Shimano HB-TX505 |
REAR HUB | Shimano FH-TX505 |
TIRES | Schwalbe Smart Sam, Active, 2.25" |
PEDALS | CUBE PP MTB |
SADDLE | CUBE Active 1.1 |
SEAT POST | CUBE Performance Post, 27.2mm |
SEATCLAMP | CUBE Varioclose, 31.8mm |
WEIGHT | 14.2 kg |
COMPONENTS SUMMARY
With a high quality 3x9 Shimano gear system suitable for all-round use and an XT rear derailleur for the best gear shifting experience, the 2017 Analog has everything you need.. Hydraulic Shimano BR M315 disc brakes - with 160mm rotors - provide reliable braking, even in wet and muddy trail conditions. The superb RockShox XC30 suspension fork with 100mm travel offers peerless performance at this price - comfort and control, rolled into one. With their 2.25 inch profile, Schwalbe's Smart Sam tyres improve ride comfort and increase traction. High quality aluminium CUBE finishing kit, with a performance-orientated but comfortable Active 1.1 saddle, round off this superb bike.
Specifications
Specifications
*Please note: bike specifications are subject to change by the manufacturer without notice. These changes may not be reflected in product info and images.
