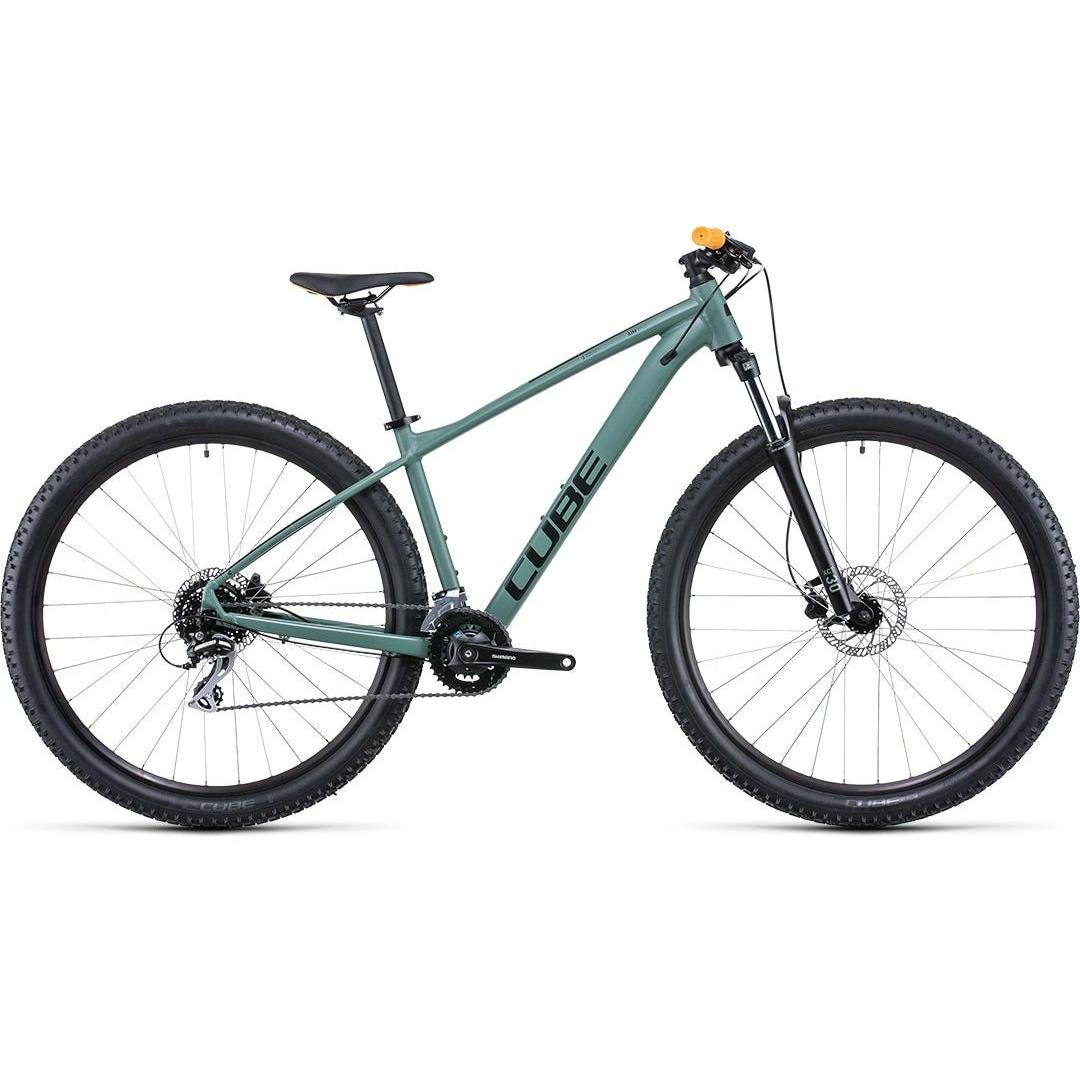

Cube Aim Pro Hardtail Mountain Bike Olive 'n' Orange

Brand: Cube

SKU: Select a size

Size: Select a size

MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

29" / 27.5" (Varies by Frame Size) Wheel Size

Hydraulic Disc Brake

Shimano Rapidfire Groupset

2 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Cube Aim Pro is a versatile hardtail mountain bike made from lightweight aluminum with internal cable routing for extended maintenance intervals. It features a 2 x 8 speed Shimano Drivetrain for climbing and cruising, and a Suntour XCT Fork with 100mm of travel. The 2.25" tires provide excellent grip and comfort. Tektro hydraulic disc brakes ensure powerful and responsive braking in all conditions. The design includes a lower top tube and wide handlebars for agile handling. This bike is ideal for cross country trails.

Specifications

Product Overview

Product

Cube Aim Pro Hardtail Mountain Bike Olive 'n' Orange

Brand

Cube

Parent SKU

Cube22AimProoliveorange

Size SKUs

XS: CUHT2280150014
SM: CUHT2280150016
MD: CUHT2280150018
LG: CUHT2280150020
XL: CUHT2280150022
XXL: CUHT2280150024

Matrix Barcodes

XS: 4054571419231
SM: 4054571419248
MD: 4054571419255
LG: 4054571419262
XL: 4054571419279
XXL: 4054571419286

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Green

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

2 x 8

Front Travel

100mm

Build

Frame

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

Fork

SR Suntour XCT HLO, 100mm

Handlebars

CUBE Rise Trail Bar, 680mm

Grips

Natural Fit Performance

Pedals

CUBE PP MTB

Saddle

Natural Fit Venec Lite

Seat Post

CUBE Performance Post, 27.2mm

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

CUBE ZX20, 32H, Disc

Hubs

CUBE Alloy Light, QR, 6-Bolt

Tyres

CUBE IMPAC Smartpac, 2.25

Groupset

Crankset

Shimano FC-M315, 36x22T, 170mm

Chain

KMC Z8.3

Brakes

Clarks Clout 1, Hydr. Disc Brake (160/160)

Shifters

Shimano SL-M315, Rapidfire-Plus

Front Derailleur

Shimano FD-M315, Top Swing, 31.8mm Clamp

Rear Derailleur

Shimano RD-M360, 8-Speed

Cassette

8 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Cube Aim Pro Hardtail Mountain Bike Olive 'n' Orange we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

SM/MD

MD/LG

XXL

Cube Aim Pro Hardtail Mountain Bike Olive 'n' Orange geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

656

Reach

441

Top Tube Length

635

Seat Tube Length

515

Seat Tube Angle

73.5

Fork Length

Head Tube Length

142

Head Tube Angle

68.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

824

Minimum Seat Height

Maximum Seat Height
