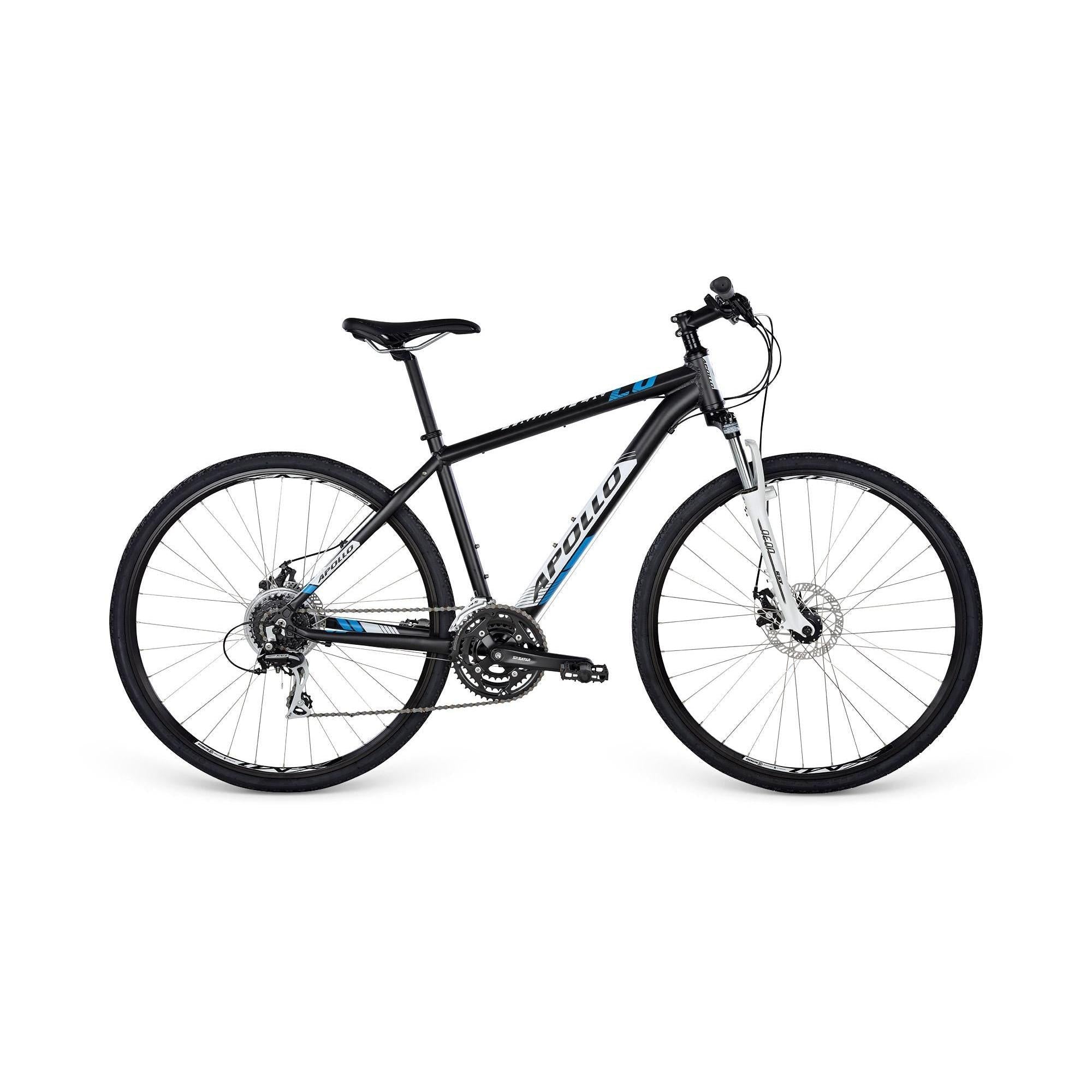

Apollo Transfer 20 Hybrid Bike Black/White/Blue (2017)
Apollo Transfer 20 Hybrid Bike Black/White/Blue (2017)
No location set
Click & Collect:
In Store
Available Nearby:
No location set
Product Details
Product Details
Description
Perfect for everyday commuting, the Apollo Transfer is built on a lightweight, comfortable frame.
FEATURES:
- 700c alloy frame, with Apollos performance geometry.
- RST Neon suspension fork with 60mm of travel and
- Mechanical lockout.
- Alloy hubs, with Weinmann double wall rims.
- 700c x 38c urban multi-terrain tyres.
- 24 speed Shimano EZ-fire shifting.
- Oversized 31.8mm handlebar and stem
- Powerful mechanical disc brakes, with 160mm rotors.
- Apollo custom comfort grip.
ABOUT THE TRANSFER:
SPECIFICATIONS:
| FRAME | 6061 butted alloy frame with integrated head tube, pannier mounts and replaceable derailleur hanger. |
| FORK | RST Neon suspension fork, 60mm travel with lockout and preload. Alloy crown with alloy lowers |
| REAR SHOCK | |
| HEADSET | A-head semi integrated 1-1/8" with 10mm cone spacer |
| HANDLEBAR | Alloy low riser, bore: 31.8mm, W: 600mm wide, sweep: 6° |
| GRIP | Kraton ERGO comfort grip |
| HEADSTEM | Alloy, 31.8mm, S=70mm, M/L=90mm, XL=105mm |
| CRANKSET | Suntour XCE 48 x 38 x 28T L: S/M=170mm, L/XL=175mm |
| BOTTOM BRACKET | Cartridge bottom bracket |
| PEDALS | Low profile high impact resin |
| F.DERAILLEUR | Shimano M191 8 speed for 31.8 |
| R.DERAILLEUR | Shimano Acera 8 speed |
| SHIFT LEVERS | Shimano EF-51 Ez Fire 24 speed |
| FREEWHEEL | Shimano 8 speed cassette 12-32T |
| CHAIN | KMC Z-7 |
| BRAKES | TEKTRO MD-280 mechanical disc brakes with 160mm rotors |
| WHEELS | 700c Weinmann X-M1 double wall rims, 32 hole A/V, alloy quick release disc hubs with stainless spokes |
| TYRES | Urban multi terrain, 700 x 38c wire bead |
| SADDLE | Factor Ergotech dual density saddle |
| SEATPOST / CLAMP | Alloy 27.2mm micro adjust |
| EXTRAS | Matte black / matte white / matte blue |
GEOMETRY:
| S | M | L | XL | |
| STACK | 573 | 584 | 600 | 615 |
| REACH | 380 | 402 | 416 | 426 |
| STAND OVER HEIGHT | 409 | 441 | 473 | 504 |
| EFFECTIVE TOP TUBE LENGTH | 550 | 575 | 600 | 620 |
| SEAT TUBE (CENTRE TO TOP) | 400 | 457 | 508 | 560 |
| SEAT ANGLE | 73.5° | 73.5° | 73.0° | 72.5° |
| HEAD TUBE LENGTH | 100 | 110 | 125 | 140 |
| HEAD ANGLE | 71.0° | 71.5° | 72.0° | 72.0° |
| WHEEL BASE | 1043 | 1062 | 1077 | 1091 |
| CHAIN STAY LENGTH | 440 | 440 | 440 | 440 |
| BB DROP | 50 | 50 | 50 | 50 |
| FORK RAKE | 44 | 44 | 44 | 44 |
| AXLE TO CROWN | 470 | 470 | 470 | 470 |
| REAR DROPOUT SPACING | 135 | 135 | 135 | 135 |
