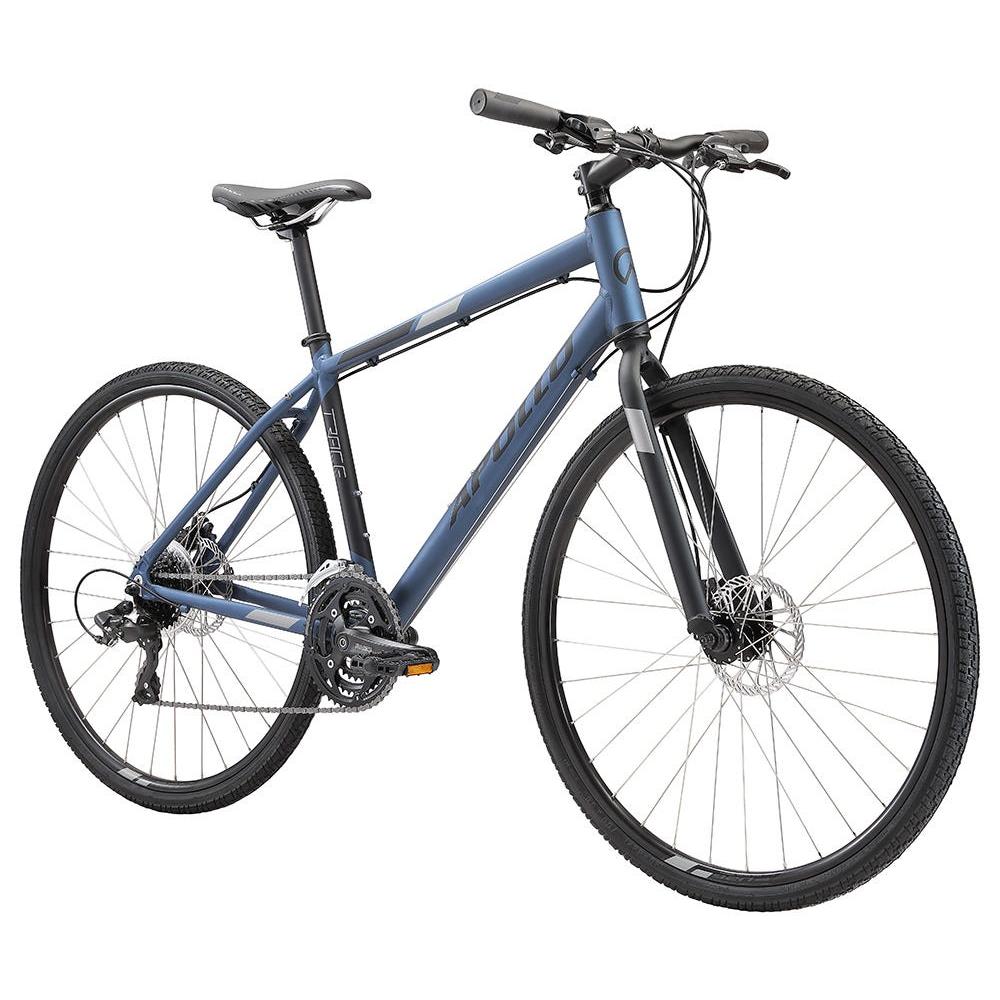

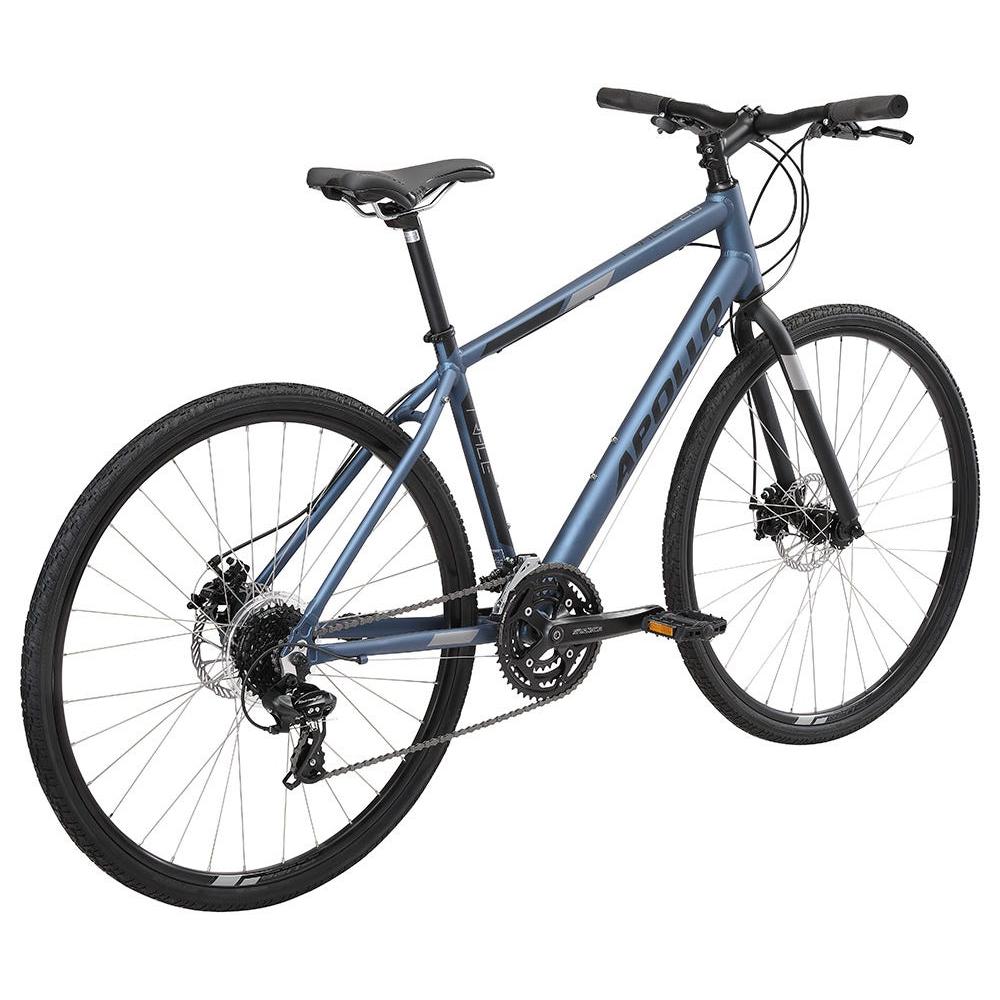

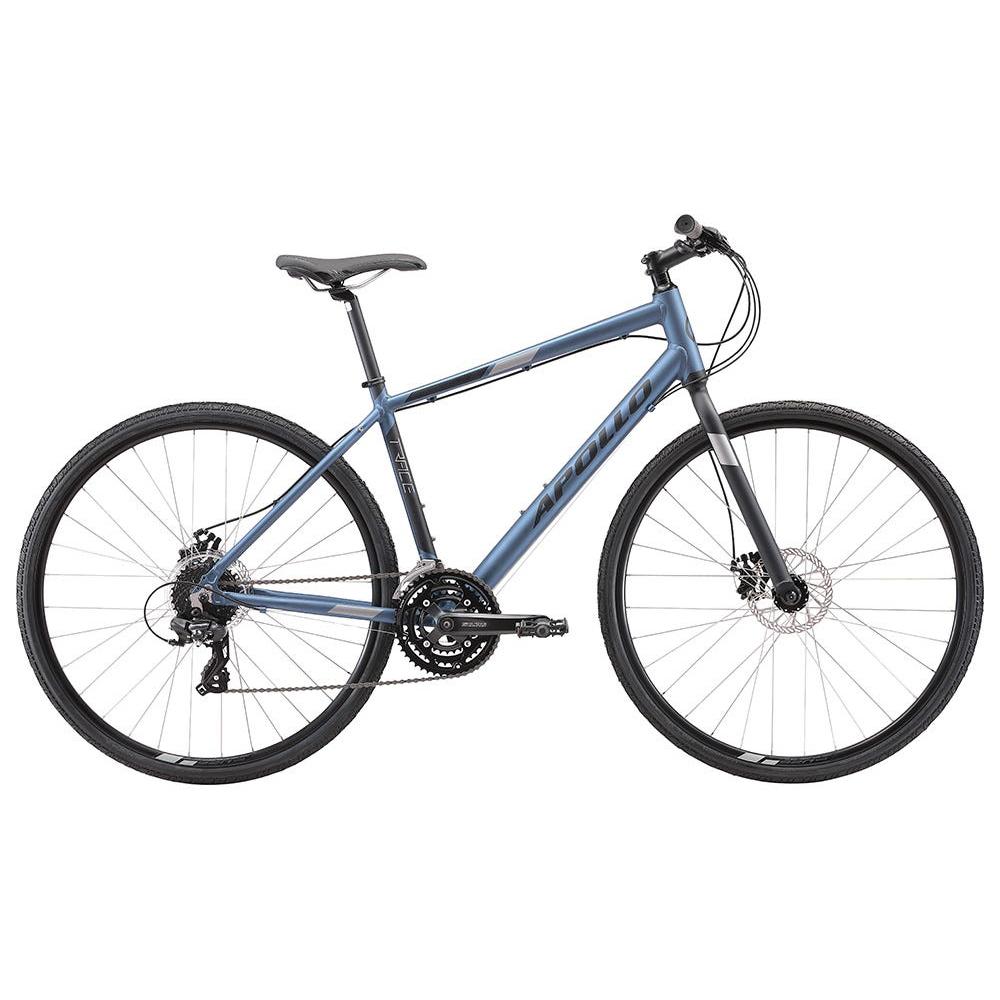

Apollo Trace 20 Flat Bar Road Bike Slate/Black

Apollo Trace 20 Flat Bar Road Bike Slate/Black

Brand: Apollo

SKU: Select a size

Size: Select a size

SM LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Steel Fork

700c Wheel Size

Mechanical Disc Brake

Shimano Tourney Groupset

3 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Apollo Trace 20 is a flat bar road bike designed for commuters and recreational riders seeking more from their daily rides. Its lightweight alloy frame offers easy handling and maneuverability, making it ideal for climbing steep hills. The bike's relaxed yet sporty geometry ensures a comfortable ride. Riser handlebars provide a more upright sitting position compared to traditional flat bar road bikes, enhancing comfort without compromising efficiency. This upright position also improves visibility and control for the rider.

Specifications

Product Overview

Product

Apollo Trace 20 Flat Bar Road Bike Slate/Black

Brand

Apollo

Parent SKU

2022APOLLOTRACE20

Size SKUs

SM: AP22004
MD: AP22005
LG: AP22006
XL: AP22007

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

700c

Brake Type

Mechanical Disc Brake

Gears

3 x 8

Fork Material

Steel

Build

Frame

Alloy

Fork

700c disc specific hi-ten rigid integrated trekking fork with rack and fender mounts

Handlebars

Low riser, bore: 31.8mm, W:600mm, sweep: 6-deg

Grips

Kraton ERGO comfort grip

Stem

Alloy, 31.8mm, S=70mm, M/L=90mm, XL=105mm

Bottom Bracket

Cartridge bottom bracket

Pedals

Low profile high impact resin

Saddle

Apollo Ergotech dual density saddle

Wheels

Wheel Size

700c

Rims

700c Weinmann U-26 double wall disc specific rims

Hubs

Tyres

Kenda Urban Sport 700 x 38c wire bead

Spokes

Stainless

Groupset

Crankset

Suntour XCE 48 x 38 x 28T L: S/M=170mm, L/XL=175mm

Chain

KMC Z-7

Brakes

JAK-8 mechanical disc brakes with 160mm rotors

Front Rotor

160mm

Rear Rotor

160mm

Shifters

Shimano EF-500 Ez Fire 24 speed

Front Derailleur

Shimano FD-TY710

Rear Derailleur

Shimano RD-TX800 8 speed

Cassette

8 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Apollo Trace 20 Flat Bar Road Bike Slate/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

Apollo Trace 20 Flat Bar Road Bike Slate/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
