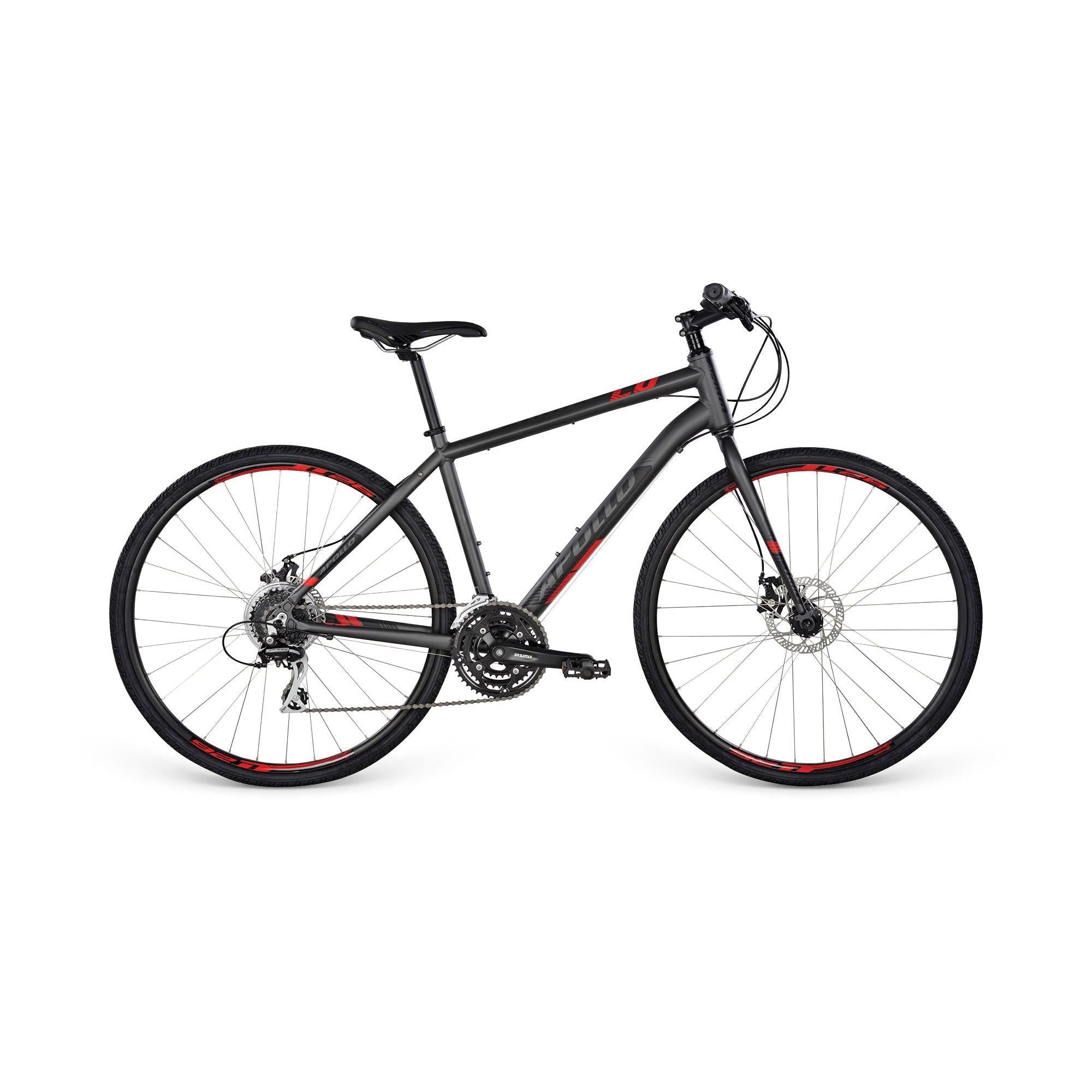

Apollo Trace 20 Flat Bar Road Bike Charcoal/Black/Red (2017)
Apollo Trace 20 Flat Bar Road Bike Charcoal/Black/Red (2017)
No location set
Click & Collect:
In Store
Available Nearby:
No location set
Product Details
Product Details
Description
Apollo Trace 20 is a versatile flat bar road bike, ideal for around town riding, commuting and generally keeping fit. Apollo Trace 20 combines the speed and efficieny of a road bike with a more comfortable riding position and easy handling thanks to the flat bars.
A robust alloy frame and rigid fork makes the bike lightweight and durable. Fast rolling 700c wheels and oversized tyres help to cushion the ride and provide confident handling. Mechanical disc brakes gives reliable stopping power in all weather conditions. Reliable Shimano shifting offers trouble free operation and great performance.
Overall, Apollo Trace 20 is a great option for anyone looking for a versatile bike option for both fitness and transport.
LEARN MORE ABOUT APOLLO TRACE:
SPECIFICATIONS:
| FRAME | 6061 butted alloy frame with integrated head tube, pannier mounts and replaceable derailleur hanger. |
| FORK | 700c disc specific hi-ten rigid integrated trekking fork with rack and fender mounts |
| REAR SHOCK | |
| HEADSET | A-head semi integrated 1-1/8" with 10mm cone spacer |
| HANDLEBAR | Alloy low riser, bore: 31.8mm, W: 600mm, sweep: 6° |
| GRIP | Kraton ERGO comfort grip |
| HEADSTEM | Alloy, 31.8mm, S=70mm, M/L=90mm, XL=105mm |
| CRANKSET | Suntour XCE 48 x 38 x 28T L: S/M=170mm, L/XL=175mm |
| BOTTOM BRACKET | Cartridge bottom bracket |
| PEDALS | Low profile high impact resin |
| F.DERAILLEUR | Shimano M191 8 speed for 31.8 |
| R.DERAILLEUR | Shimano Acera 8 speed |
| SHIFT LEVERS | Shimano EF-51 Ez Fire 24 speed |
| FREEWHEEL | Shimano 8 speed cassette 12-32T |
| CHAIN | KMC Z-7 |
| BRAKES | TEKTRO MD-280 mechanical disc brakes with 160mm rotors |
| WHEELS | 700c Weinmann U-26 double wall disc specific rims, 32 hole A/V, alloy quick release disc hubs with stainless spokes |
| TYRES | Urban sport 700 x 38c wire bead |
| SADDLE | Factor Ergotech dual density saddle |
| SEATPOST / CLAMP | Alloy 27.2mm micro adjust |
| COLOUR | Matte charcoal / matte black / matte red |
GEOMETRY:
| S | M | L | XL | |
| STACK | 559 | 585 | 606 | 625 |
| REACH | 384 | 402 | 415 | 423 |
| STAND OVER HEIGHT | 392 | 431 | 465 | 498 |
| EFFECTIVE TOP TUBE LENGTH | 550 | 575 | 600 | 620 |
| SEAT TUBE (CENTRE TO TOP) | 400 | 457 | 508 | 560 |
| SEAT ANGLE | 73.5° | 73.5° | 73.0° | 72.5° |
| HEAD TUBE LENGTH | 130 | 155 | 175 | 195 |
| HEAD ANGLE | 71.0° | 71.5° | 72.0° | 72.0° |
| WHEEL BASE | 1040 | 1060 | 1075 | 1090 |
| CHAIN STAY LENGTH | 440 | 440 | 440 | 440 |
| BB DROP | 60 | 60 | 60 | 60 |
| FORK RAKE | 45 | 45 | 45 | 45 |
| AXLE TO CROWN | 416 | 416 | 416 | 416 |
| REAR DROPOUT SPACING | 135 | 135 | 135 | 135 |
AVAILABLE ONLINE (CLICK & COLLECT)/ IN-STORE
Specifications
Specifications
*Please note: bike specifications are subject to change by the manufacturer without notice. These changes may not be reflected in product info and images.
