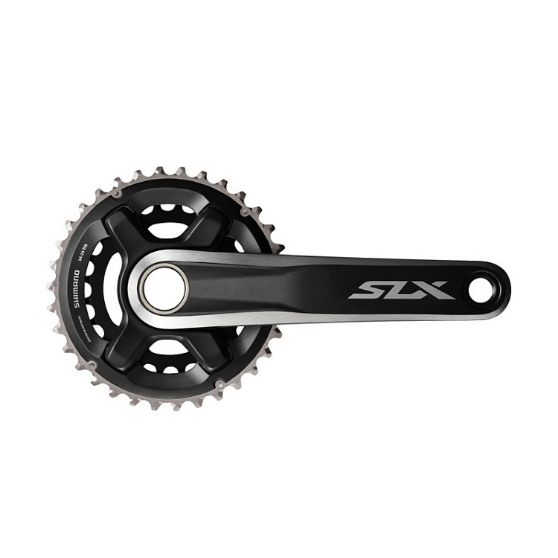

Shimano SLX M7000 170mm Crankset 34-24

Shimano SLX M7000 170mm Crankset 34-24

Brand: Shimano

SKU: IFCM7000CX44

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Available Nearby:

Select a size to view stock availability at this store.
Shipping to:

No location set

Select a size to view stock availability at this location.

Product Details

Description

Perfect for 2x11 MTB drivetrains, the SLX FC-M7000-11-2 crank uses a new 3D composite chainring for improved driving rigidity. It is available with 38-28, 36-26, and 34-24T chainrings.

Features

  • Solid pedaling efficiently without loss
  • New 3D composite chain ring's teeth composition is optimized for each chainwheel load out
  • Balance of strength and lightweight by HOLLOWTECH II crank construction
  • Improved driving rigidity
  • Close ratio gear combination for minimum shifting gap and maintaining rhythm (FC-M7000-11-2)
  • Enhanced chain retention (FC-M7000-11-1)
  • Better sealing and better rotation

Specifications

MODEL NO FC-M7000-11-2
SERIES SLX M7000 Series
Color Series color
Average weight 739.8 g (34-24T)
Chain line (mm) 48.8
Chain ring combination 38-28T, 36-26T, 34-24T
Compatible BB type Outboard
Compatible chain HG-X11
Crank Arm Length 170 mm, 175 mm
Crank fixing bolt included ✔
Gear arms 4 arm
HOLLOWTECH II ✔
Optional Chain Guard Without chain/bash guard
P.C.D. (mm) 96/64
Rear speeds 11
Recommended BB_Pressfit BB-MT800-PA
Recommended BB_Threaded (normal) BB-MT800
Technology HOLLOWTECH II
Threaded BB Shell Width 68 mm, 73 mm
Crank arm fixing bolt_With ✔
Includes Crank Arm Fixing Bolt Yes
Q-factor (mm) 176
