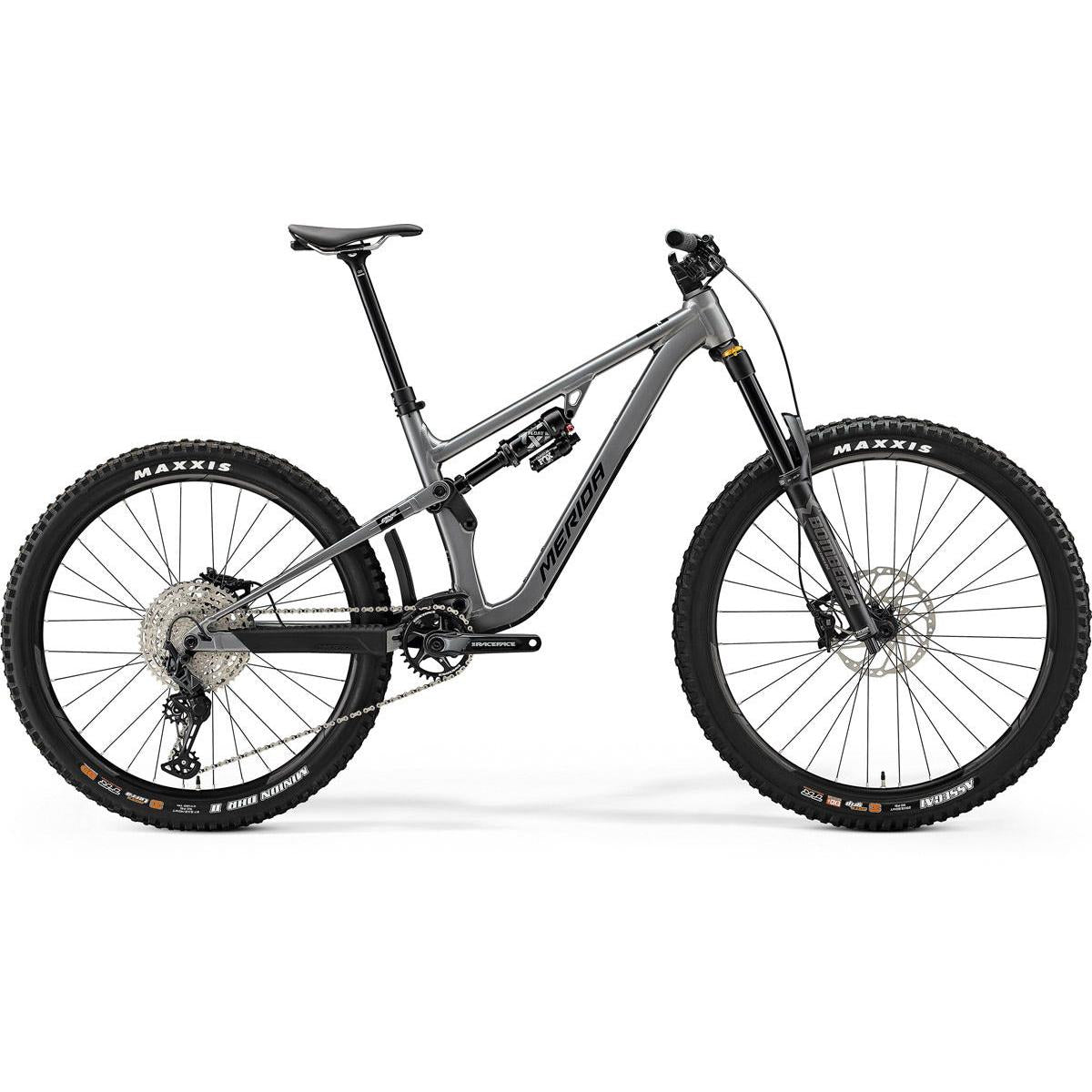

Merida One-Sixty 700 Dual Suspension Mountain Bike Grey/White

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express delivery — fastest option $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Marzocchi Fork

170mm Front Travel / 170mm Rear

29" Wheel Size

Shimano Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The ONE-SIXTY 700 features a high-value, fully equipped all-aluminium frame with cutting-edge enduro performance. It boasts modern geometry and the new FAST kinematic suspension for a smooth ride, complemented by quality Marzocchi and Fox suspension components. The Shimano 12-speed Deore drivetrain ensures reliable shifting, while four-piston brakes provide excellent control.

Specifications

Product Overview

Product

Merida One-Sixty 700 Dual Suspension Mountain Bike Grey/White

Brand

Merida

Parent SKU

22MeridaOne-Sixty700GunmetalGrey/Grey/White

Size SKUs

XS: MEDE2269869
SM: MEDE2269870
MD: MEDE2269881
LG: MEDE2269892
XL: MEDE2269900

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Grey

Wheel Size

29"

Gears

1 x 12

Front Travel

170mm

Rear Travel

170mm

Weight Limit

135kg (includes bike)

Build

Frame

ONE-SIXTY LITE III; 171 STR mullet / 162 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

Marzocchi Z1; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max. WHS

Shock

Fox Float X Performance; platform

Handlebars

MERIDA TEAM TR; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB

Headset

MERIDA-8151 1-1/8"-1.5" cartridge bearing set

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD

Bottom Bracket

Race Face BSA 68/73 - 24mm

Saddle

MERIDA EXPERT SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR; 34.9 DSP; 0 SSB; all sizes 30-230 SPT

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); rear 27.5" up to Size M / L & XL rear 29"

Spokes

Double Butted Black stainless

Groupset

Crankset

Race Face Aeffect; 32 ATC

Chain

KMC X12

Rear Derailleur

Shimano SLX M7100 Shadow+; SGS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Sixty 700 Dual Suspension Mountain Bike Grey/White we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Prolite 66 Triple Butted Aluminium

Using high-end 6066 aluminium and triple-butted wall thicknesses, this frame offers strength and durability without excess weight. The hydroforming technology helps to tune the aluminium tubes to give the best possible stiffness-to-weight ratio.

Tapered Head Tube

This design is stiffer than a conventional straight head tube and yields a more secure ride feel even in difficult terrain. Minimal flex at the front of the frame means the greatest possible steering precision. With the larger steerer, the forks become more rigid and the weight is saved due to the absence of bearing shells as the lower bearing is fully integrated into the head tube.

Internal Cable Routing

With internal cable routing you have the benefit of a modern clean look and the added benefit of preventing rust and fraying of your shift and brake cable, being internal also means your cables are protected while in storage or being transported on the car!

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida One-Sixty 700 Dual Suspension Mountain Bike Grey/White geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
