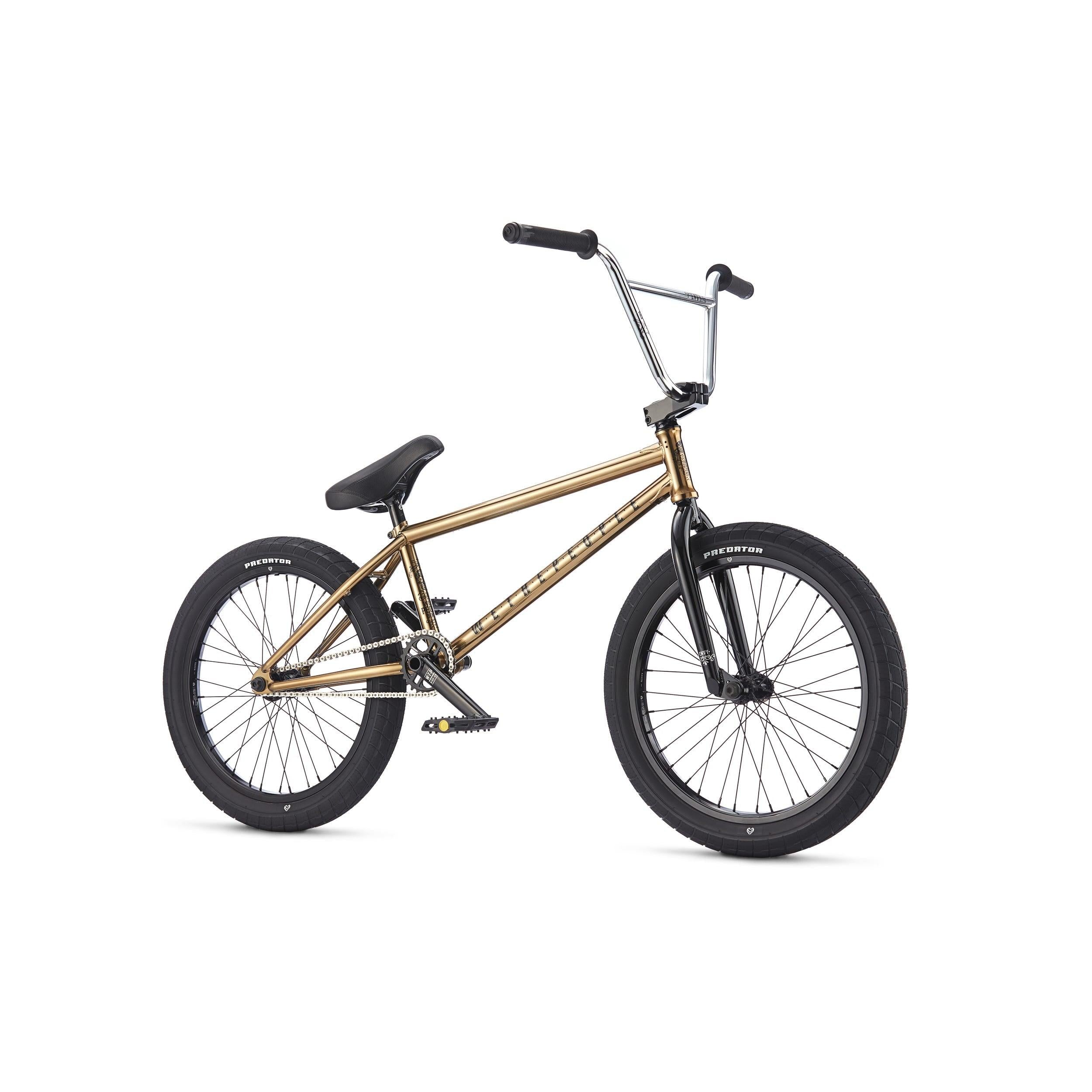

The Envy BMX Bike from WTP (We The People) is built on a 20" Frame with a 21.15" Top Tube. The 2017 model has all new frame geometry making it suitable for skatepark/street and dirt riding. It also features eclat grips, tyres and rims.
FEATURES:
- 20" BMX Bike
- Full high end BMX bike with WTP, Saltplus and éclat Aftermarket parts
- All-round inspired geometry for skatepark/street/dirt riding
- Available in 20.6" or 21.15" toptube options
- Taller standover on 21.15" option
- Gold Nickel finish
- Full crmo frame, heat-treated bar and fork
- Oversize clamping 25.4mm WTP Hydra stem and Envy bars
- éclat Bruno Hoffmann Predator Tires and BRUNO grips
- WTP Supreme female hubs laced to éclat Raven rims
- WTP 2 & 1/2 pc Legacy cranks
- RSD/LSD switchable cassette hub
SPECIFICATIONS:
| FRAME | 4130 full sanko, tapered CS and SS, removable pivots & guides , intg. chain tensioner |
| FORK | WETHEPEOPLE “Envy” fork, full 4130 sanko with post liquid heat-treated, 1pc cnc steerer, 28mm offset |
| BARS | WETHEPEOPLE "Envy" bars full 4130 sanko, post liquid heat-treated, 25.4mm clamping |
| GRIPS | ÉCLAT “Bruno” Vex compound grips & ÉCLAT "Corx V2" barend |
| STEM | WETHEPEOPLE “Hydra” cnc alloy top loading stem, 25.4mm clamp, 26mm rise, 50mm reach |
| HEADSET | SALTPLUS "Echo" integrated headset, sealed bearing |
| GYRO | holes for removable gyro tabs |
| LEVER | ÉCLAT “Sniper” hinged alloy brake lever, two finger version |
| BRAKES | ÉCLAT "Talon" alloy u-brake-rear, with ÉCLAT brakepads |
| CRANKS | WETHEPEOPLE “LEGACY” 2.5 pc crank, crmo, 170mm, 48T spline, 22mm spindle |
| BB | ÉCLAT “CNC” mid size, press fit, sealed bearing |
| PEDALS | ÉCLAT “Slash” nylon/fiberglass pedals |
| CHAIN | SALTPLUS “Warlock” half-link chain |
| SPROCKET | WETHEPEOPLE “4Star” 6061-T6 alloy, 26t cnc sprocket |
| DRIVER | 9t, 1pc cassette driver, L&R switch drive, sealed bearing |
| FRONT HUB | WETHEPEOPLE “Supreme" hub, 3/8s" female bolts, 36h |
| REAR HUB | WETHEPEOPLE “Supreme” cassette hub, sb, 9t L&R switch drive,14mm hollow axle, 36h |
| HUB GUARDS | - |
| FRONT RIM | ÉCLAT “Raven” straight, double wall rim, 36h, flash welded |
| REAR RIM | ÉCLAT “Raven” straight, double wall rim, 36h, flash welded |
| SEAT | ÉCLAT “Oz” fat padded pivotal seat |
| SEAT POST | ÉCLAT "Torch" 230mm alloy pivotal seat post |
| SEAT CLAMP | integrated seat clamp |
| TIRES | ÉCLAT Bruno Hoffmann “Predator” 2.30" front & rear |
| PEGS | - |
| WEIGHT | 11.53kg / 25.42lbs (as pictured) |
GEOMETRY:
| TOP TUBE LENGTH | 20.6" | 21.15" |
| CHAIN STAY LENGTH | 13.55" |
| HEAD TUBE ANGLE | 75° |
| SEAT TUBE ANGLE | 71° |
| BOTTOM BRACKET HEIGHT | 11.5" |
| STAND OVER HEIGHT | 8.75" | 9" |
| BAR RISE | 9.2" |
| BAR WIDTH | 29.25" |
| BAR BACK SWEEP | 11° |
| BAR UPSWEEP | 2° |
