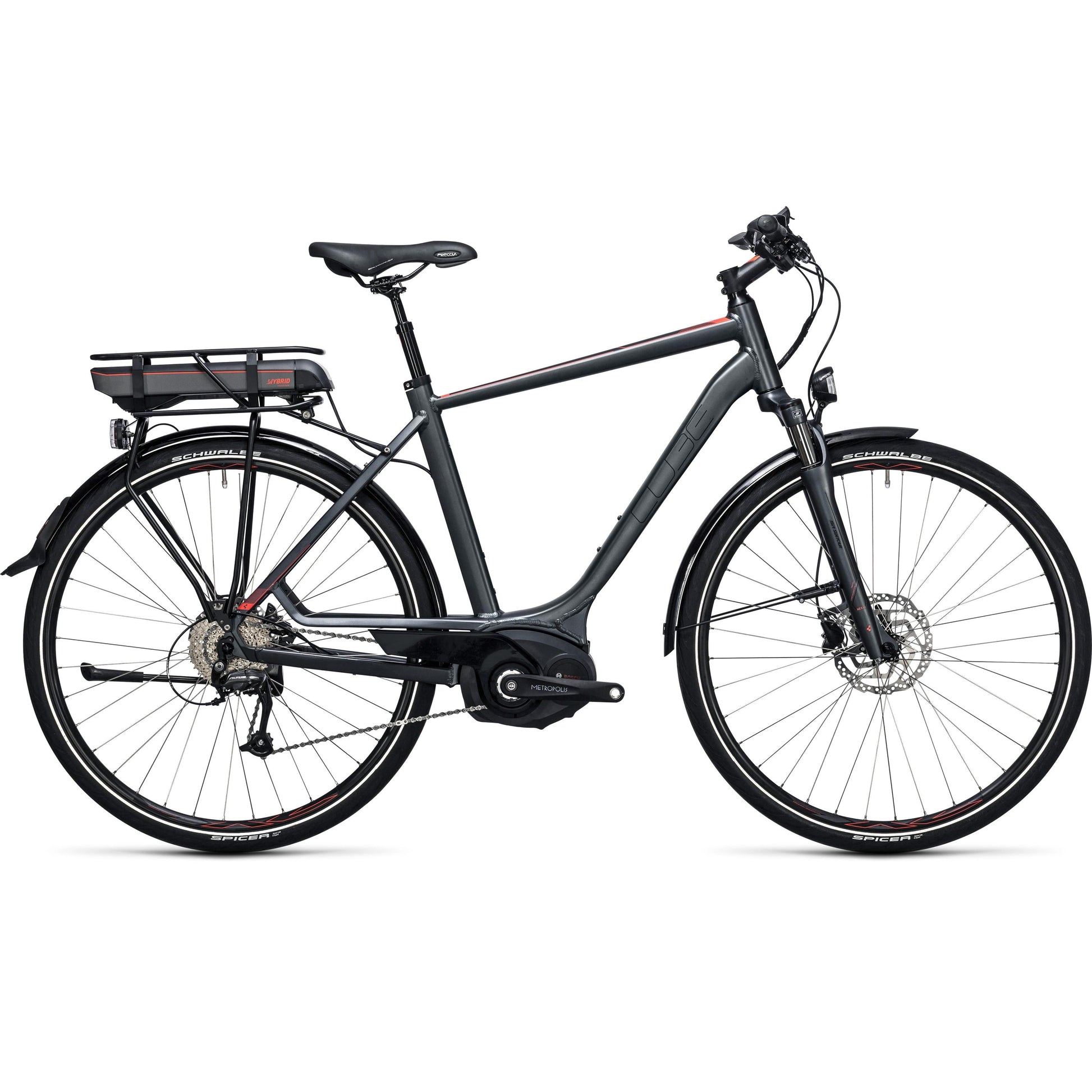

Cube Touring Hybrid 400 Electric Bike (2017)

Brand: Cube

SKU: 17CubeTouringHybrid400greyflashred

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

A fun, versatile bike, the Touring Hybrid from Cube will get you out and about. The E-bike is also perfect for daily commuting, with an alumininium frame and a 400wh battery, putting the confidence back into riding.

FEATURES

Easy Mount Kickstand
Frame Safe system – Built with Frame Save System for added safety, allowing for easy replacement in the case of a crash.
Integrated Cable Routing – Internal cable routing for a clean finish and pro-longed life.
Wet Paint Surface – Multi-layer wet paint applied for weight saving.

Handy Information on purchasing an E-Bike as well as Information on Australian Legislation can be found here.

ABOUT THE TOURING HYBRID SERIES

ABOUT THE BOSCH PERFORMANCE LINE CX

SPECIFICATIONS

FRAME	Aluminium Superlite, Trekking Hybrid Comfort, Double Butted
COLOR	grey´n´flashred
SIZE	Men: 50, 54, 58, 62; Trapeze: 46, 50, 54; Easy Entry: 46, 50, 54, 58
FORKS	R Suntour NEX-E25, 63mm
HEADSET	FSA No.10, Semi-Integrated
STEM	CUBE Performance Stem Pro, 31.8mm; EE: CUBE Comfort City Stem, 31.8mm
HANDLEBAR	CUBE Rise Trail Bar, 700mm; EE: CUBE Comfort Shape Bar
GRIPS	CUBE Natural Fit Comfort
REAR DERAILLEUR	Shimano RD-M370-SGS, 9-Speed
SHIFTERS	Shimano SL-M370, Rapidfire-Plus
BRAKE SYSTEM	Shimano BR-M315, Hydr. Disc Brake (180/160)
CRANKSET	FSA Metropolis Urban AL-8, 15T
CASSETTE	Shimano CS-HG300, 12-36T
CHAIN	KMC X9
RIMS	CUBE ZX20, 36H, Disc
FRONT HUB	Shimano HB-TX505, QR, Centerlock
REAR HUB	Shimano FH-TX505, QR, Centerlock
TIRES	Schwalbe Range Cruiser, Active, K-Guard, 40x622
PEDALS	CUBE PP Trekking
SADDLE	Selle Royal Freccia
SEAT POST	CUBE Suspension Seatpost, 27.2mm
SEATCLAMP	CUBE Hybrid Comfort Close, 31.8mm
FRONT LIGHT	Busch&Müller Lumotec Lyt B
BACKLIGHT	Busch&Müller Toplight Flat E Plus
KICKSTAND	CUBEstand Pro, Adjustable
MUDGUARDS	SKS Black Shiny
CHAIN PROTECTION	CUBE Hybrid Chainguard
BELL	Humpert
CARRIER	Racktime SnapIt Bosch Carrier
BATTERY	Bosch PowerPack 400
DISPLAY	Bosch Intuvia
Bosch 2A
ENGINE	Bosch Drive Unit Active (48Nm) Cruise (250Watt)
WEIGHT	23.9 kg

COMPONENTS SUMMARY

400Wh battery
9-speed Shimano transmission and Shimano BR-M315 hydraulic disc brakes with their 180mm rotor on the front wheel.
A CUBE suspension seatpost, combined with the Suntour NEX suspension fork for a comfortable ride whatever the terrain throws at you
Schwalbe's Spicer tyres also provide increased puncture resistance.
The Busch& Müller Lyt LED lighting system draws its power direct from the Bosch system and is easy to control via the display.
Custom-developed CUBE chain guide keeps oil and grime where it belongs - off your clothes - inconspicuosly and with utter reliability.

ENGINE/MOTOR SPECIFICATIONS: BOSCH ACTIVE LINE

Drive Unit:

	Cruise 25 km/h, Hub gear	Cruise 25 km/h, Derailleur gear
Gear shift detection	No	Yes
Maximum assistance Speed	25 km/h	25 km/h
Torque	48 Nm	48 Nm
Backpedal function	Optional	No
Weight	< 4 kg	< 4 kg

Drive Display Mode

Mode
Turbo	· Maximum power assist even at the highest pedaling frequencies for sport riding
	· At 100 % personal pedal power, the motor contributes an additional 225 %
Sport	· Immediate power assist for sport riding
	· At 100 % personal pedal power, the motor contributes an additional 150 %
Tour	· Consistent power for long tours
	· At 100 % personal pedal power, the motor contributes an additional 100 %
Eco	· Effective power for maximum range
	· At 100 % personal pedal power, the motor contributes an additional 40 %
Off	No support

Battery

	PowerPack 300	PowerPack 400
Mounting type	Frame battery / Rack battery	Frame battery / Rack battery
Voltage (V)	36 V	36 V
Capacity (Ah)	8,2 Ah	11 Ah
Energy content (Wh)	300 Wh	400 Wh
Weight (kg)	2,0 kg / 2,4 kg	2,5 kg / 2,6 kg

Charger

Charging time (at 4A)	50% charge	80% charge	100% charge
PowerPack 300	1 h	1.5 h	2.5 h
PowerPack 400	1.5 h	2 h	3.5 h

Specifications

*Please note: bike specifications are subject to change by the manufacturer without notice. These changes may not be reflected in product info and images.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike.
