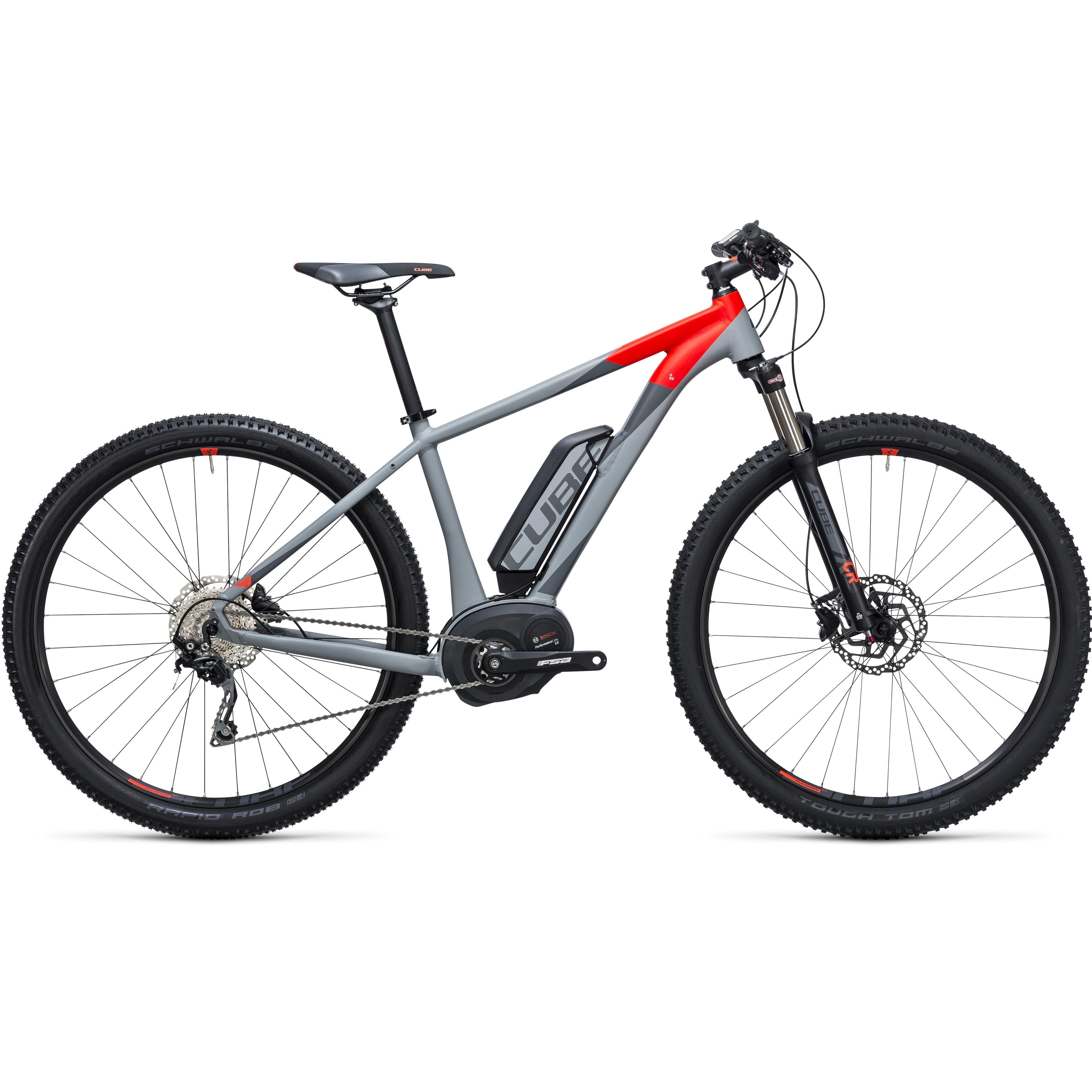

Cube Reaction Hybrid HPA Pro 500 17in grey flashred

Brand: Cube

SKU: 17CubeReactionHybridHPAPro500greyflashred

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

A hardtail with a a bit of extra oomph.The Reaction Hybrid HPA from Cube is an E-Mountain Bike with the Bosch CX Performance Line Technology for additional assistance.

FEATURES:

Advanced Hydroforming – Reduced number of welds bringing down the weight and increasing durability.
Tapered Head Tube – Providing a more secure ride in difficult terrain and assists in direct energy transfer.
Wet Paint Surface – multi-layer wet paint applied for weight saving.
Easy Mount Kickstand
Frame Safe system – Built with Frame Save System for added safety, allowing for easy replacement in the case of a crash.
Agile Ride Geometry

Increased fork offsets for generous toe clearance to the front wheel
Shortened chain stays without compromising the seat angle
BB height the same as 26” bikes for a more natural ride position.

Handy Information on purchasing an E-Bike as well as Information on Australian Legislation can be found here

ABOUT THE REACTION HYBRID SERIES:
ABOUT THE BOSCH PERFORMANCE LINE CX: SPECIFICATIONS:

FRAME	Aluminium Superlite, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
COLOR	grey´n´flashred
SIZE2	7.5: 14", 16", 18" // 29: 17", 19", 21", 23"
FORK	SR Suntour XCR32 RL-R Coil,100mm, Remote Lockout
HEADSET	FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
STEM	CUBE Performance Stem Pro, 31.8mm
HANDLEBAR	CUBE Rise Trail Bar, 680mm
GRIPS	CUBE Performance Grip
REAR DERAILLEUR	Shimano Deore RD-M610-SGS, 10-Speed
SHIFTERS	Shimano Deore SL-M610, Rapidfire-Plus
BRAKE SYSTEM	Shimano BR-M315, Hydr. Disc Brake (180/180)
CRANKSET	FSA CK-745, 15T
CASSETTE	Shimano CS-HG50, 11-36T
CHAIN	KMC X10-73
RIMS	CUBE EX21, 32H, Disc, Tubeless ready
FRONT HUB	Shimano HB-TX505, QR
REAR HUB	Shimano FH-TX505, QR
FRONT TIRE	Schwalbe Tough Tom, Active, 2.25
REAR TIRE	Schwalbe Rapid Rob, Active, 2.25
SADDLE	Selle Royal MTB
SEAT POST	CUBE Performance Post, 30.9mm
SEATCLAMP	CUBE Varioclose, 34.9mm
ENGINE	Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
BATTERY	Bosch PowerPack 500
Bosch	2A
DISPLAY	Bosch Intuvia
WEIGHT	20.9 kg

ENGINE SPECIFICATIONS: BOSCH PERFORMANCE CX LINE

Drive Unit:

	Gear shift detection	Support up to	Max. torque (Newton meters):	Weight
			TURBO (TU)
			SPORT (SP)
			TOUR (TO)
			ECO (EC)
Performance Cruise	yes	25 km/h	TU: 60	< 4 kg
25 km/h			SP: 55
Chain			TO: 50
			EC: 40
Performance CX	yes	25 km/h	TU: 75	< 4 kg
25 km/h	(dynamic)		SP: 60
Chain			TO: 50
			EC: 40

Display:

	Riding mode
Turbo	Direct, powerful support up to maximum cadence for ambitious and athletic riding
Sport	Immediate, powerful support for athletic riding off road and in city traffic
Tour	Steady support for long tours
Eco	Effective support at maximum efficiency for maximum range
Off	No support, all cycle computer functions are available

Battery:

	PowerPack 300	PowerPack 400	PowerPack 500
Mount type	Frame battery / rack battery	Frame battery / rack battery	Frame battery / rack battery
Voltage (V)	36 V	36 V	36 V
Capacity (Ah)	8.2 Ah	11 Ah	13.4 Ah
Energy content (Wh)	300 Wh	400 Wh	500 Wh
Weight (kg)	2.0 / 2.4 kg	2.5 kg / 2.6 kg	2.6 kg / 2.7 kg

Charging:

Charging time (at 4A)	50% charge	80% charge	100% charge
PowerPack 400	1.5 h	2 h	3.5 h
PowerPack 500	2 h	3 h	4.5 h

COMPONENTS SUMMARY:

Bosch CX drive. With up to 75Nm it'll really get you going, even for extended periods of pedalling at higher speeds - useful for tough climbs.
The large capacity 400Wh battery has plenty of reserves of power, but you can specify your Reaction HPA Hybrid Pro with the optional 500Wh battery for even greater range.
Shimano's 10-speed Deore transmission delivers precise and easy gear shifting with a wide gear range, while the hydraulic BR-M315 disc brakes with 180mm rotors will bring you to a halt reliably, even in wet weather.
A comfy ride position is guaranteed by the CUBE cockpit components, while Suntour's coil spring XRC32 fork with remote lockout smoothes things out on even the bumpiest of roads or trails.

Specifications

*Please note: bike specifications are subject to change by the manufacturer without notice. These changes may not be reflected in product info and images.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike.
